STC - 81

Component Inspection [ABS Actuator and Electric Unit (Control Unit)]

1.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

1. Turn the ignition switch OFF.
2. Remove ABS actuator and electric unit (control unit). Exploded View

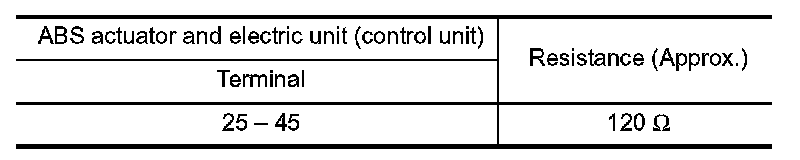

3. Check the resistance between ABS actuator and electric unit (control unit) connector terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace ABS actuator and electric unit (control unit).
