Inspection Without 4WAS

LOWER SHAFT

WITHOUT 4WAS : Inspection






- Check the sliding range of the lower shaft.

CAUTION:

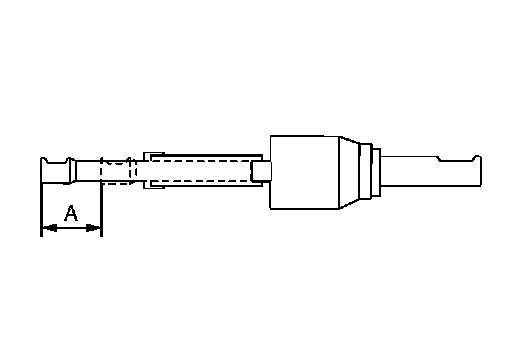

Check the sliding range (A) (between the extended position and the contracted position) of the lower shaft.


Standard
Sliding range (A): Lower Shaft Sliding Range.
- Check each part of lower shaft for damage or other malfunctions.
Replace if there are.
