Push-Button Ignition Switch

PUSH-BUTTON IGNITION SWITCH

Description

BCM transmits the change in the power supply position with the push-button ignition switch to IPDM E/R via the CAN communication line. IPDM E/R transmits the power supply position status via CAN communication line to BCM.


Component Function Check


1. CHECK FUNCTION

1.Select "PUSH SW" in "Data Monitor" mode with CONSULT.

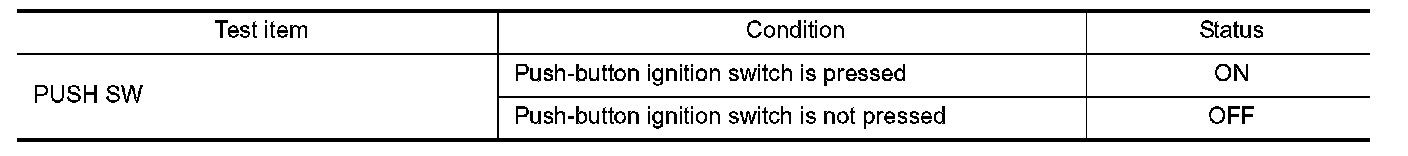

2.Check the push-button ignition switch signal under the following condition.





Is the indication normal?
YES- INSPECTION END
NO- Go to .


Diagnosis Procedure


1. CHECK PUSH-BUTTON IGNITION SWITCH OPERATION

Press push-button ignition switch and check if it turns to ON.
Does ignition switch turn to ON?
YES- GO TO 2.
NO- GO TO 4.

2. CHECK IGNITION SWITCH OUTPUT SIGNAL (IPDM E/R)

1.Disconnect push-button ignition switch connector.

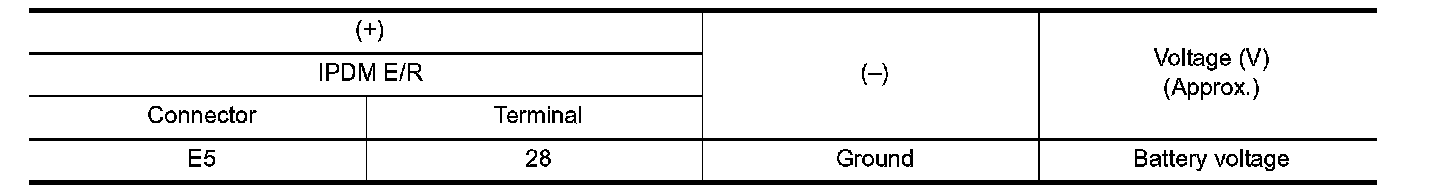

2.Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Replace IPDM E/R. Removal and Installation.

3. CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (IPDM E/R)

1.Disconnect IPDM E/R connector and BCM connector.

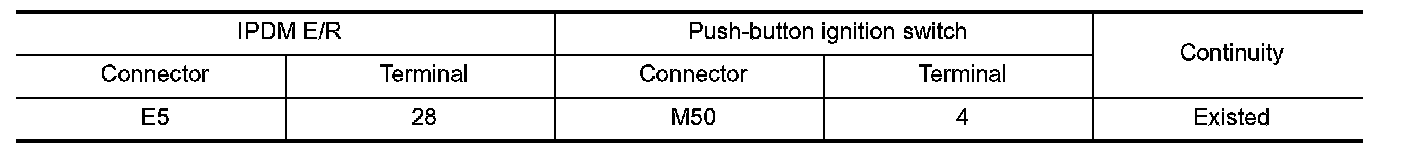

2.Check continuity between IPDM E/R harness connector and push-button ignition switch harness connector.

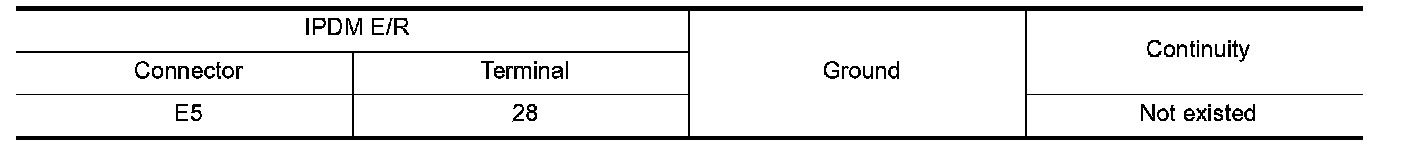

3.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness or connector.

4. CHECK IGNITION SWITCH OUTPUT SIGNAL (BCM)

1.Disconnect push-button ignition switch connector.

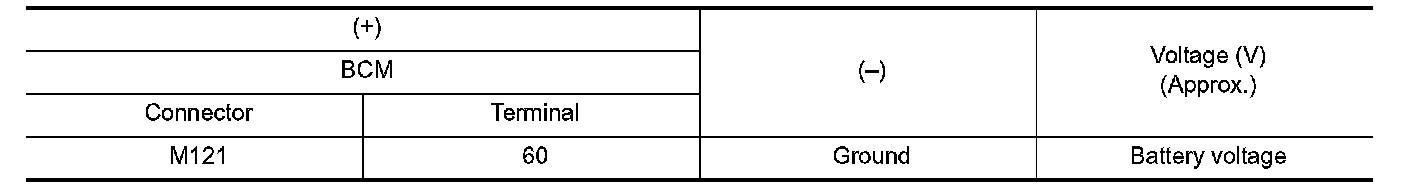

2.Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Replace BCM. Removal and Installation.

5. CHECK PUSH-BUTTON IGNITION SWITCH CIRCUIT (BCM)

1.Disconnect BCM connector and IPDM E/R connector.

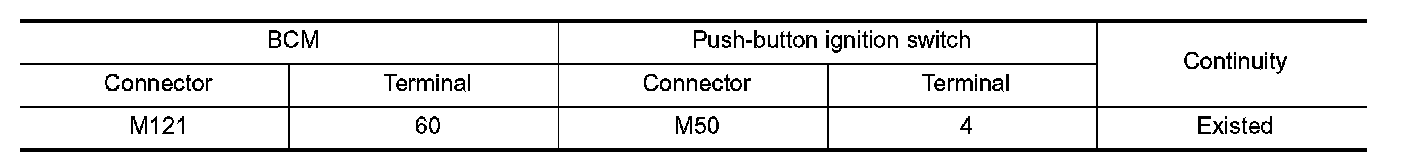

2.Check continuity between BCM harness connector and push-button ignition switch harness connector.

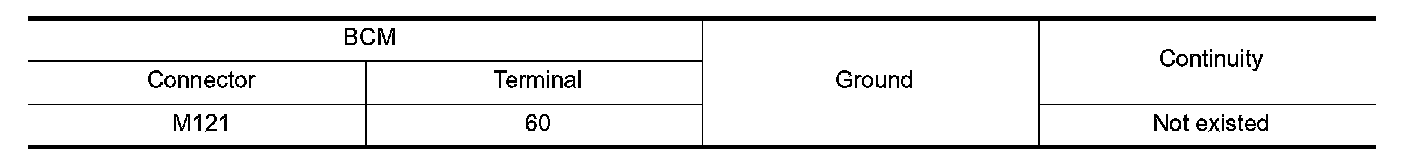

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness or connector.

6. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END


Component Inspection


1. CHECK PUSH-BUTTON IGNITION SWITCH

1.Turn ignition switch OFF.
2.Disconnect push-button ignition switch connector.

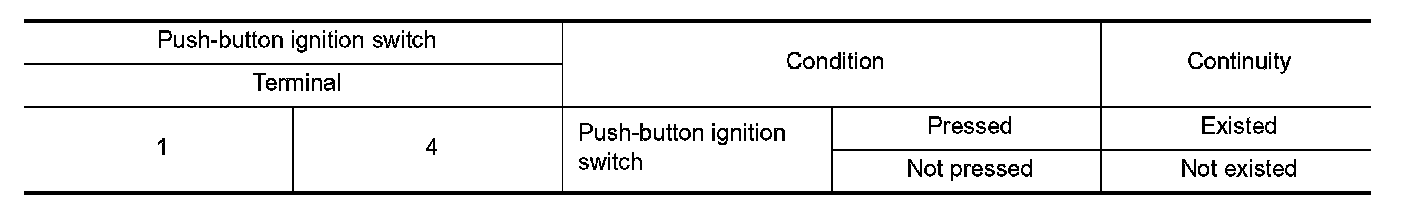

3.Check continuity between push-button ignition switch terminals.





Is the inspection result normal?
YES- INSPECTION END.
NO- Replace push-button ignition switch. Removal and Installation.
