Power Window Switch: Service and Repair

POWER WINDOW MAIN SWITCH

Removal and Installation


REMOVAL

1.Remove the door finisher.
Removal and Installation.

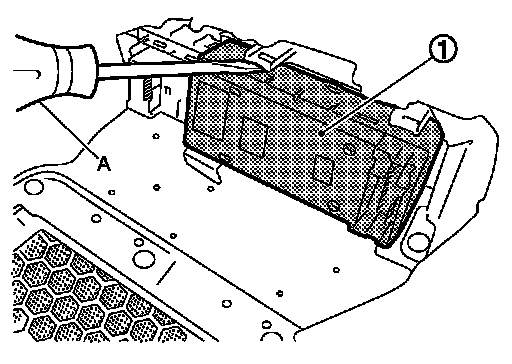

2.Power window main switch (1) is removed from door finisher using remover tool (A).






CAUTION:
Do not fold the pawl of power window main switch finisher.
NOTE:
The same procedure is also performed for power window subswitch.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Power window main switch is exchanged or is detached it is necessary to do the initialization procedure.
Special Repair Requirement.
