Electrical Diagrams

TRUNK LID OPENER

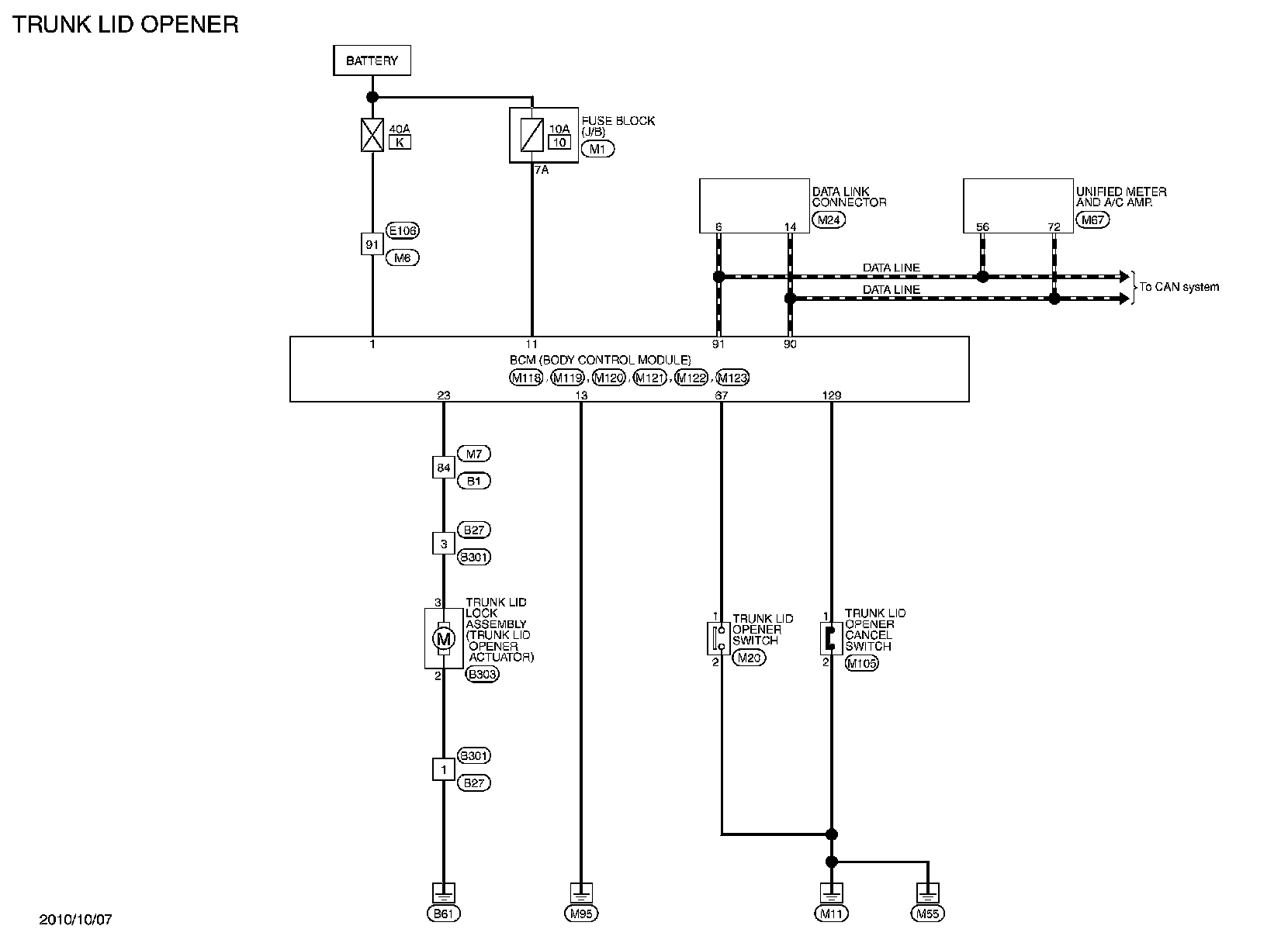

Wiring Diagram - TRUNK LID OPENER

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
