DIAGNOSIS SYSTEM (AIRBAG)
CONSULT Function

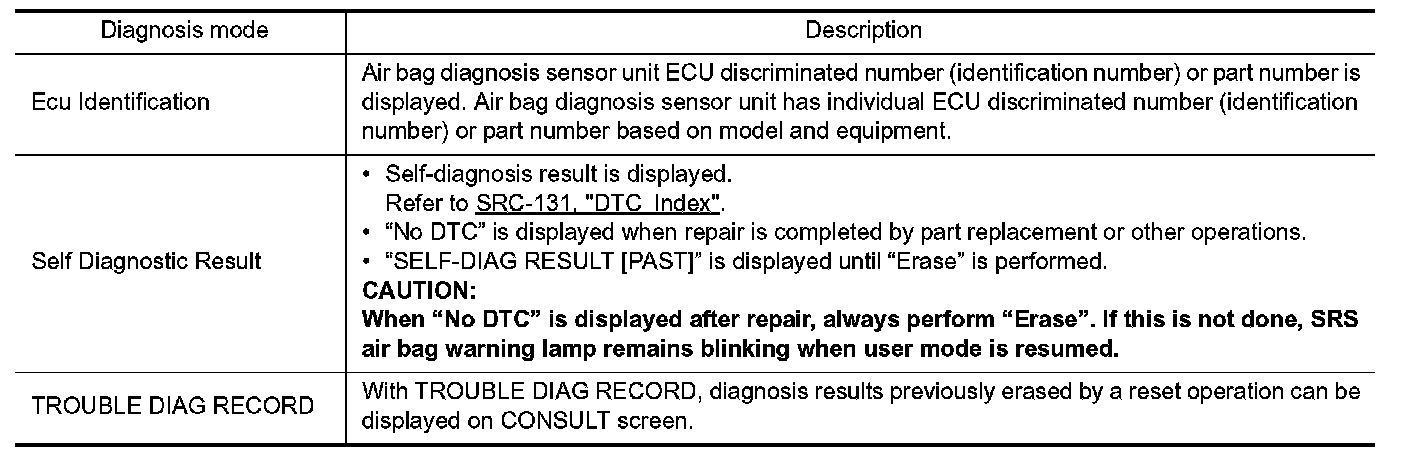

APPLICATION ITEM
CONSULT performs the following functions.
