System Description

OCCUPANT CLASSIFICATION SYSTEM

System Description


THIS OCCUPANT CLASSIFICATION SYSTEM HAS THE FOLLOWING FUNCTIONS

1.Suppress the deployment of front passenger air bag when front passenger seat is empty, or when occupied by child and child-seat. Turns ON front passenger air bag OFF indicator when front passenger seat is occupied by child-seat and child.
2.Indicates malfunction portion with blinking times of air bag warning lamp in diagnosis mode.
3.Indicates the malfunctioning record by CONSULT.
NOTE:

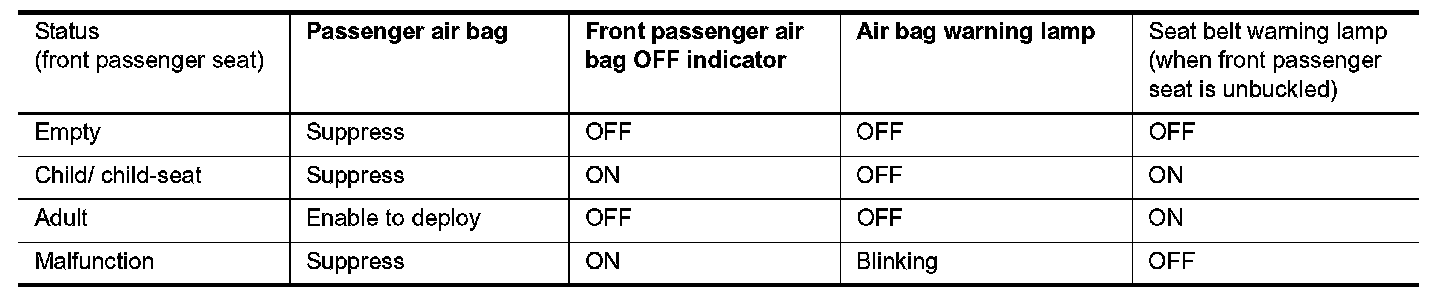

Operation of air bag diagnosis sensor unit when air bag diagnosis sensor unit receives information from Occupant Classification System.
