Removal and Installation

4WAS MAIN CONTROL UNIT

Removal and Installation


REMOVAL

1.Turn the ignition switch OFF.
2.Remove the rear wheel house finisher. Exploded View.
3.Disconnect 4WAS main control unit connectors, 4WAS rear motor relay connector and noise suppressor connectors.

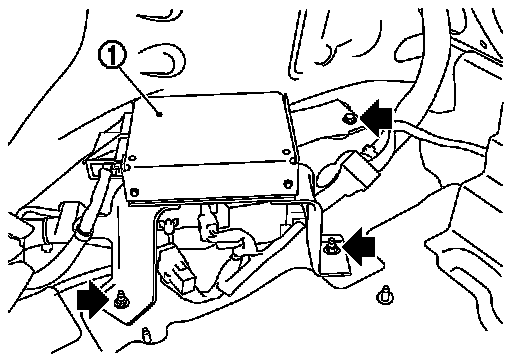

4.Remove the 4WAS main control unit bolt and nuts.
5.Remove the 4WAS main control unit (1).

INSTALLATION

Install in the reverse order of removal.
