Shift Pattern Control ASC (Adaptive Shift Control)

SHIFT PATTERN CONTROL

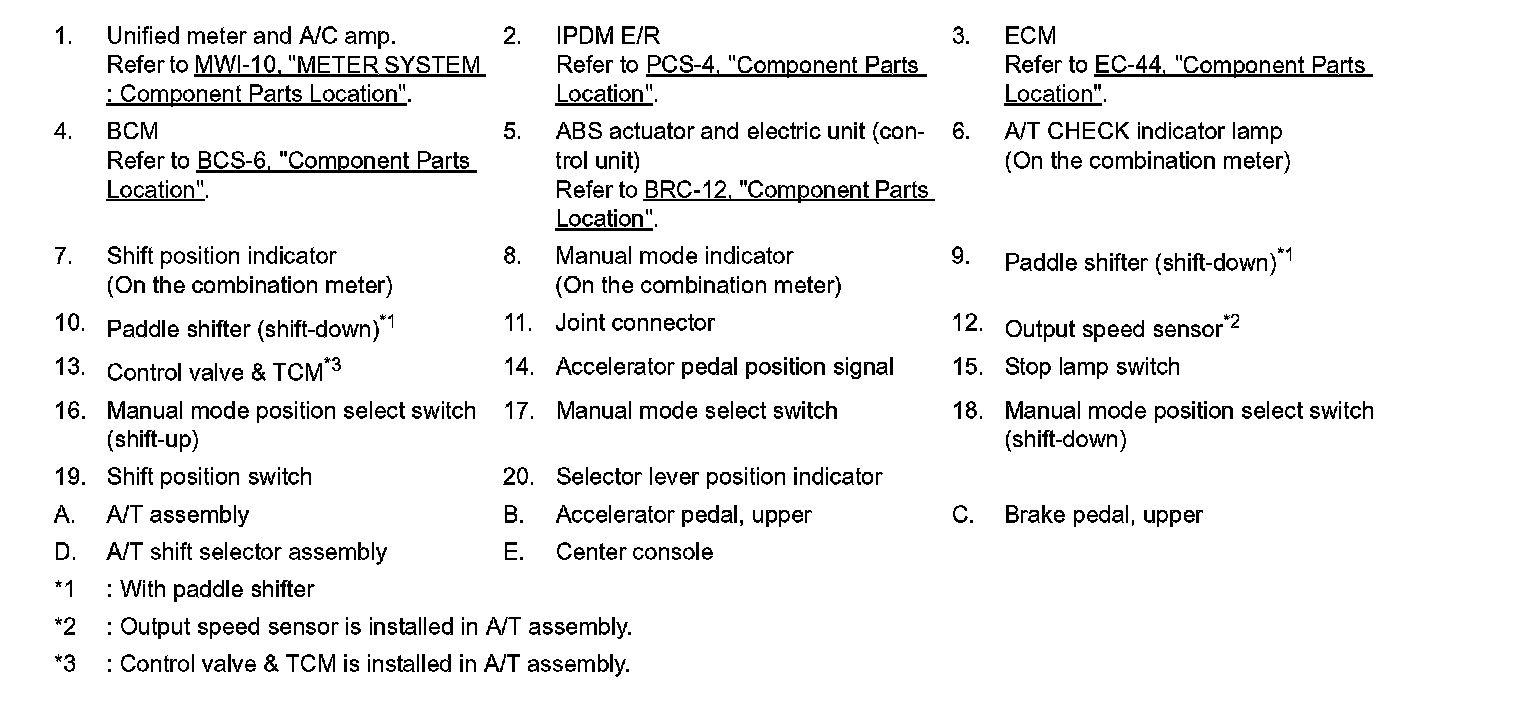

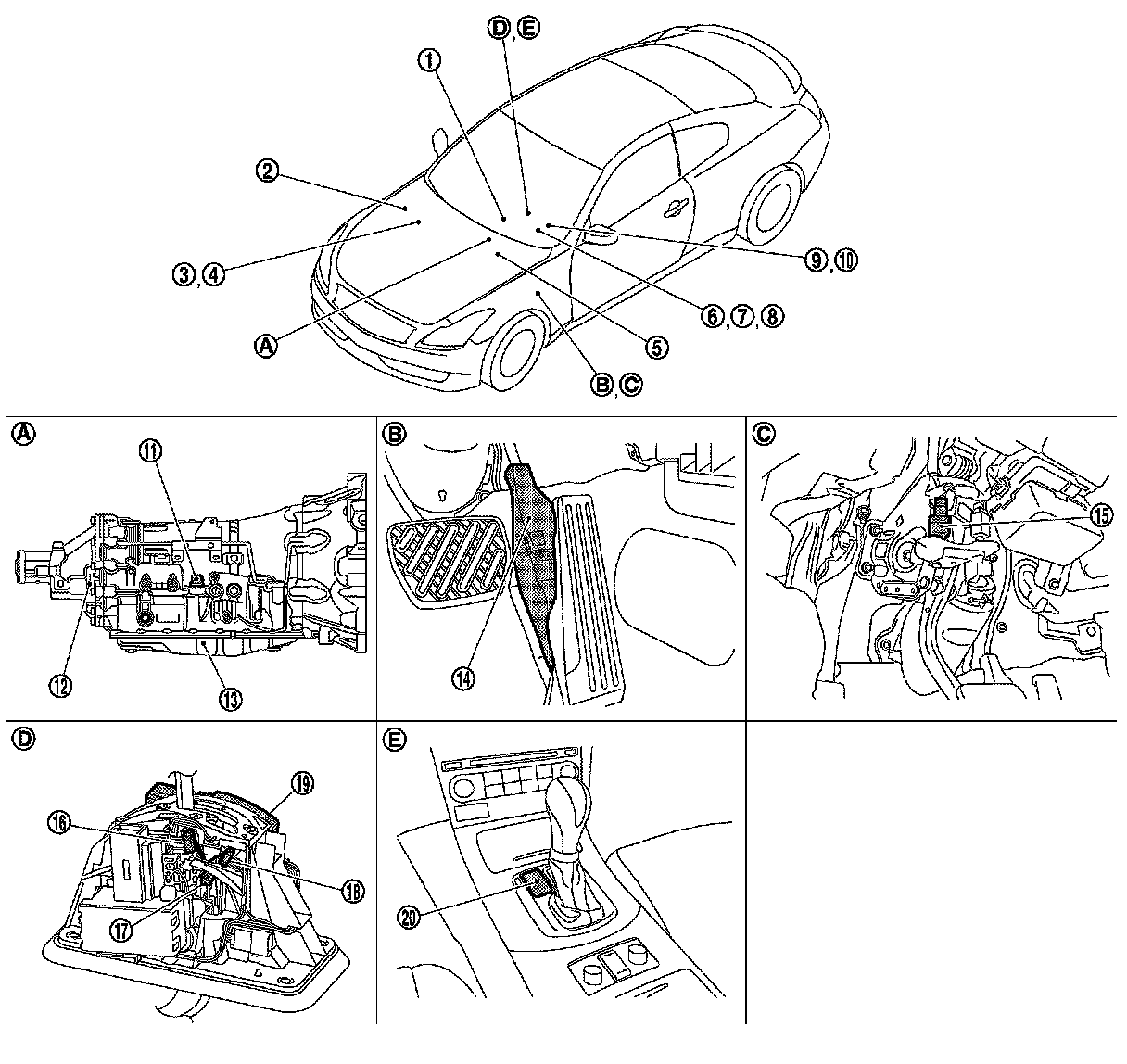

ASC (ADAPTIVE SHIFT CONTROL) : Component Parts Location











NOTE:
The following components are included in control valve & TCM (13).
- TCM
- Input speed sensor 1, 2
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
