Air Conditioning Cut Control
>>

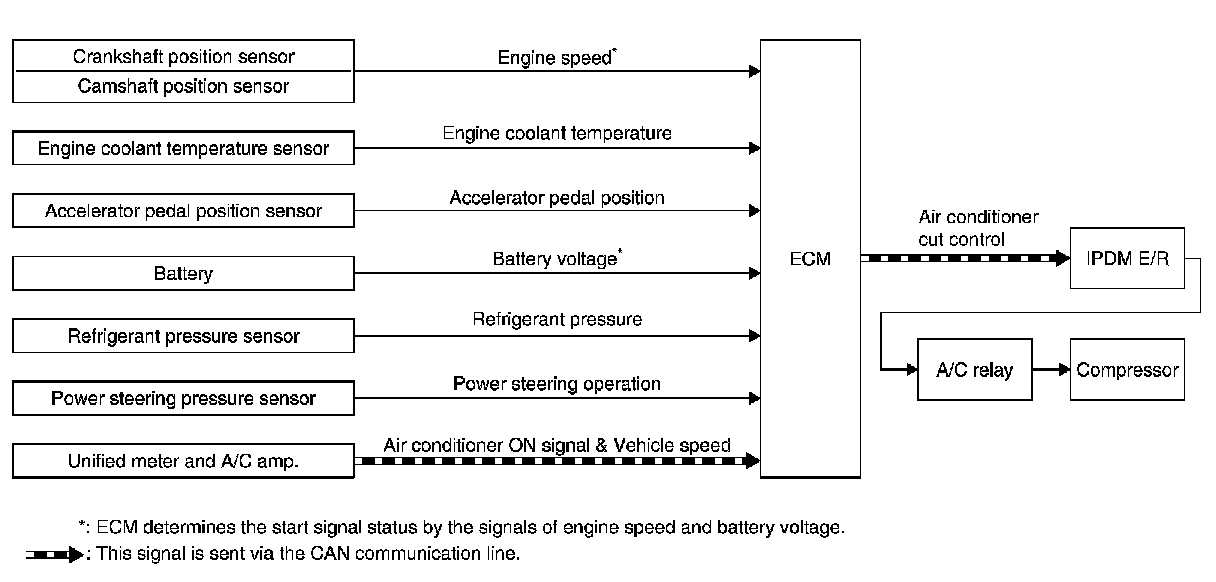

System Diagram
>>
For Mexico
For Mexico
AIR CONDITIONING CUT CONTROL
System Diagram
