Removal and Installation

TRUNK ROOM LAMP

Removal and Installation


CAUTION:
Disconnect the battery negative terminal or remove the fuse.

REMOVAL

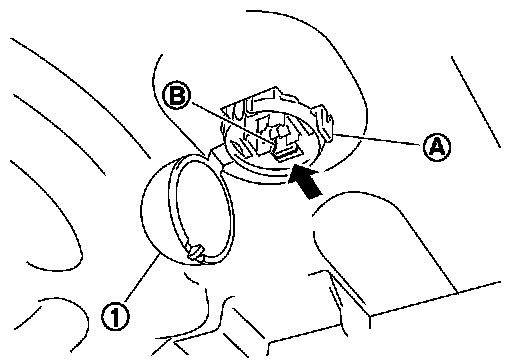

1.Widen the pawl (A). Open the lens (1).
2.Remove the bulb.
3.Pressing the pawl (B) to the arrow direction (black arrow). Pull out the trunk room lamp.
4.Disconnect the connector.
5.Remove the trunk room lamp.

INSTALLATION

Install in the reverse order of removal.
