Daytime Running Lamp Relay: Locations




PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

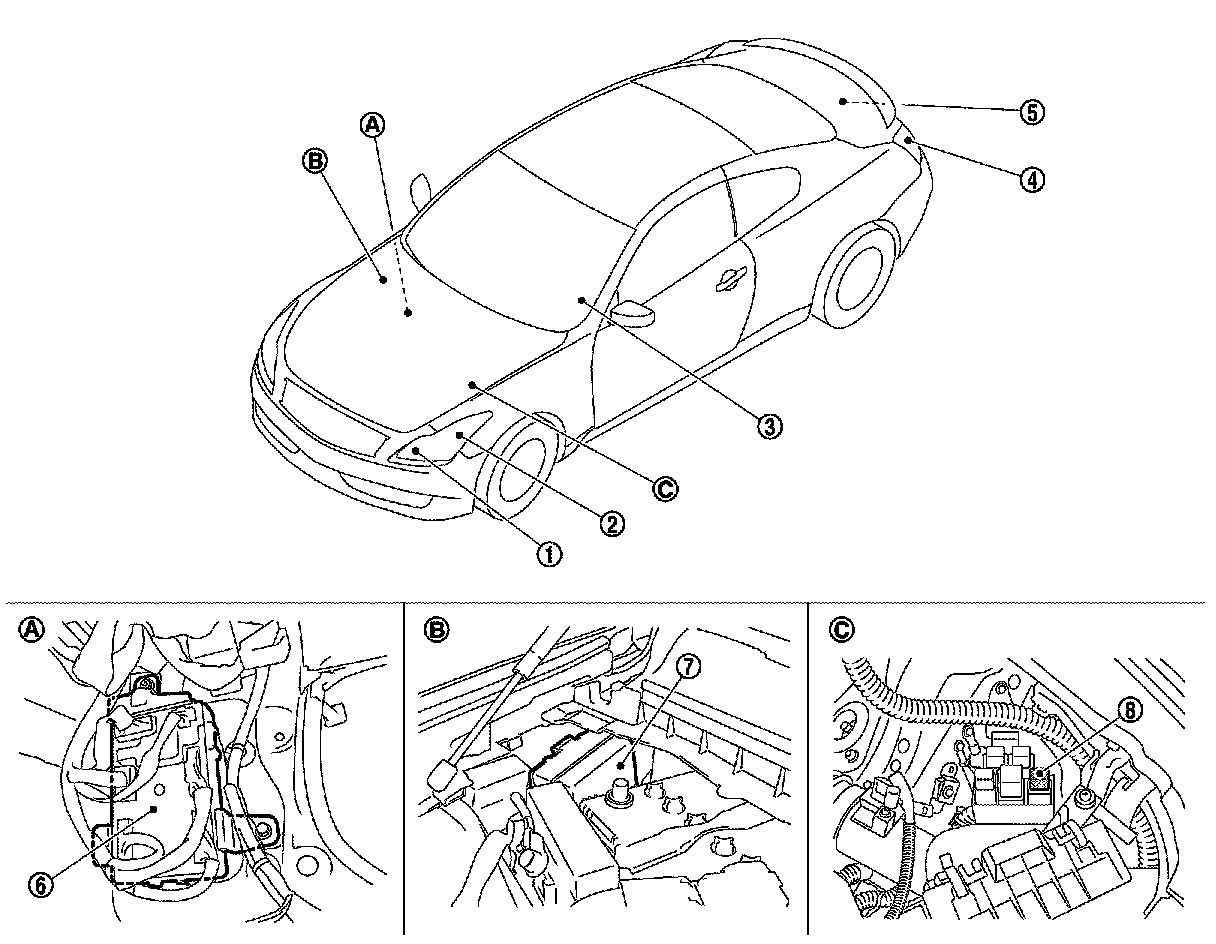

Component Parts Location

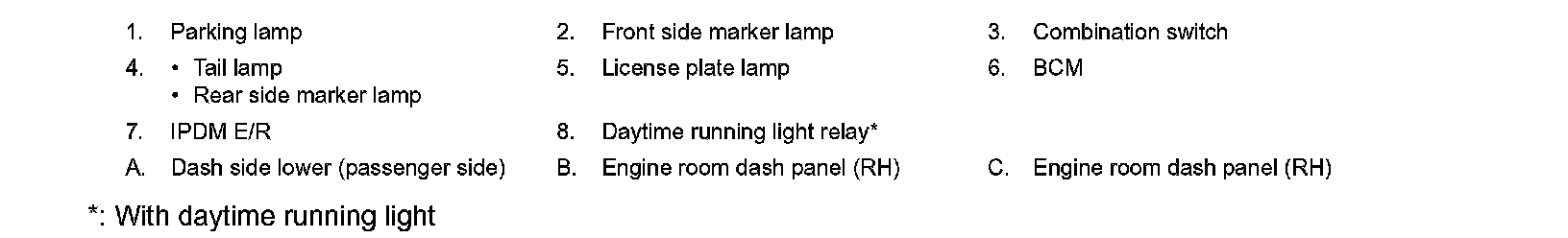

*: With daytime running light
