Consult Function (Meter/M&A)

DIAGNOSIS SYSTEM (UNIFIED METER AND A/C AMP.)

CONSULT Function (METER/M&A)

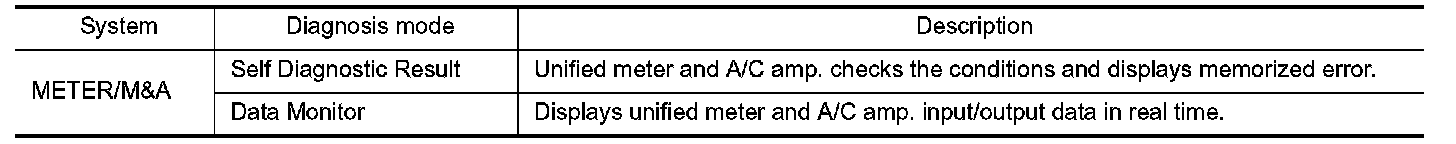

CONSULT APPLICATION ITEMS

CONSULT can perform the following diagnosis modes with CAN communication with the unified meter and A/
C amp.






SELF DIAG RESULT

Testing and Inspection.

DATA MONITOR

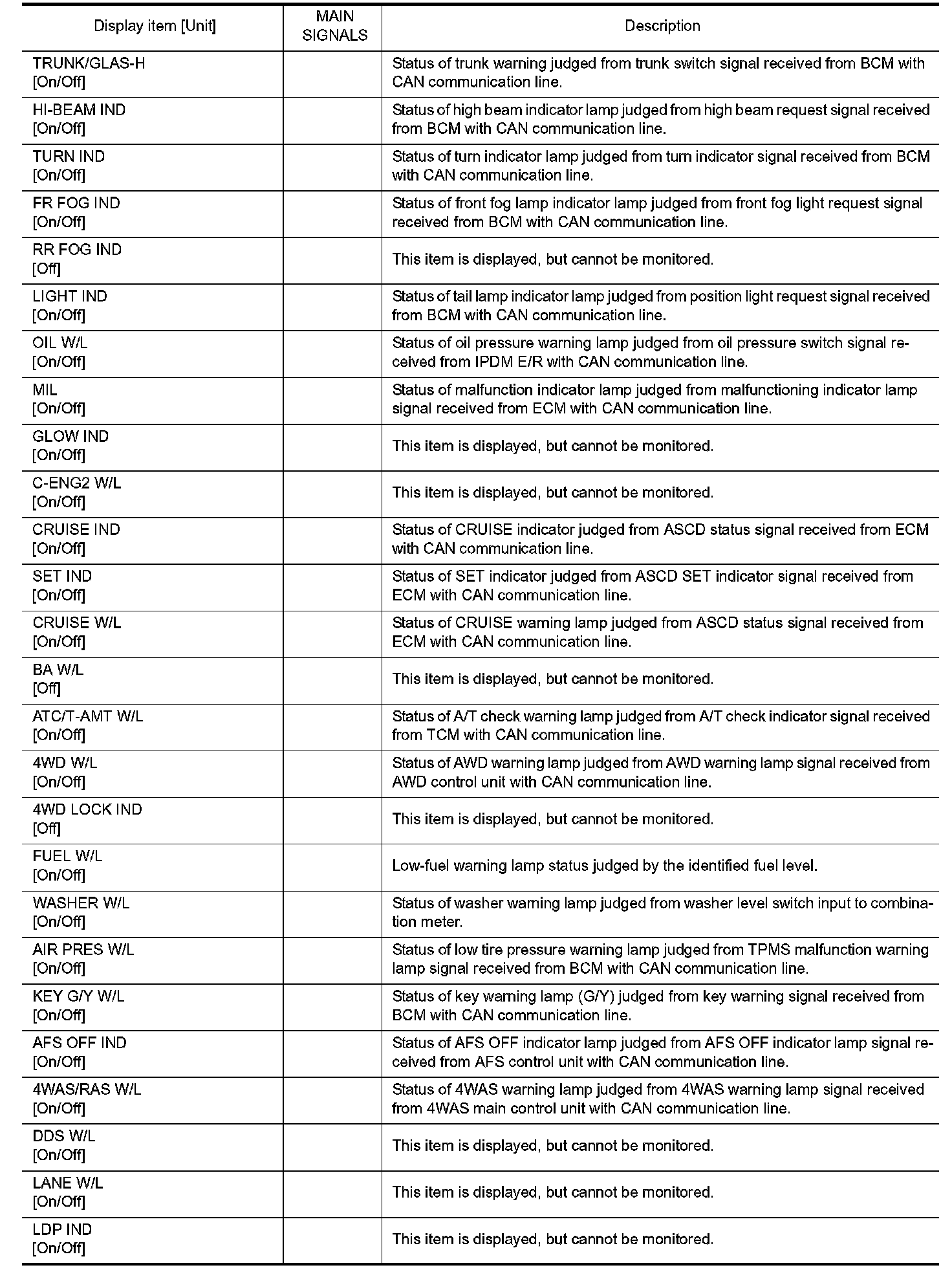

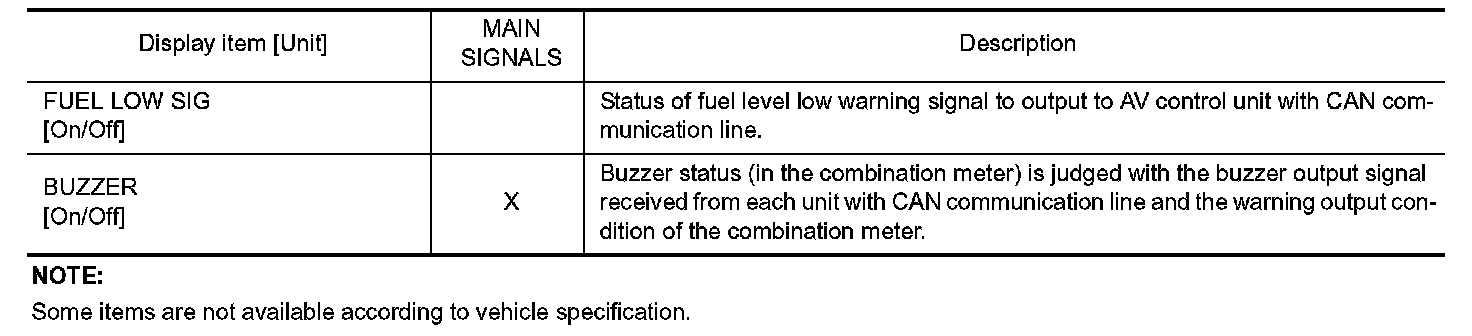

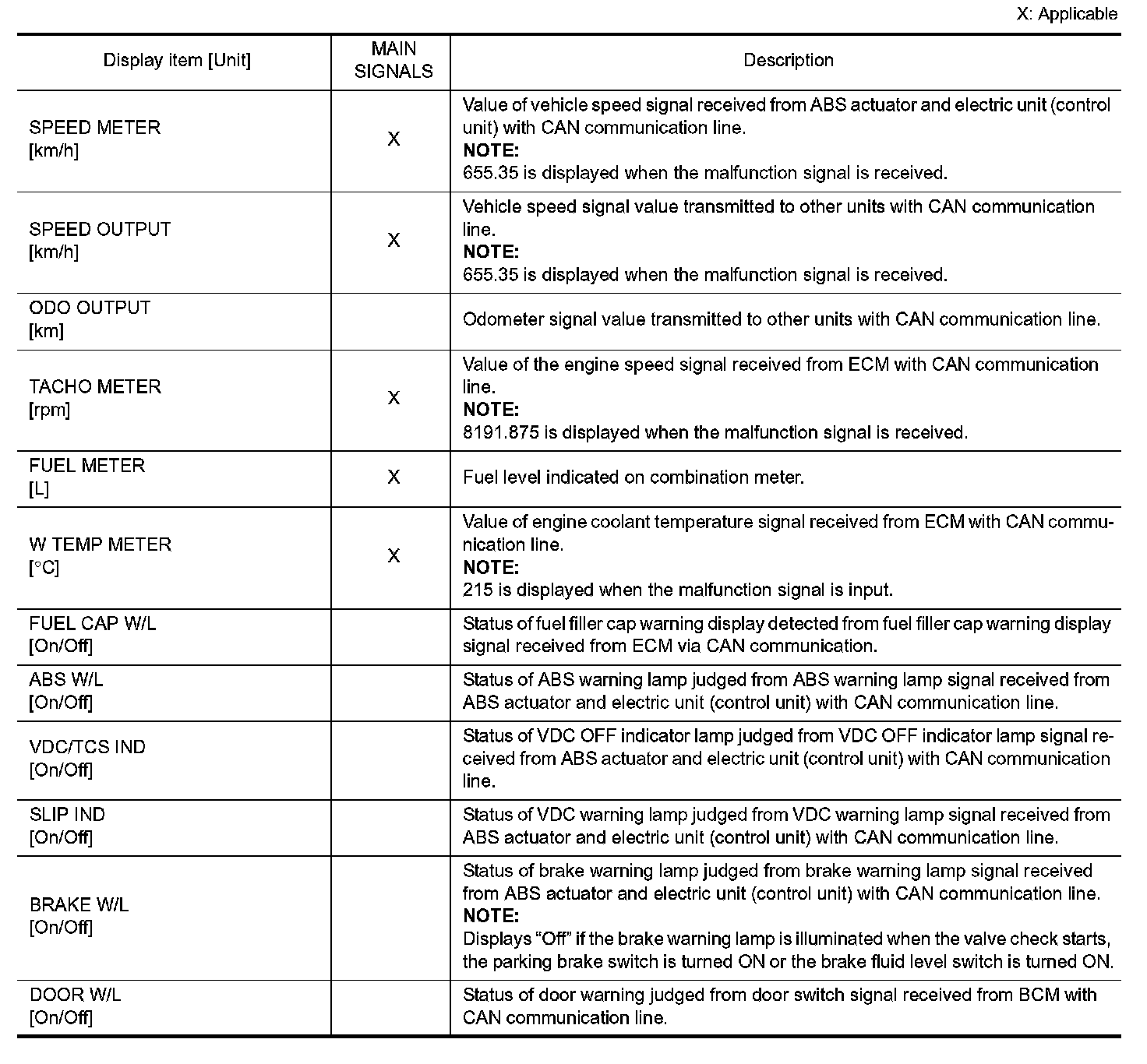

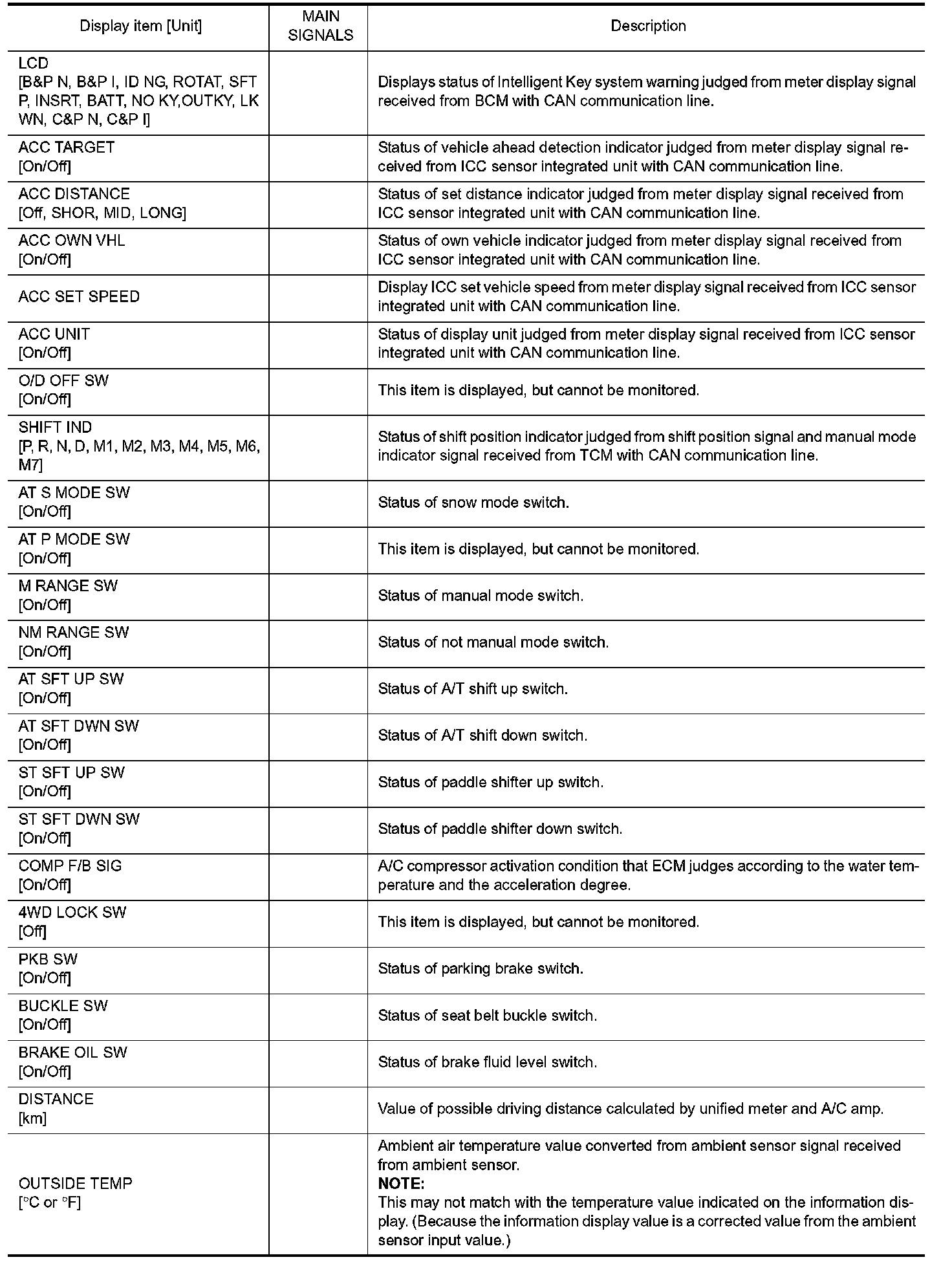

Display Item List
X: Applicable
