Unified Meter and A/C Amp




UNIFIED METER AND A/C AMP.

Reference Value

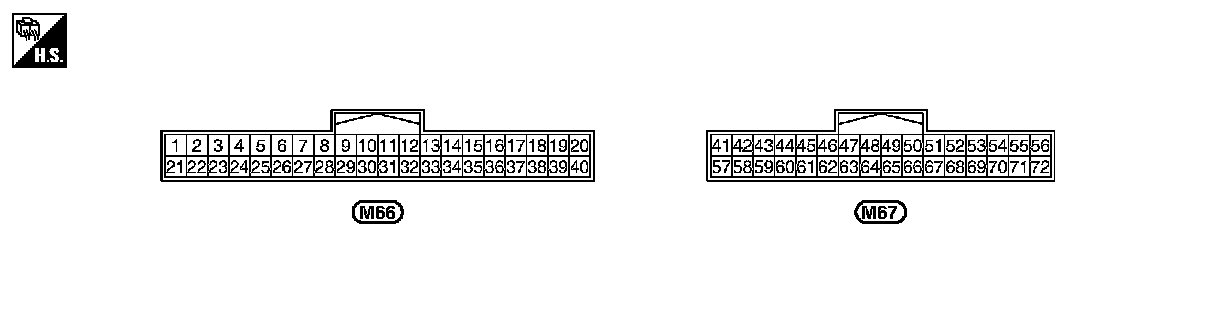

TERMINAL LAYOUT

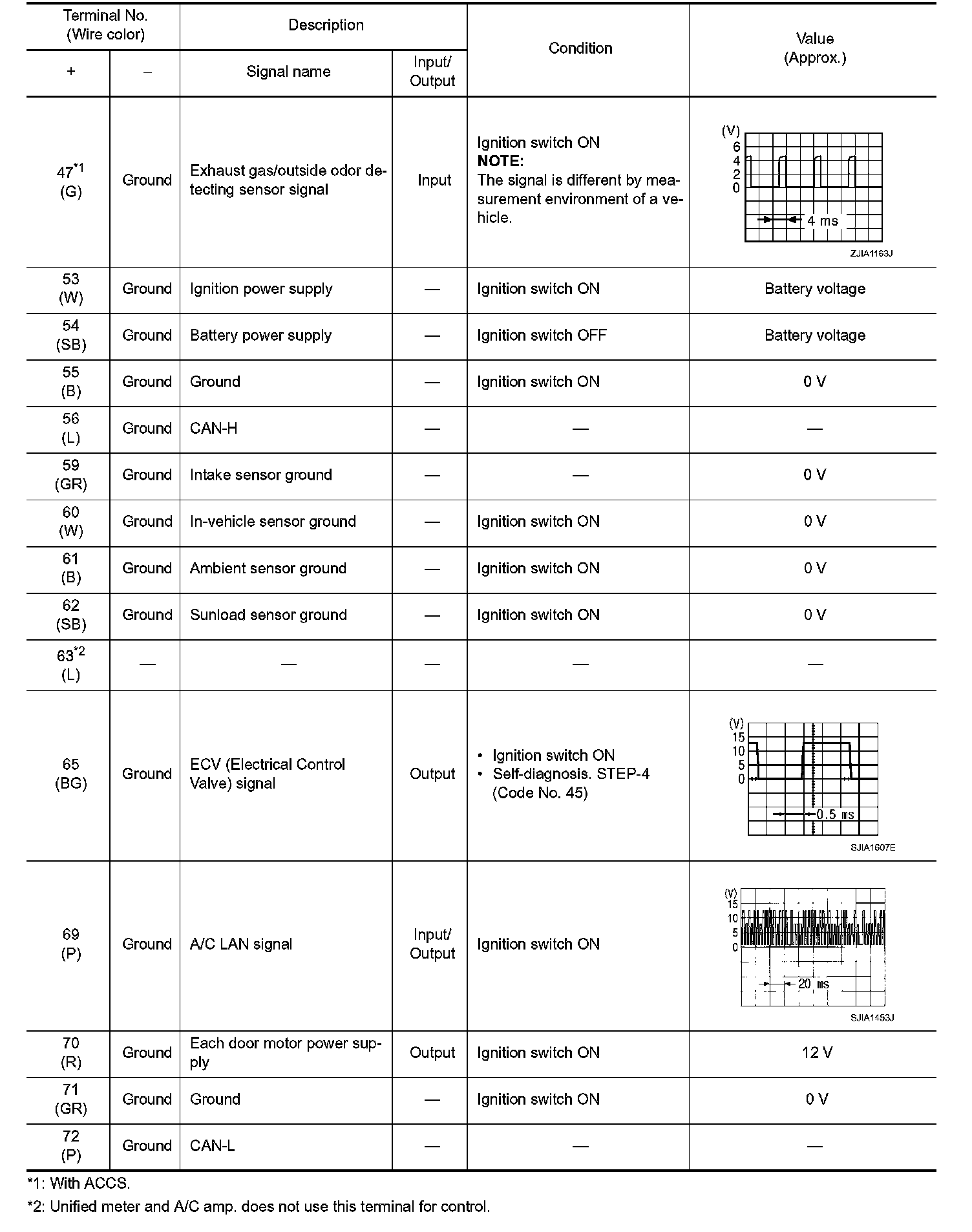

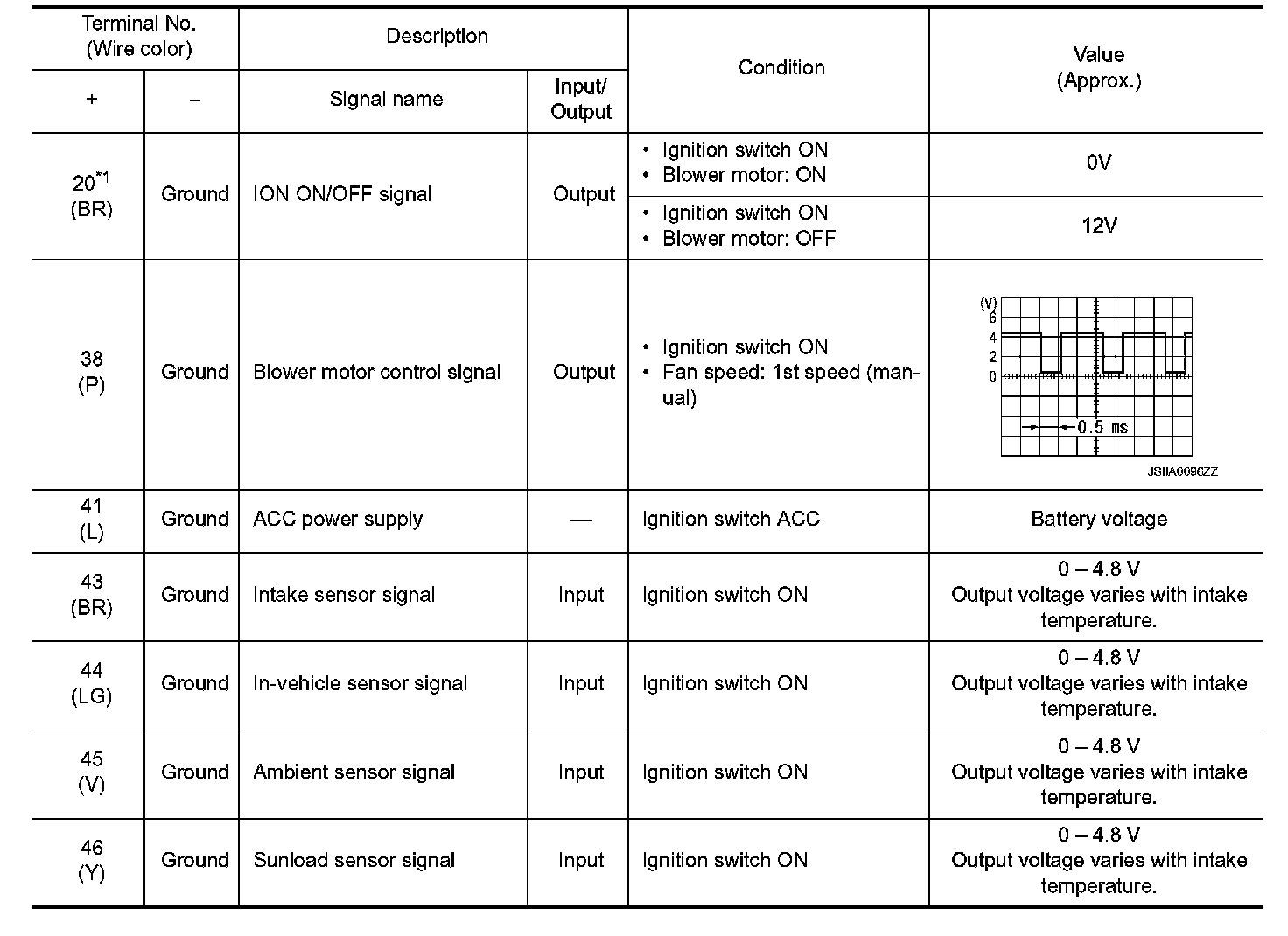

PHYSICAL VALUES
