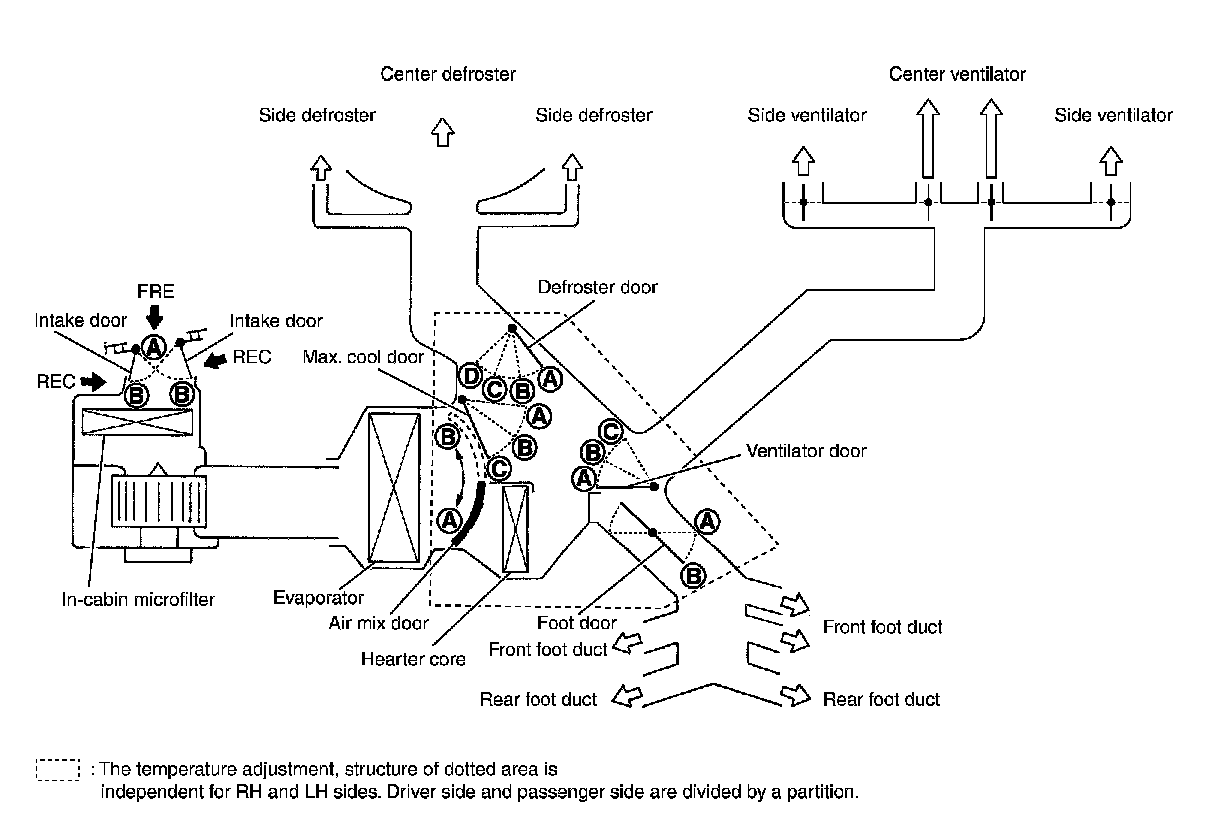

With Left and Right Ventilation Temperature Separately Control System

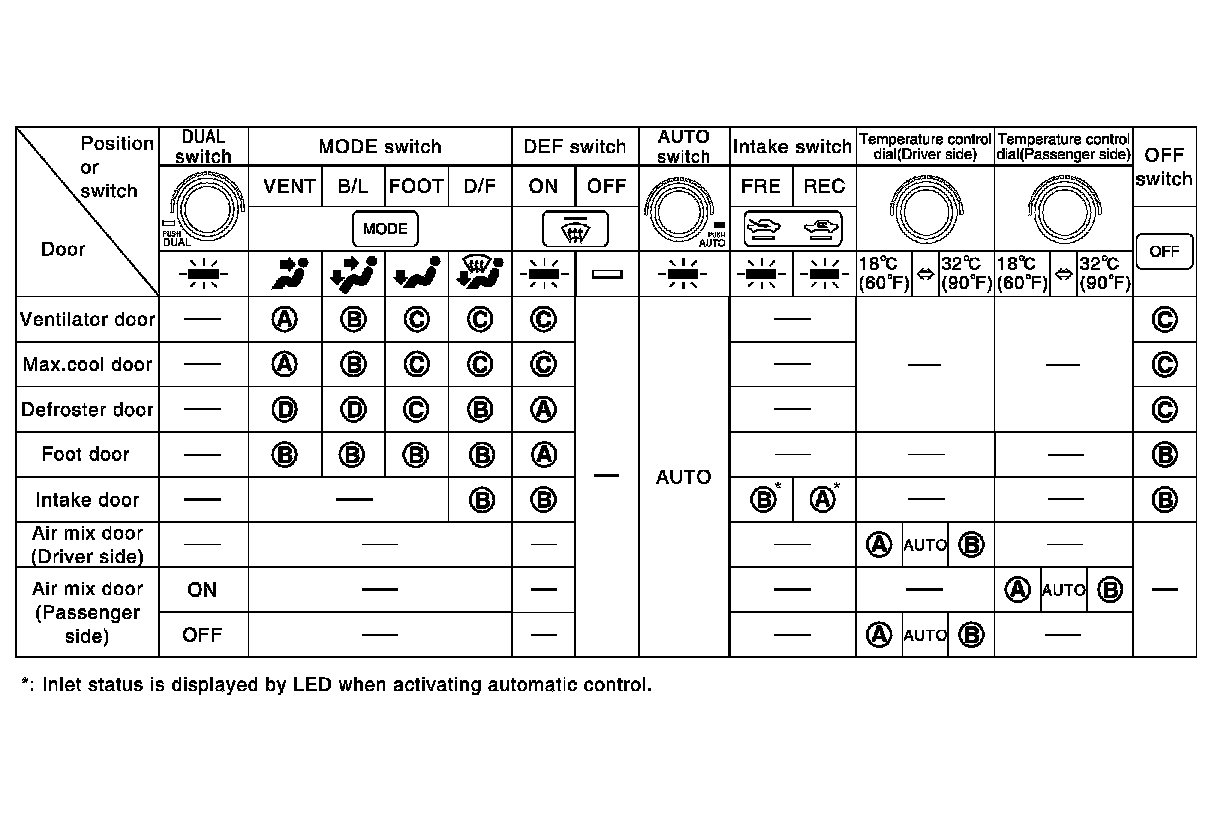

SWITCHES AND THEIR CONTROL FUNCTION

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Description
