With Left and Right Ventilation Temperature Separately Control System

AUTOMATIC AIR CONDITIONING SYSTEM

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Diagram


CONTROL SYSTEM

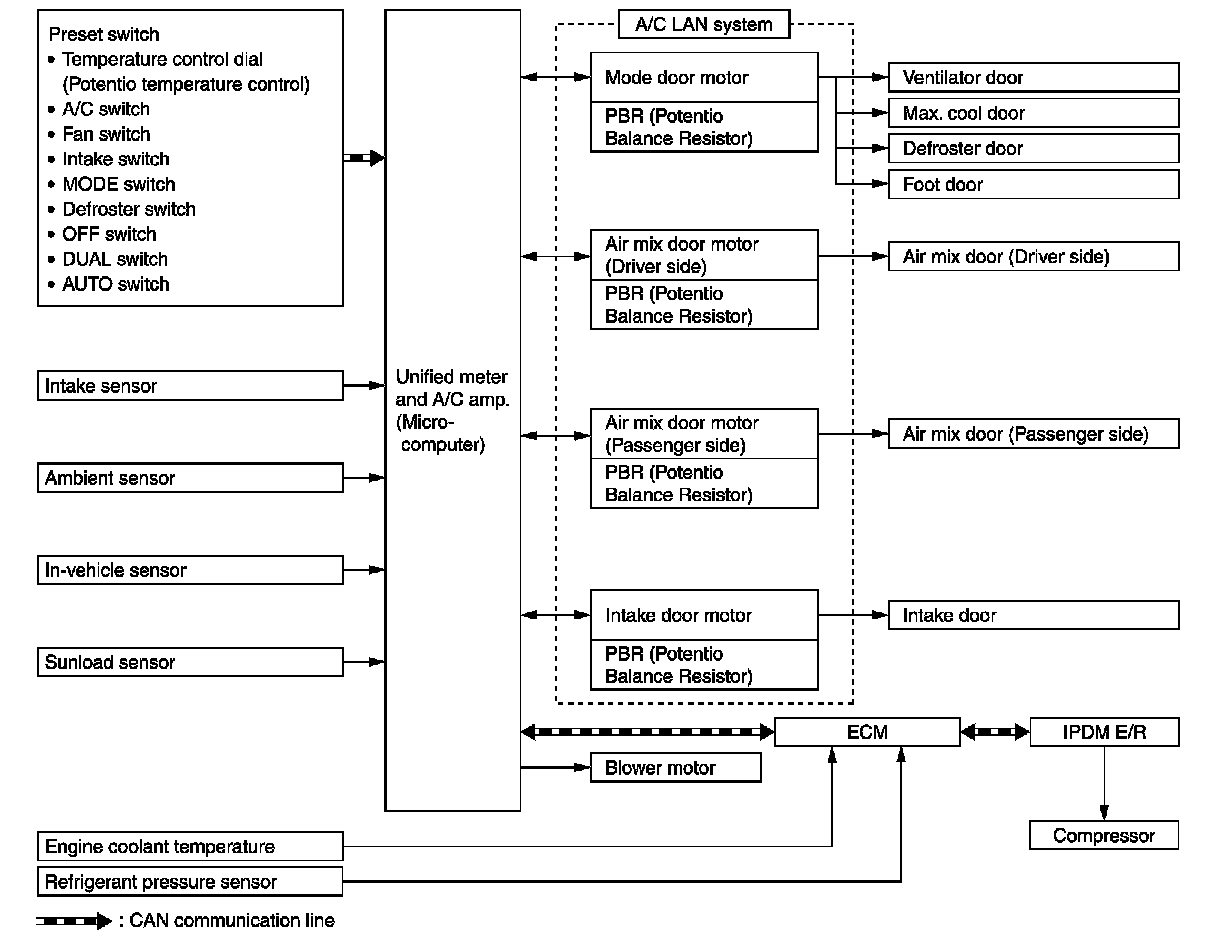

The control system consists of input sensors, switches, unified meter and A/C amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:
