With Rear View Camera

BASE AUDIO WITH REAR VIEW CAMERA

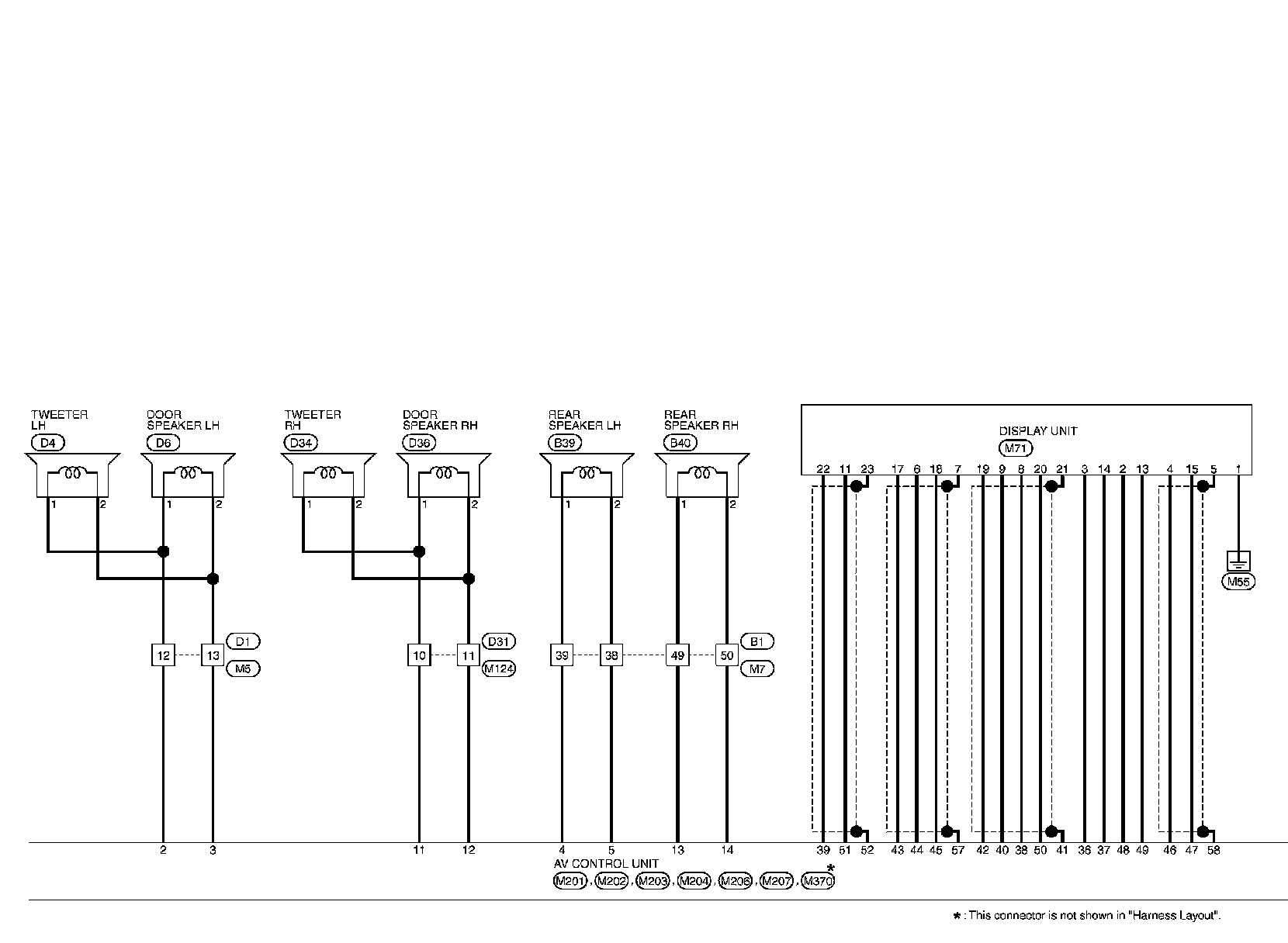

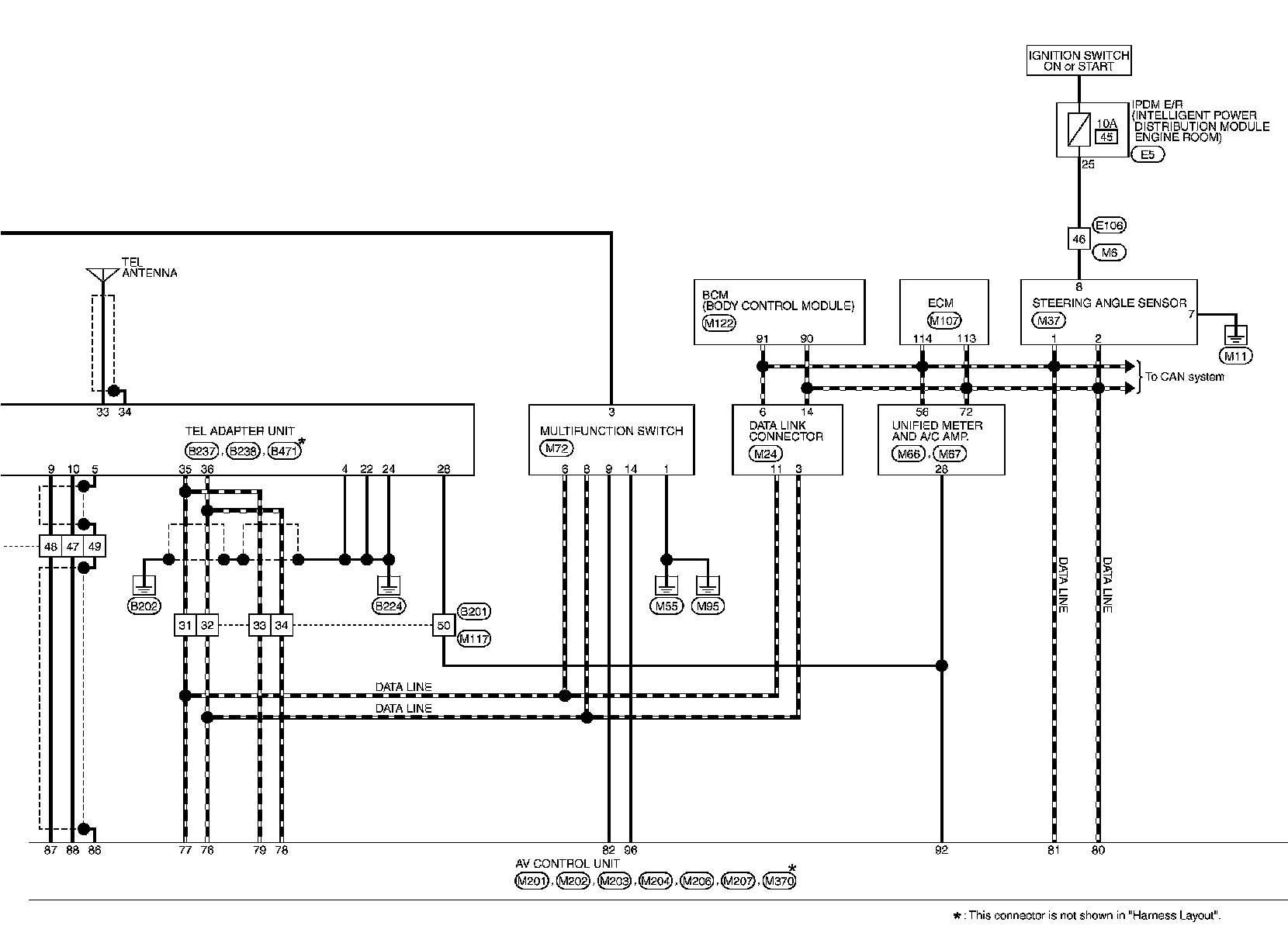

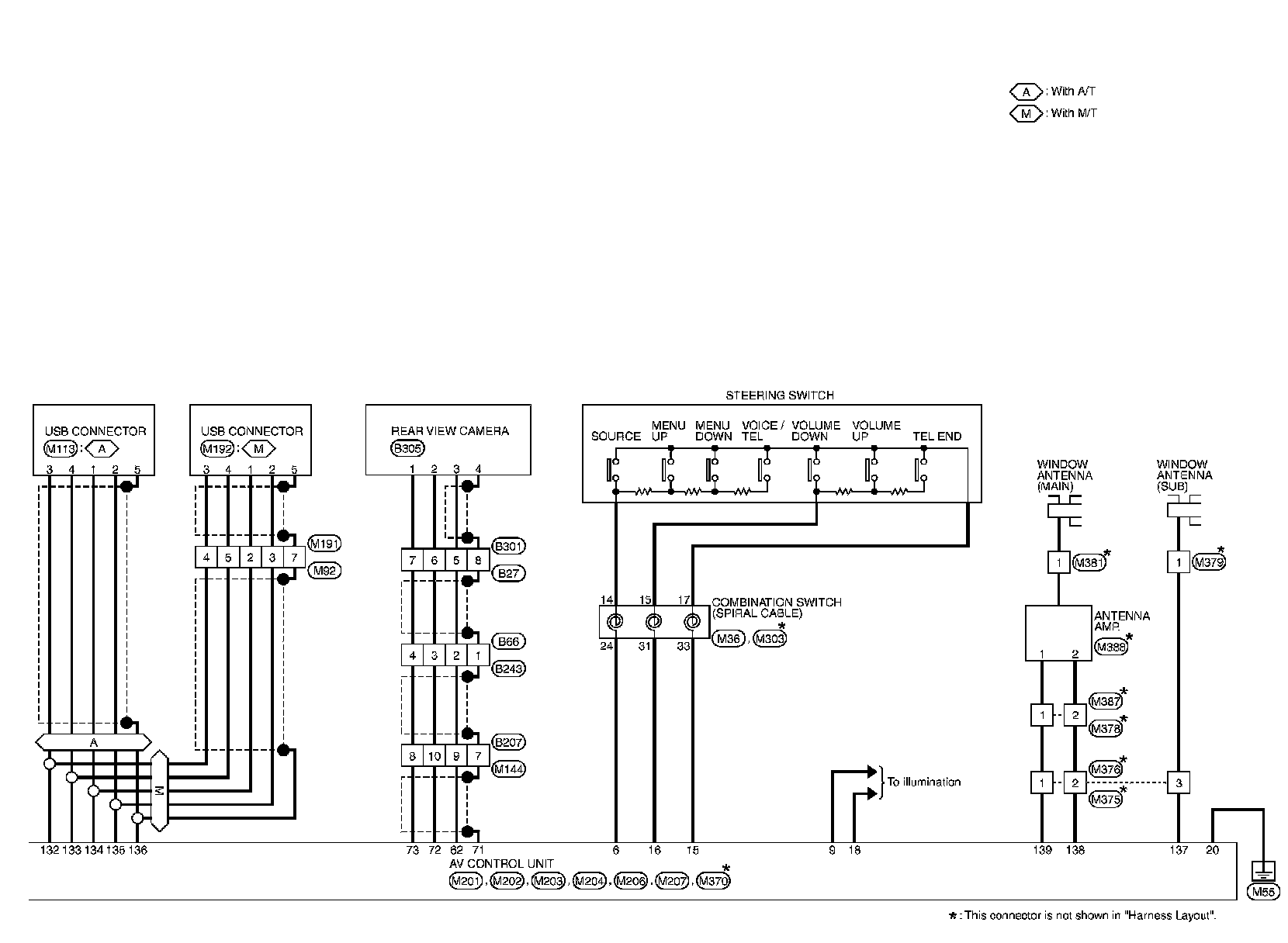

Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a(option abbreviation; if not described in wiring diagram), Connector Information.
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
