Meter, Warning Lamp & Indicator

UNIFIED METER AND A/C AMP.

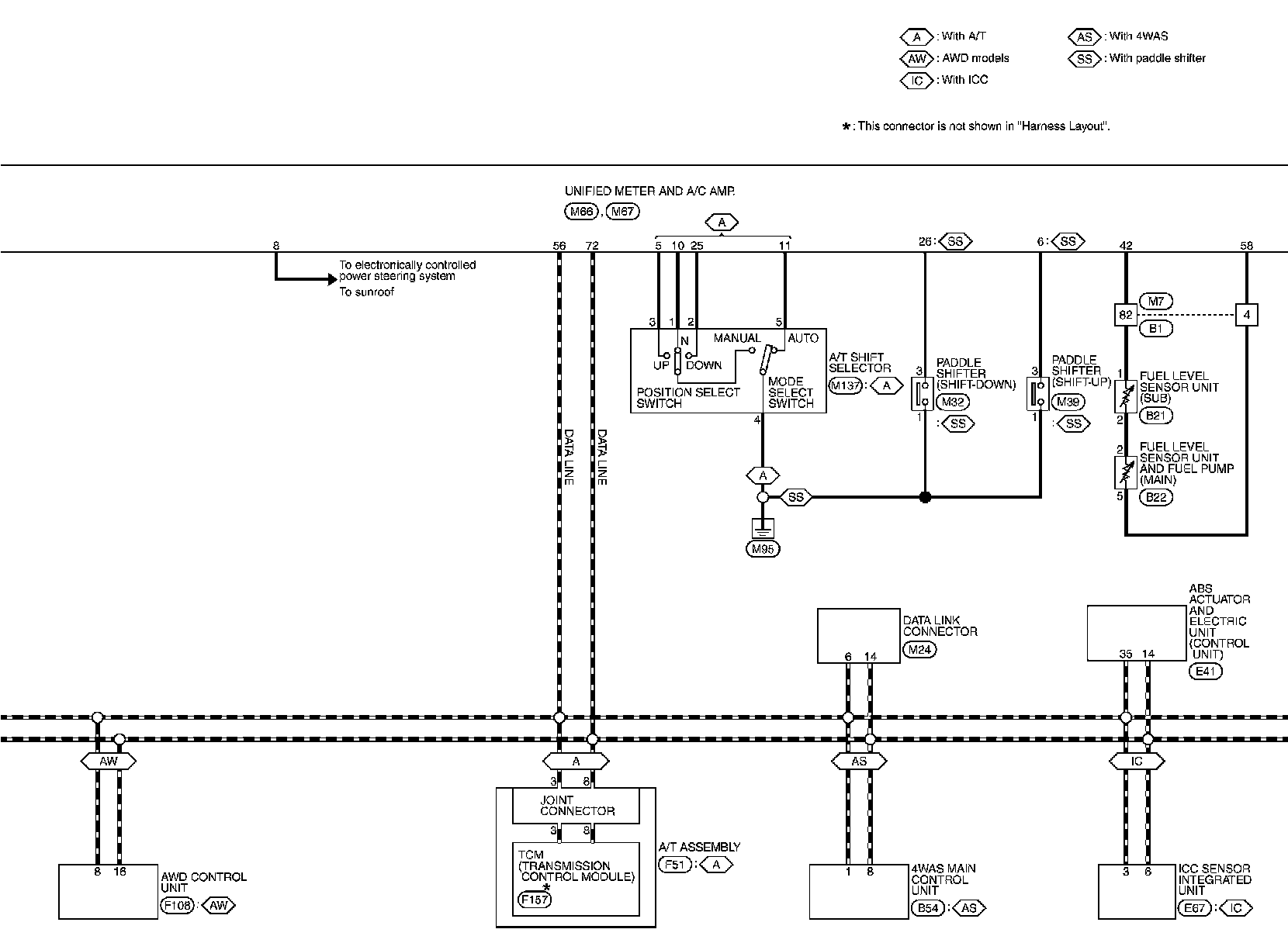

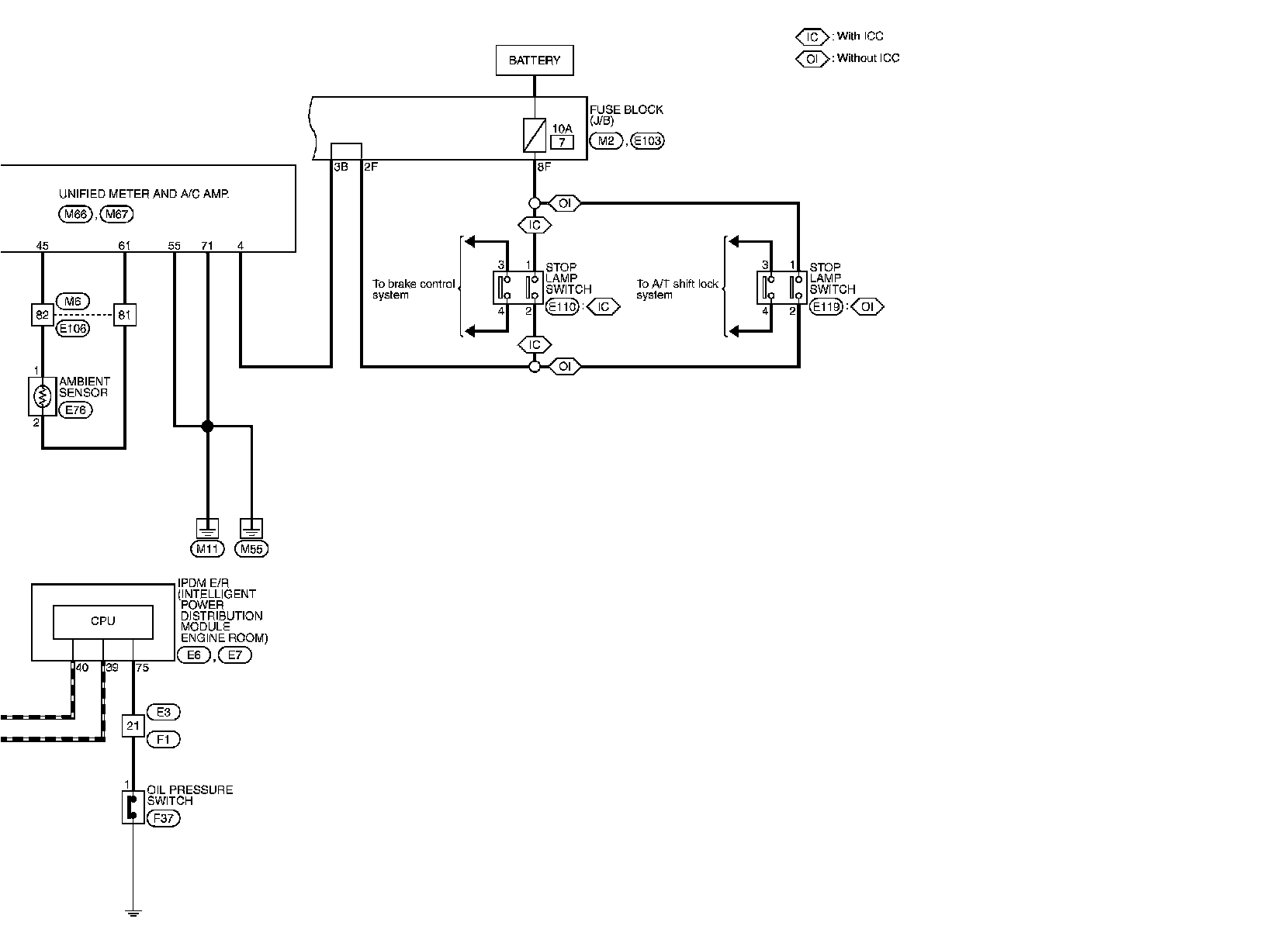

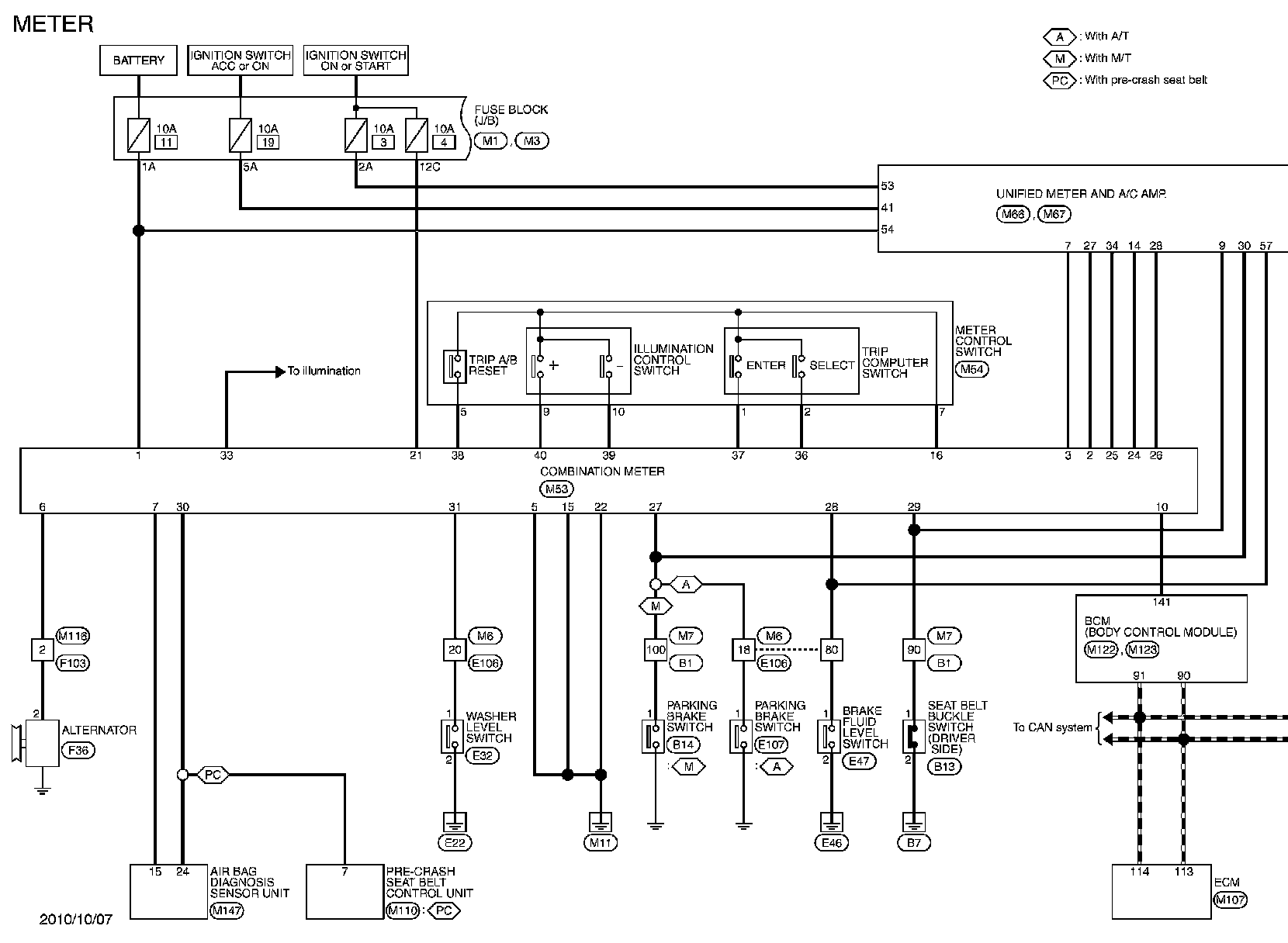

Wiring Diagram - METER

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), Connector Information.
