Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)

CONSULT Function

The automatic drive positioner system can be checked and diagnosed for component operation using CONSULT.

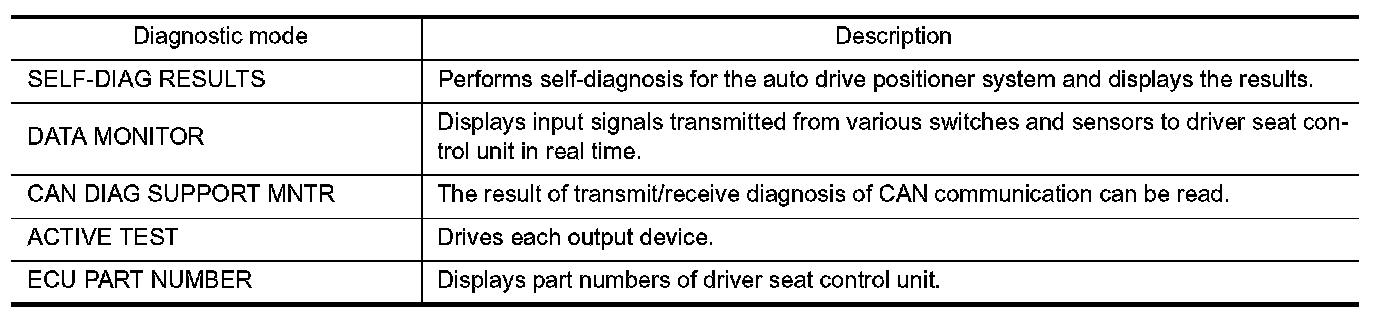

DIAGNOSTIC MODE







SELF DIAGNOSTIC RESULTS

Testing and Inspection.

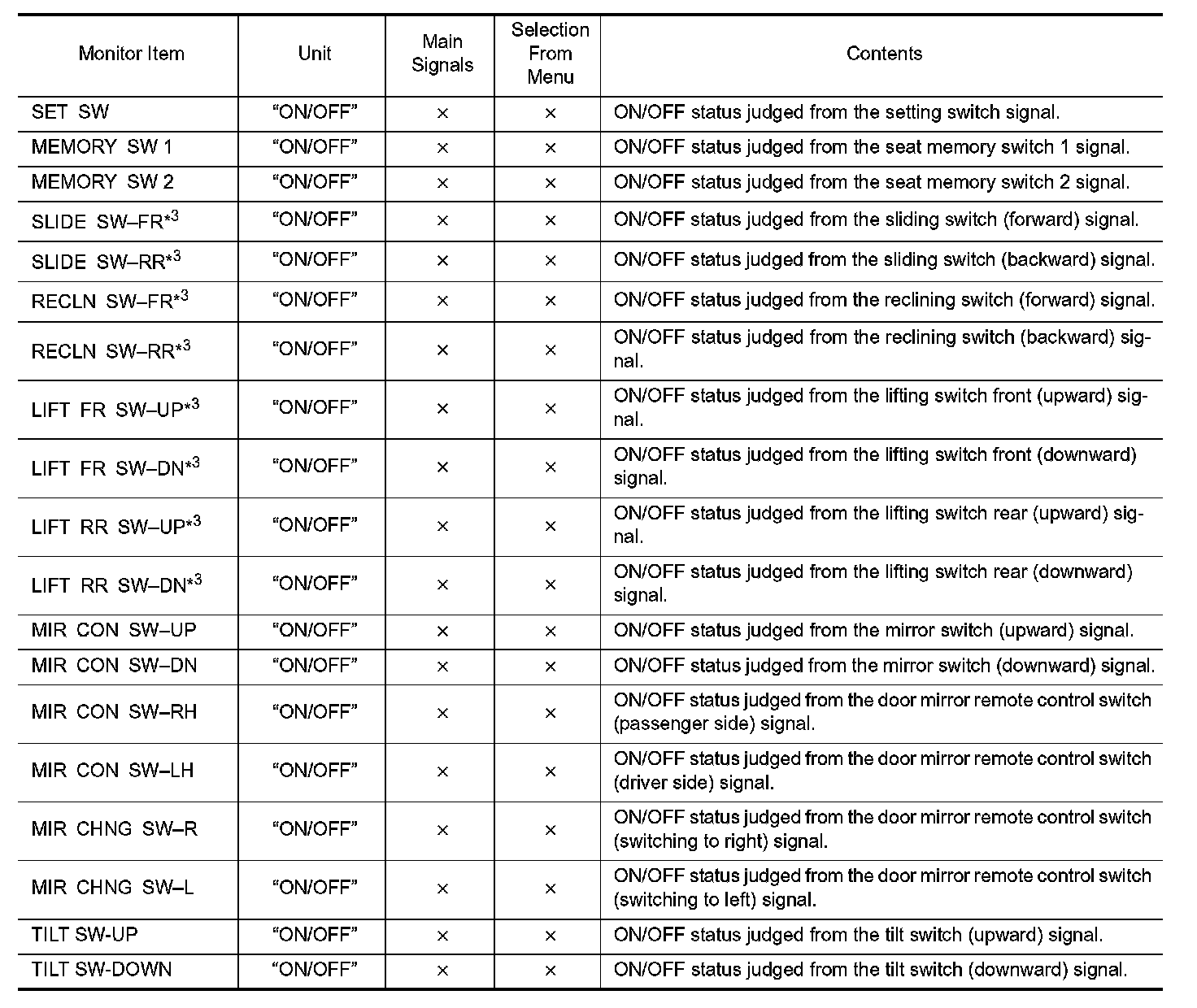

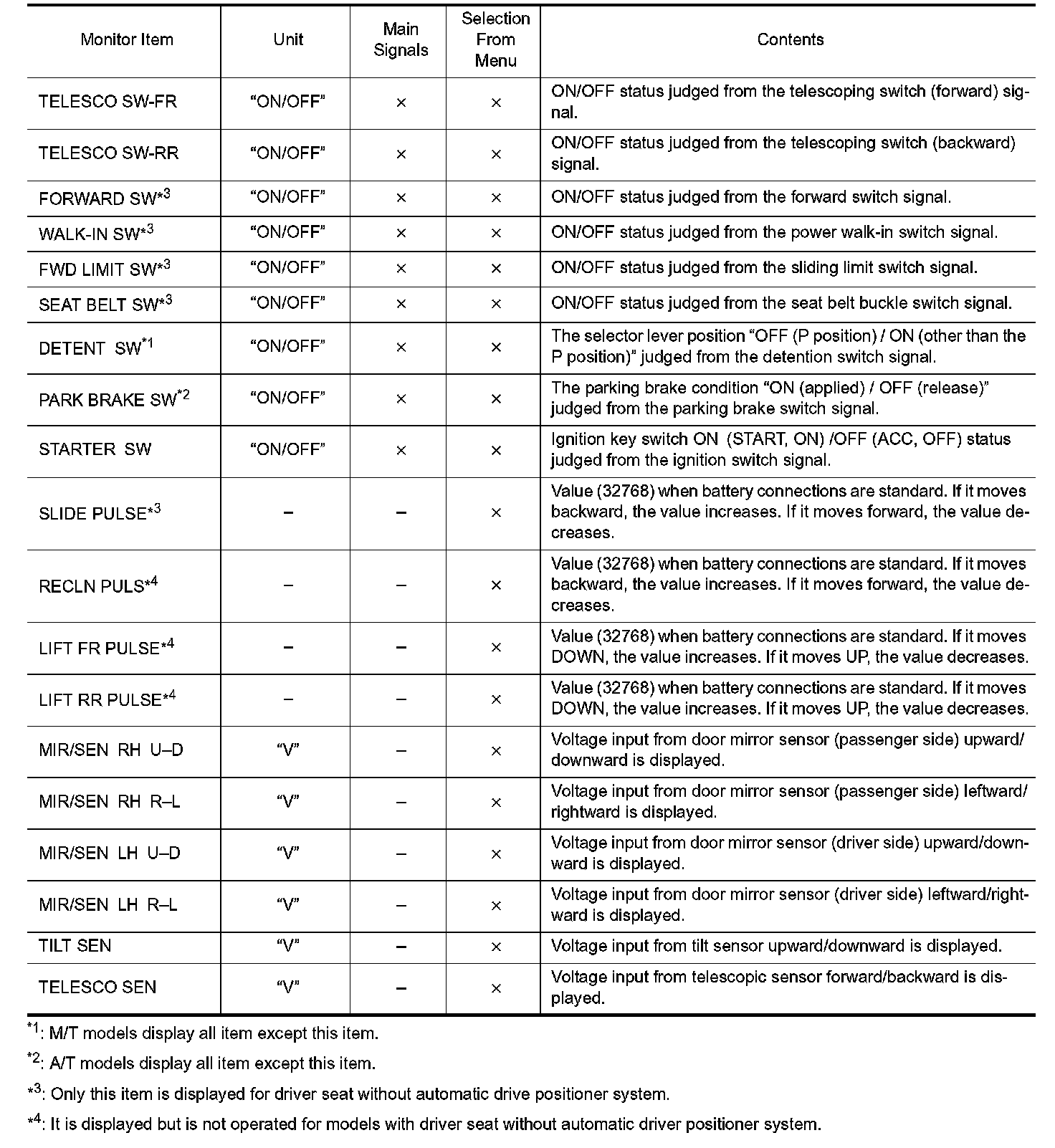

DATA MONITOR

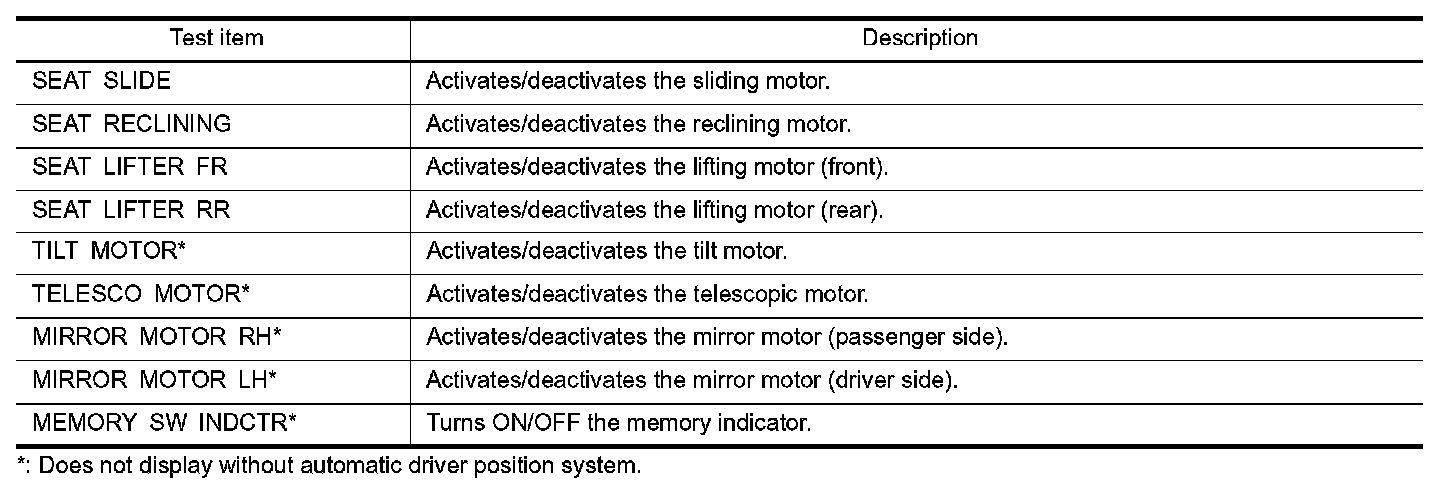

ACTIVE TEST


CAUTION:
When driving vehicle, never perform active test.
