Component Inspection

SLIDING MOTOR

PASSENGER SIDE : Component Inspection


1. CHECK SLIDING MOTOR-1

Visually check the sliding motor for foreign objects, and check that the sliding motor is not broken.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace seat cushion frame (sliding motor).

2. CHECK SLIDING MOTOR-2

1.Turn ignition switch OFF.
2.Disconnect sliding motor connector.

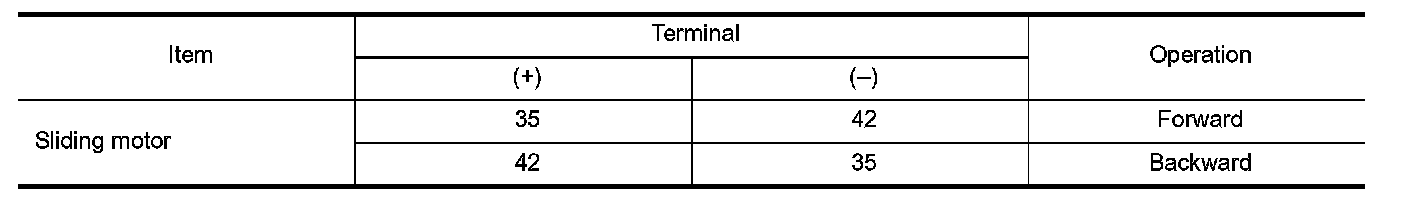

3.Supply sliding motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace sliding motor. Exploded View.
