Component Inspection

RECLINING MOTOR

DRIVER SIDE : Component Inspection


1. CHECK RECLINING MOTOR-1

Visually check the sliding motor for foreign objects, and check that the reclining motor is not broken.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace seatback frame (reclining motor).

2. CHECK RECLINING MOTOR-2

1.Turn ignition switch OFF.
2.Disconnect reclining motor connector.

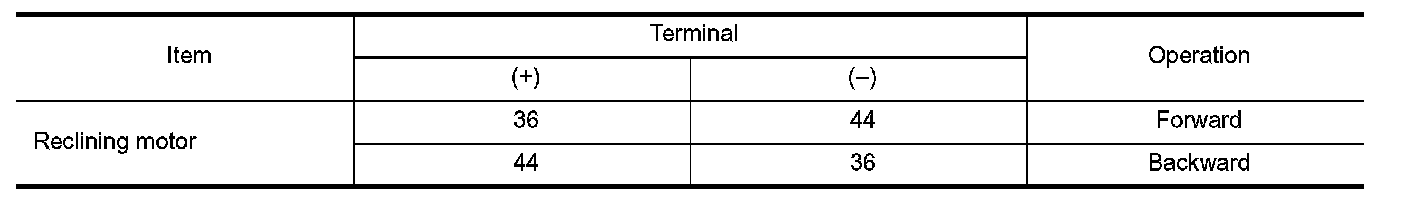

3.Supply reclining motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace reclining motor. Exploded View.
