Component Inspection

LIFTING MOTOR (FRONT)

DRIVER SIDE : Component Inspection


1. CHECK LIFTING MOTOR (FRONT) -1

Visually check the lifting motor (front) for foreign objects, and check that the lifting motor (front) is not broken.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace seat cushion frame (lifting motor).

2. CHECK LIFTING MOTOR (FRONT) -2

1.Turn ignition switch OFF.
2.Disconnect lifting motor (front) connector.

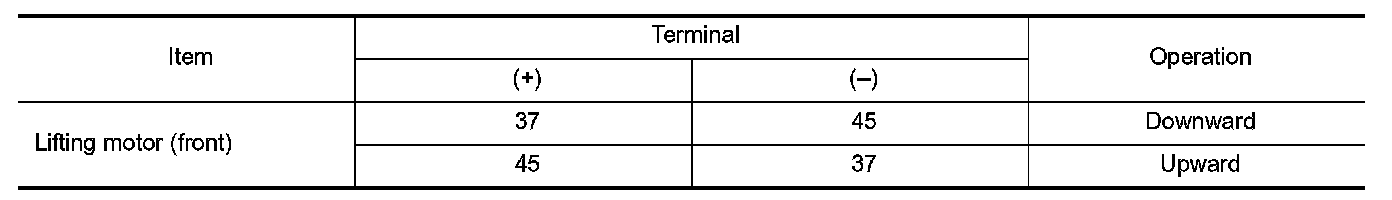

3.Supply lifting motor (front) terminals with battery voltage and check operation.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace lifting motor (front). Exploded View.
