Sunroof Motor Assembly




SUNROOF SYSTEM

SUNROOF MOTOR ASSEMBLY : Reference Value

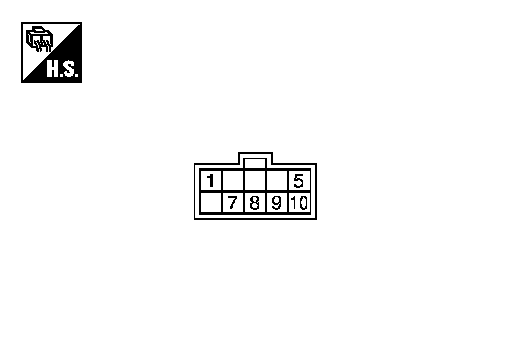

TERMINAL LAYOUT

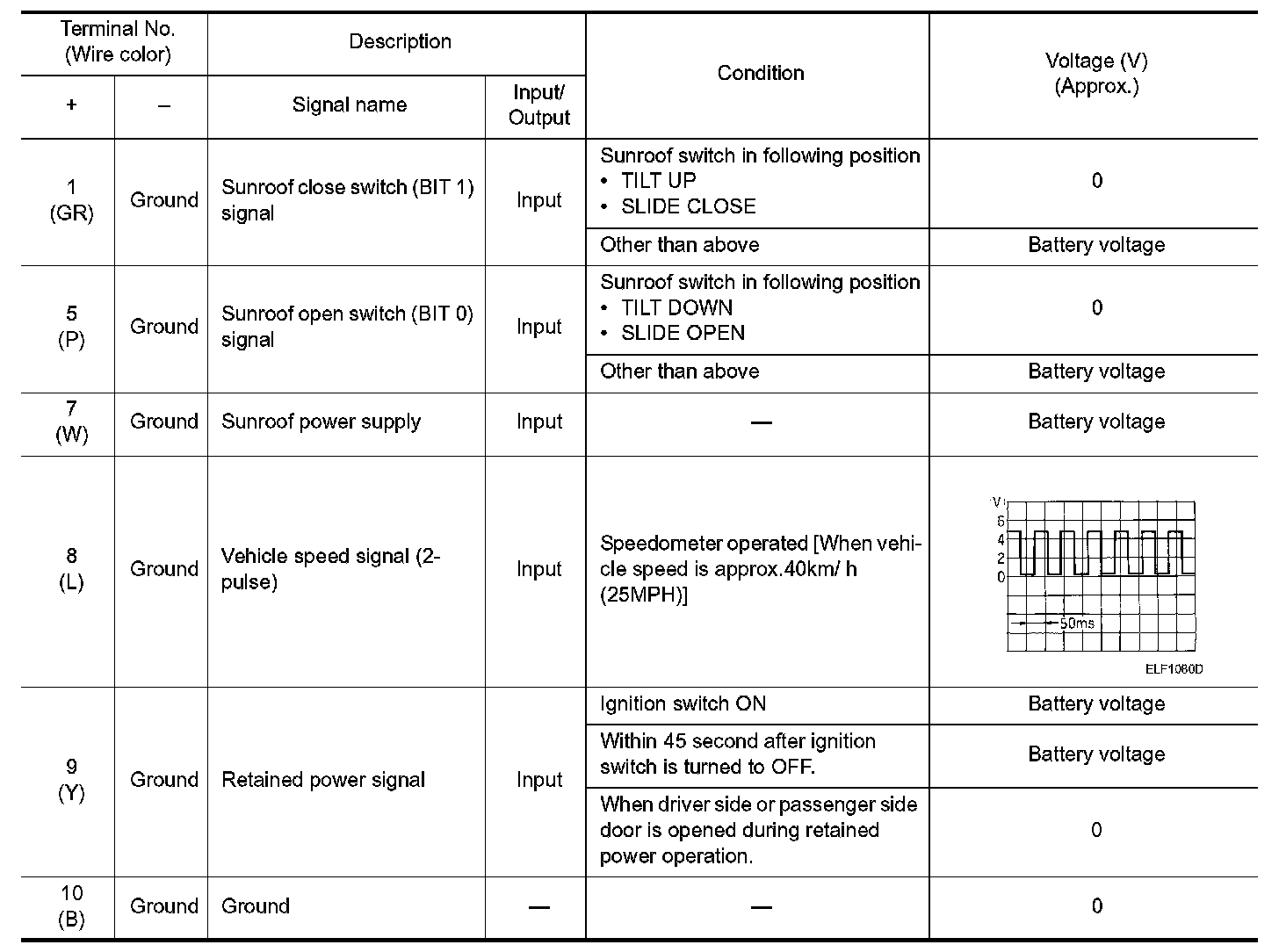

PHYSICAL VALUES
