Work Flow

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

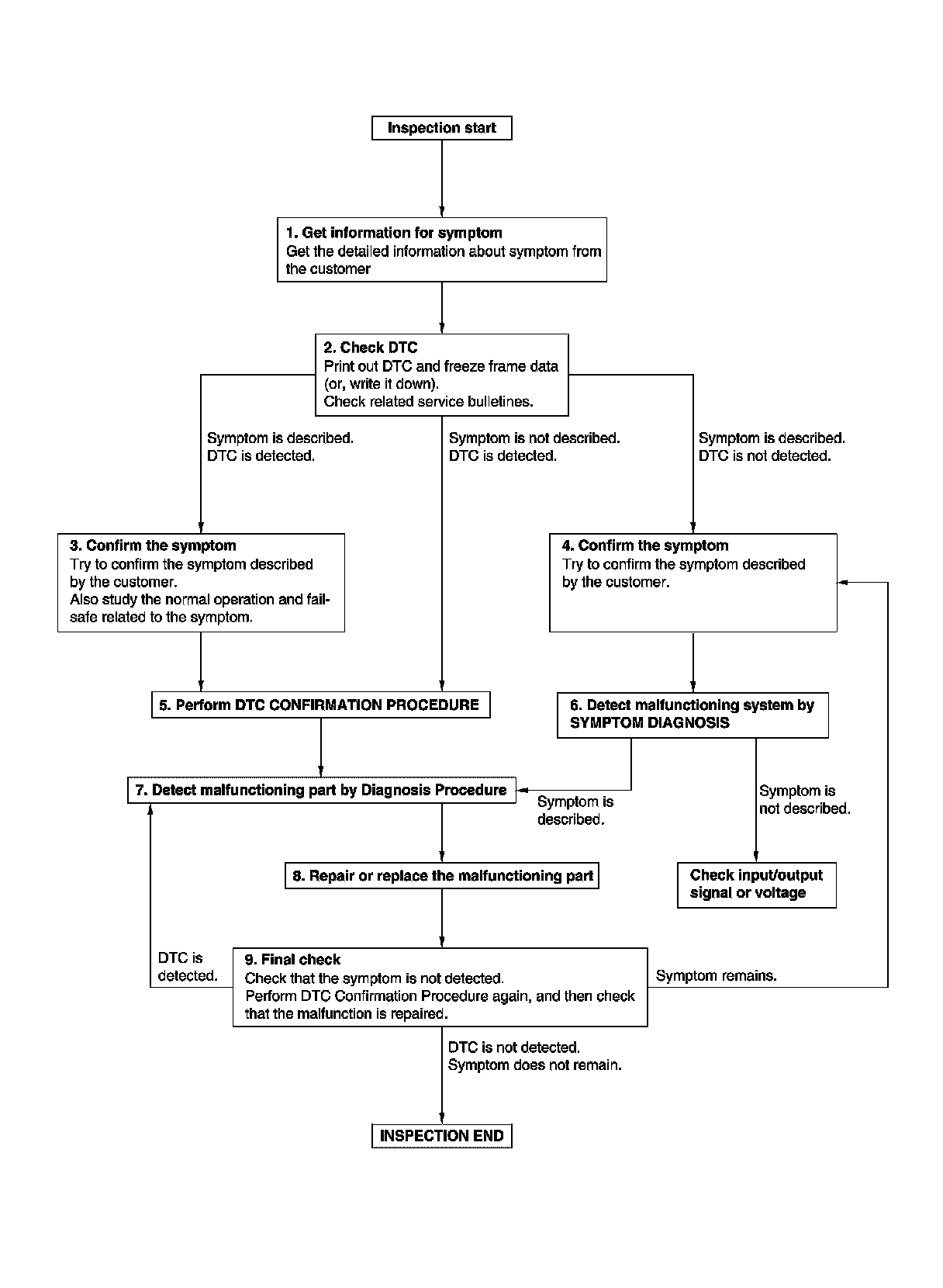

OVERALL SEQUENCE







DETAILED FLOW


1. GET INFORMATION FOR SYMPTOM

1.Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred).
2.Check operation condition of the function that is malfunctioning
- GO TO 2.

2. CHECK DTC

1.Check DTC.
2.Perform the following procedure if DTC is displayed.
-Record DTC and freeze frame data (print them out with CONSULT).
-Erase DTC.
-Study the relationship between the cause detected by DTC and the symptom described by the customer.
3.Check related service bulletins for information.
Are any symptoms described or any DTC detected?
Symptom is described, DTC is displayed-GO TO 3.
Symptom is described, DTC is not displayed-GO TO 4.
Symptom is not described, DTC is displayed-GO TO 5.

3. CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the system.
Verify relation between the symptom and the condition when the symptom is detected.
- GO TO 5.

4. CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.
- GO TO 6.

5. PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected again.
At this time, always connect CONSULT to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, Keyless Entry Automatic Door Lock (BCM), and determine trouble diagnosis order.
NOTE:
- Freeze frame data is useful if the DTC is not detected.
- Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIRMATION PROCEDURE.
Is DTC detected?
YES- GO TO 7.
NO- Check according to Intermittent Incident.

6. DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptoms.
Is the symptom described?
YES- GO TO 7.
NO- Monitor input data from related sensors or check voltage of related module terminals using CONSULT.

7. DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnostic Procedure described is based on open circuit inspection. A short circuit inspection is also required for the circuit check in the Diagnostic Procedure.
Is malfunctioning part detected?
YES- GO TO 8.
NO- Check according to Intermittent Incident.

8. REPAIR OR REPLACE THE MALFUNCTIONING PART

1.Repair or replace the malfunctioning part.
2.Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.
3.Check for DTC. If DTC is displayed, erase it.
- GO TO 9.

9. FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the malfunction is completely repaired.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the symptom is not detected.
Does the symptom reappear?
YES-1- DTC is detected: GO TO 7.
YES-2- Symptom remains: GO TO 4.
NO- Before returning the vehicle to the customer, always erase DTC.
