Removal and Installation

FUEL FILLER LID OPENER

Removal and Installation

NOTE:

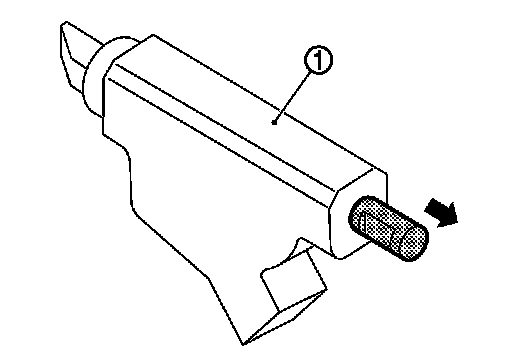

When fuel filler lid opener actuator (1) is a defective operation, pull the rod to open fuel filler lid.

REMOVAL

1.Remove mounting screws, and then remove fuel filler lid.
2.Pull and remove lock & cable assembly forward, while pushing the pawls.
3.Rotate lock nut counterclockwise, and then remove lock nut.
4.Push fuel filler lid opener actuator behind the vehicle, while pushing the pawl.
5.Remove trunk side finisher (RH). Removal and Installation.
6.Disconnect harness connector and remove fuel filler lid opener actuator.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.
