Home >> Infiniti >> 2012 >> G37x Coupe AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> AV Control Unit >> Base Audio >> With Rear View Camera

With Rear View Camera




AV CONTROL UNIT

Reference Value


VALUES ON THE DIAGNOSIS TOOL

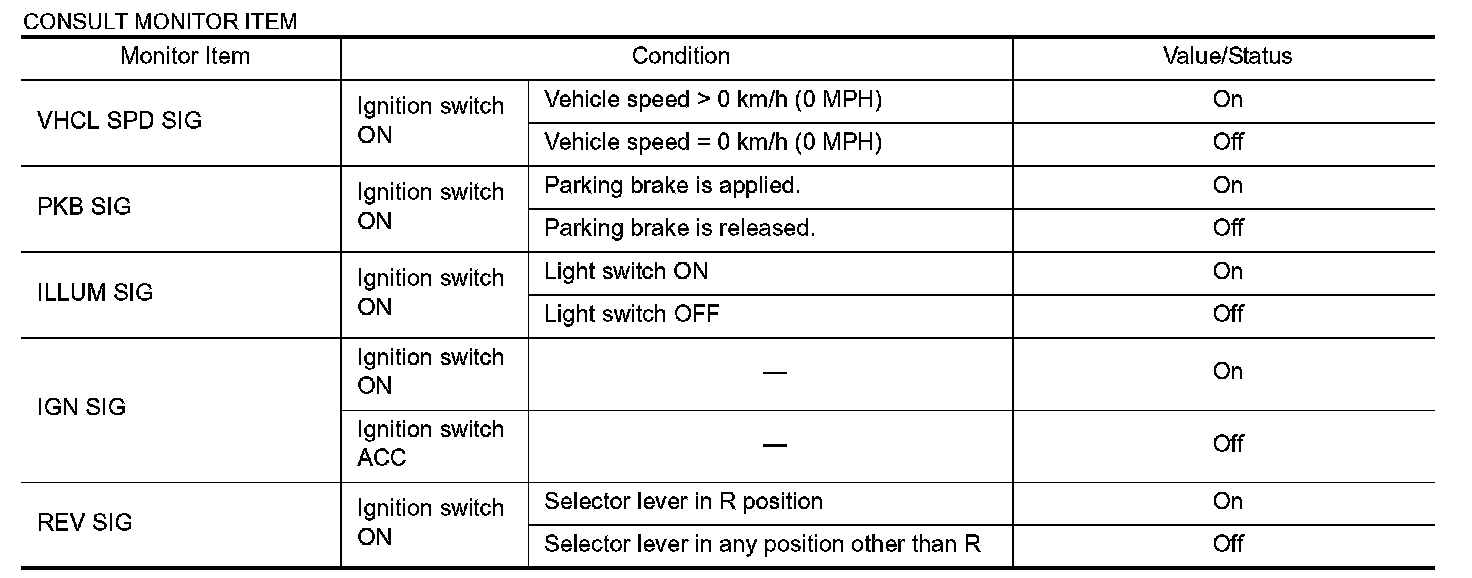

CONSULT MONITOR ITEM

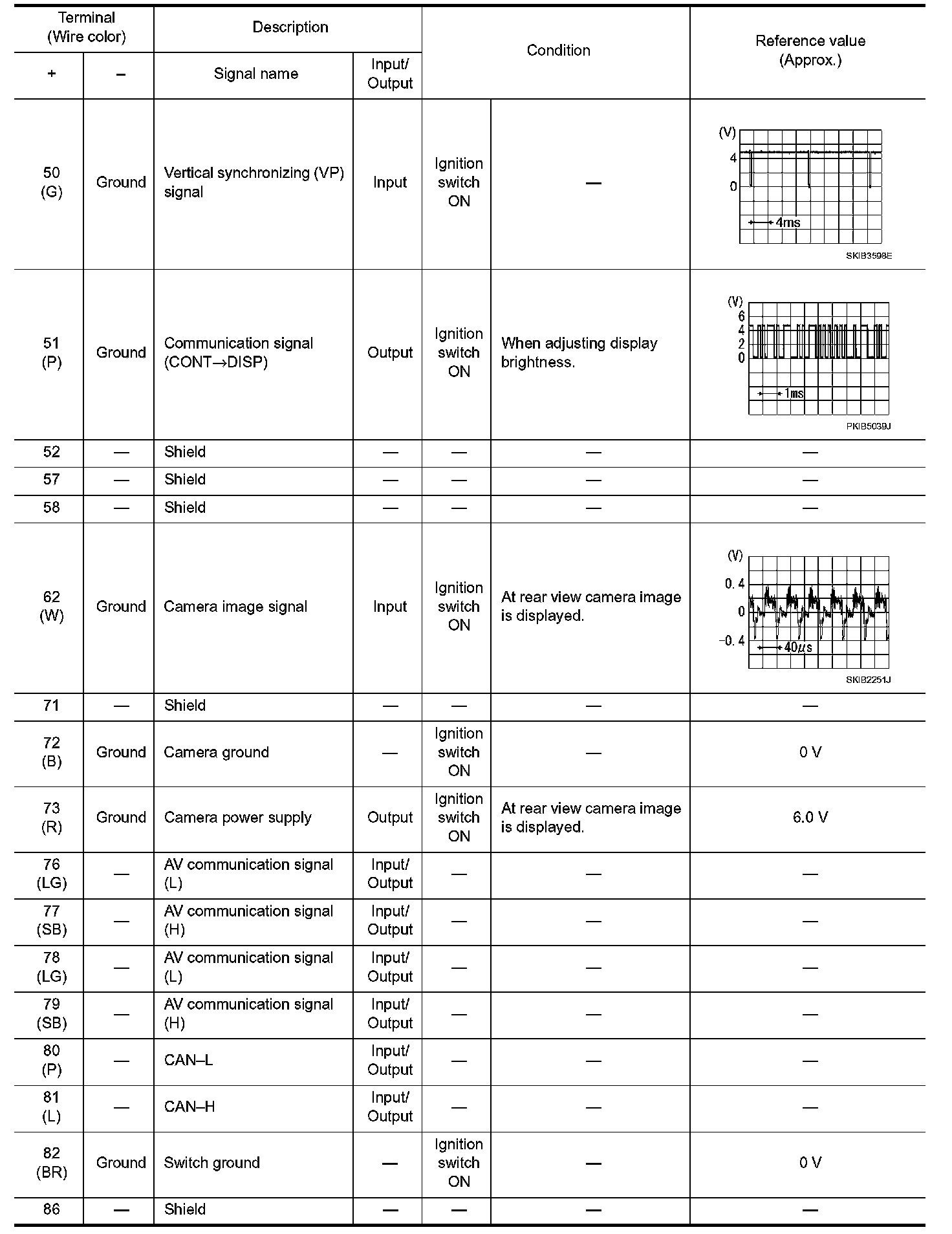

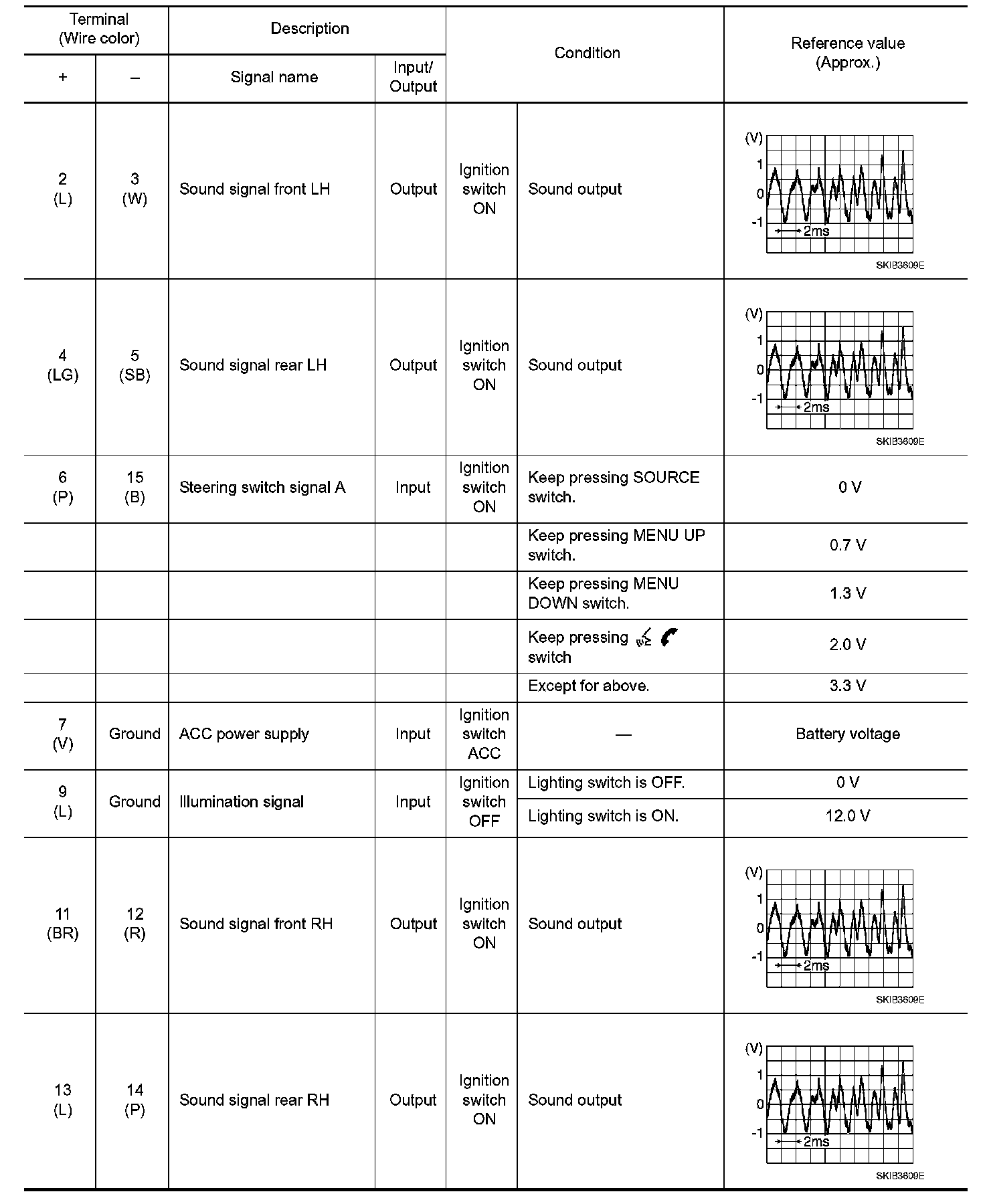

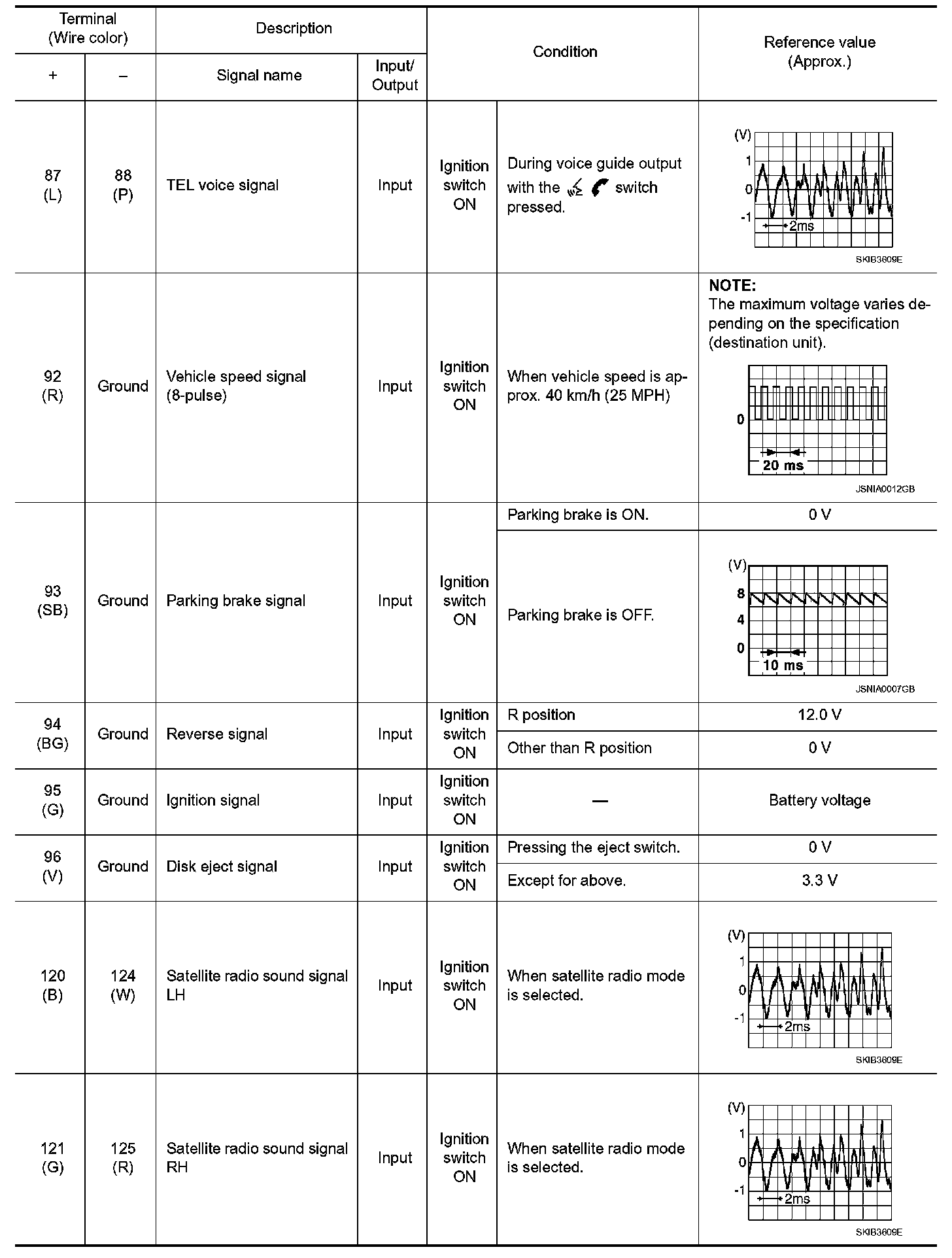

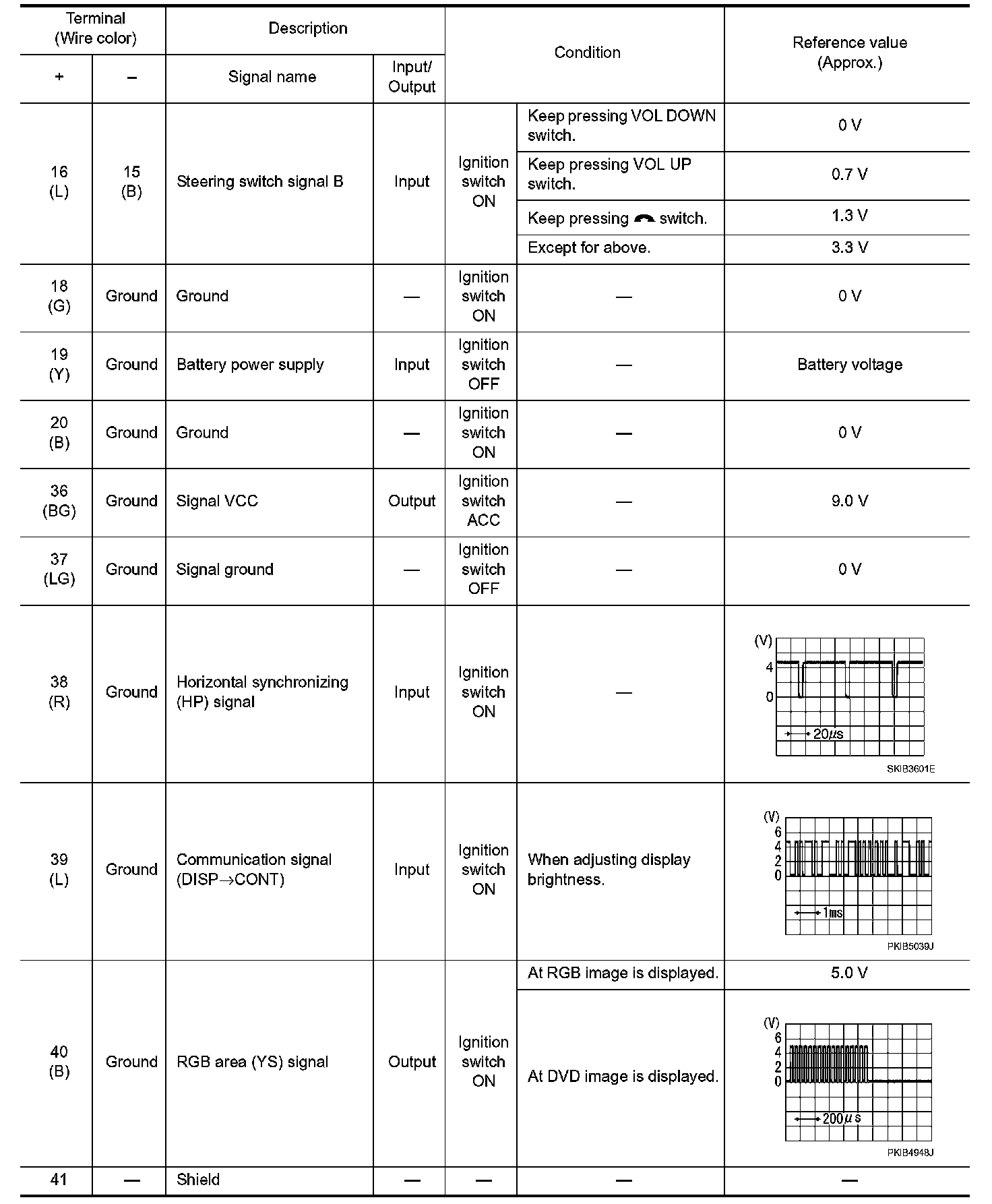

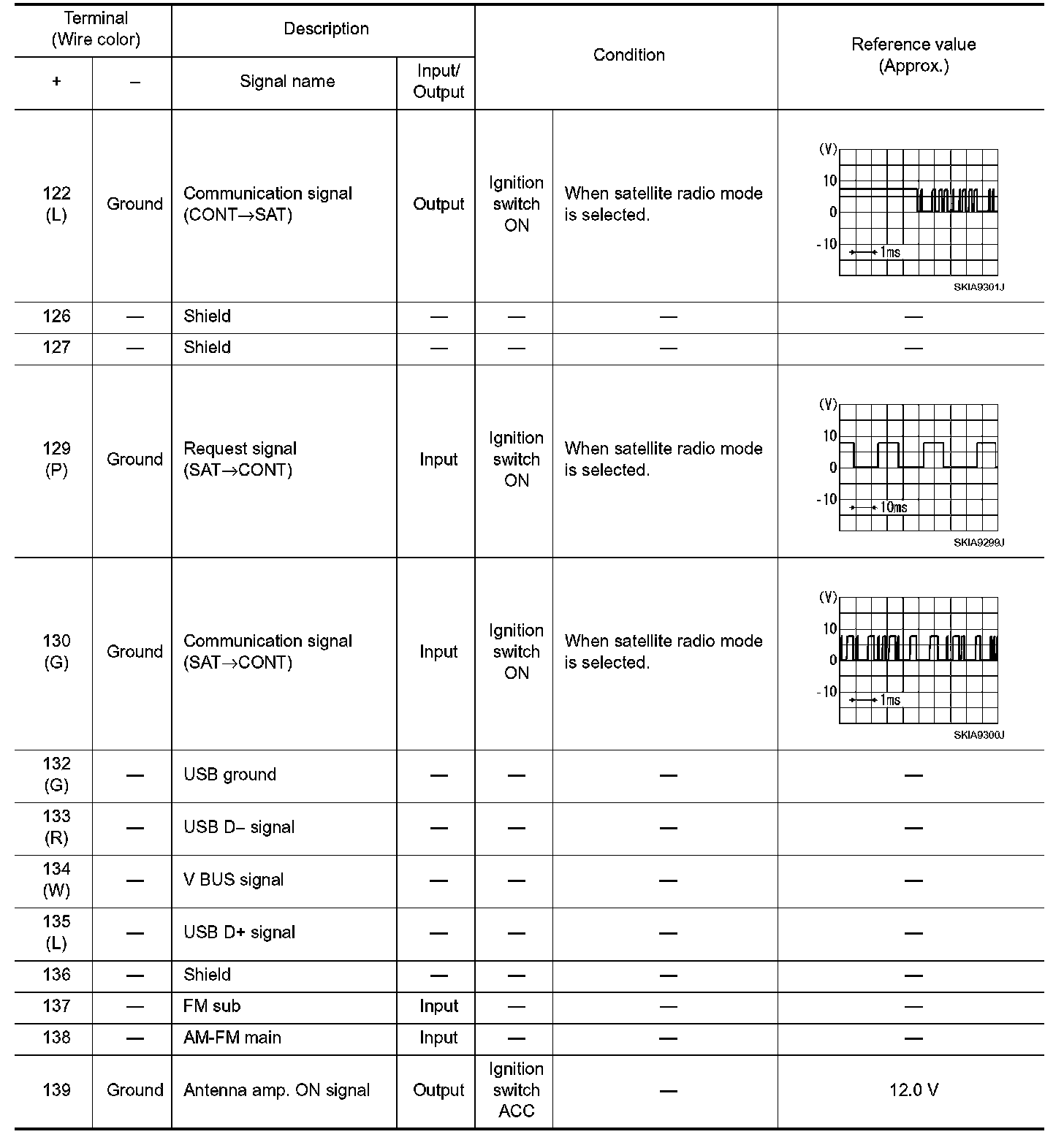

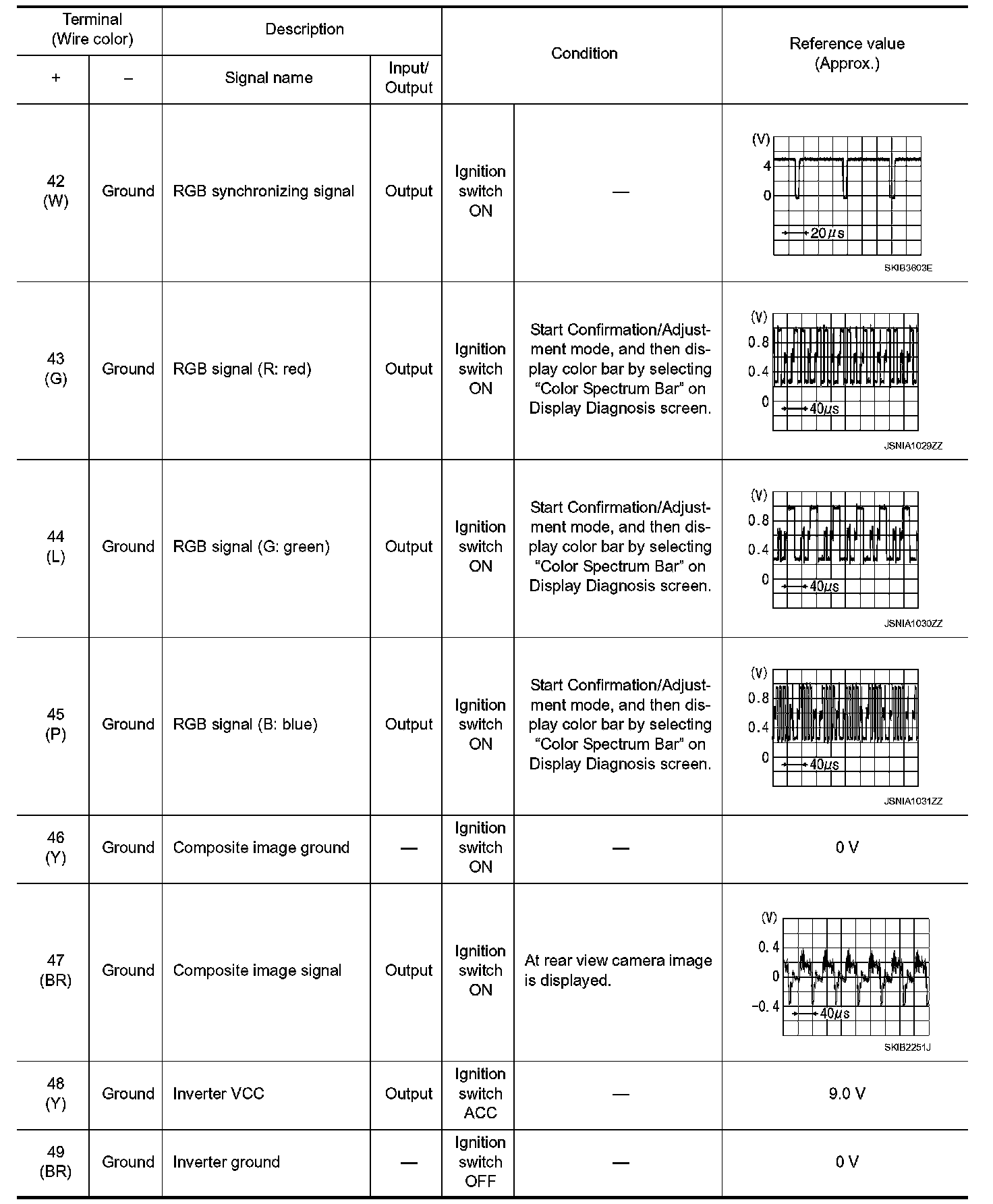

TERMINAL LAYOUT







PHYSICAL VALUES
