Multi AV System Base Audio




MULTI AV SYSTEM

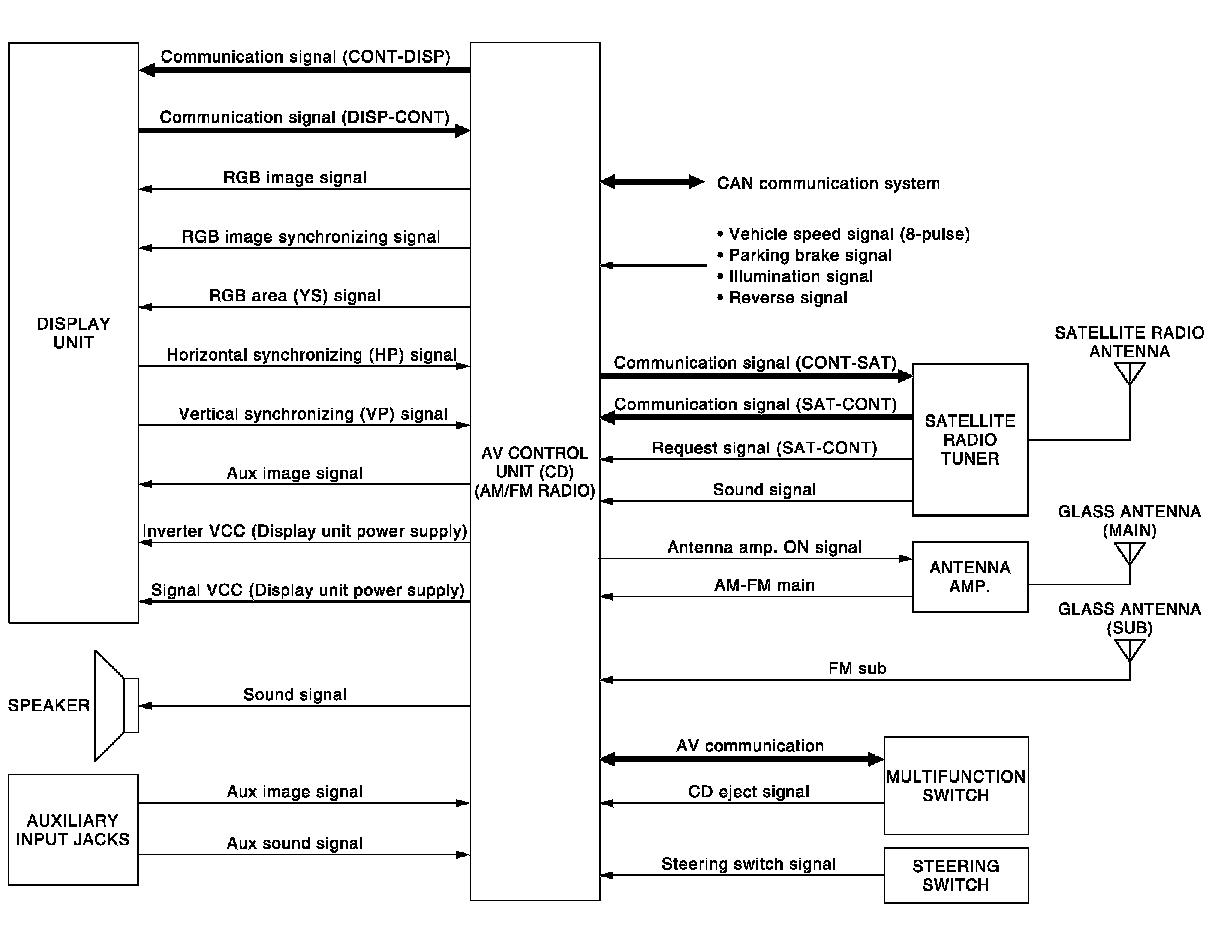

System Diagram






NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
