Home >> Infiniti >> 2012 >> G37x Coupe AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Display Unit >> Base Audio >> Without Rear View Camera

Without Rear View Camera




DISPLAY UNIT

Reference Value

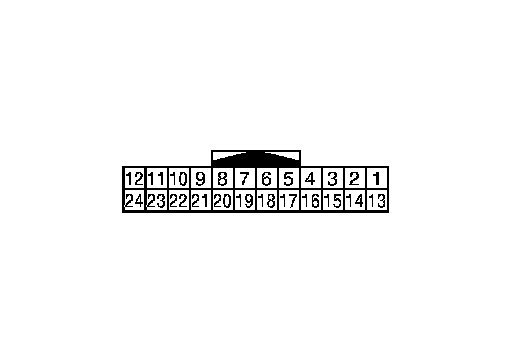

TERMINAL LAYOUT

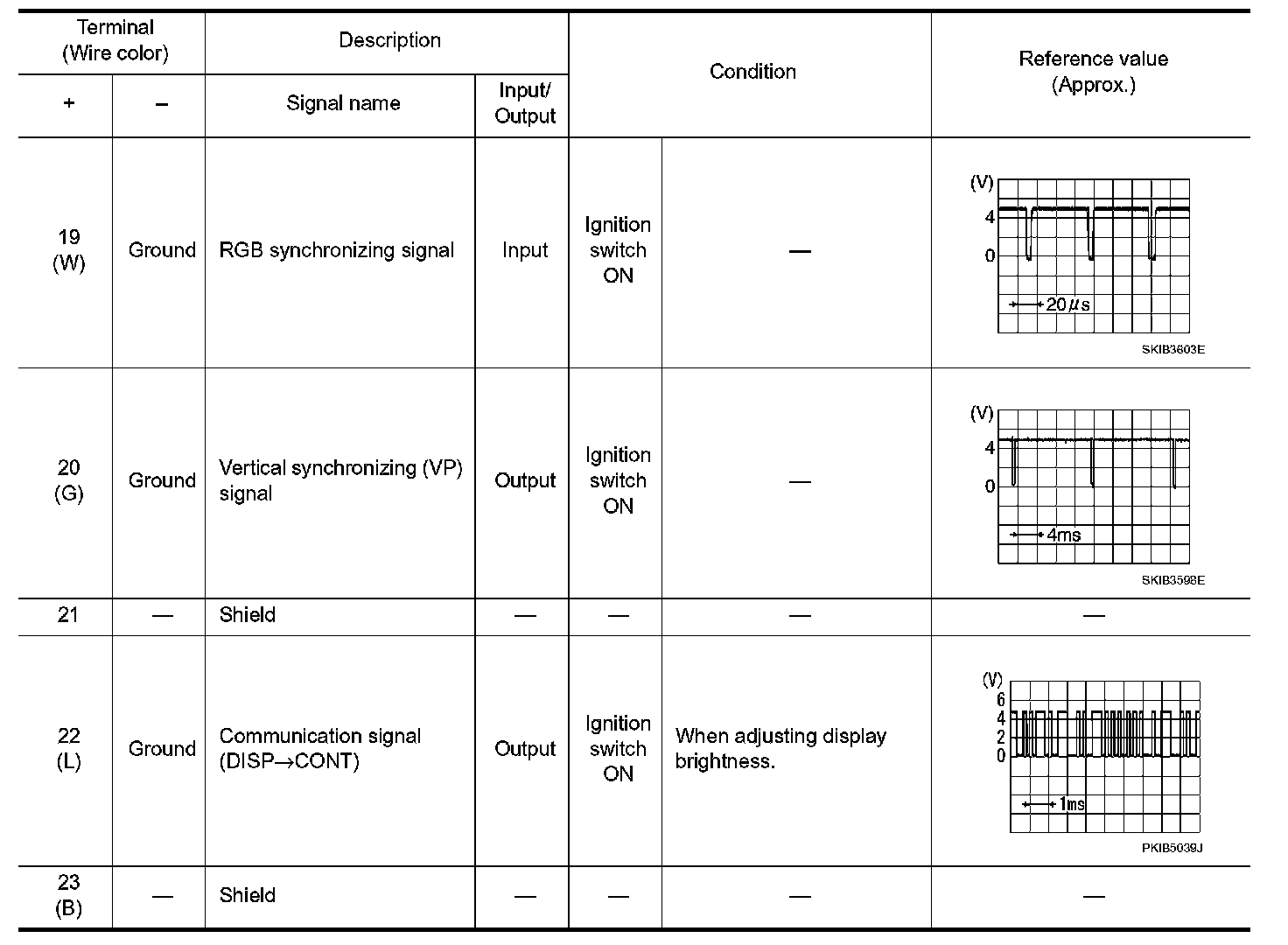

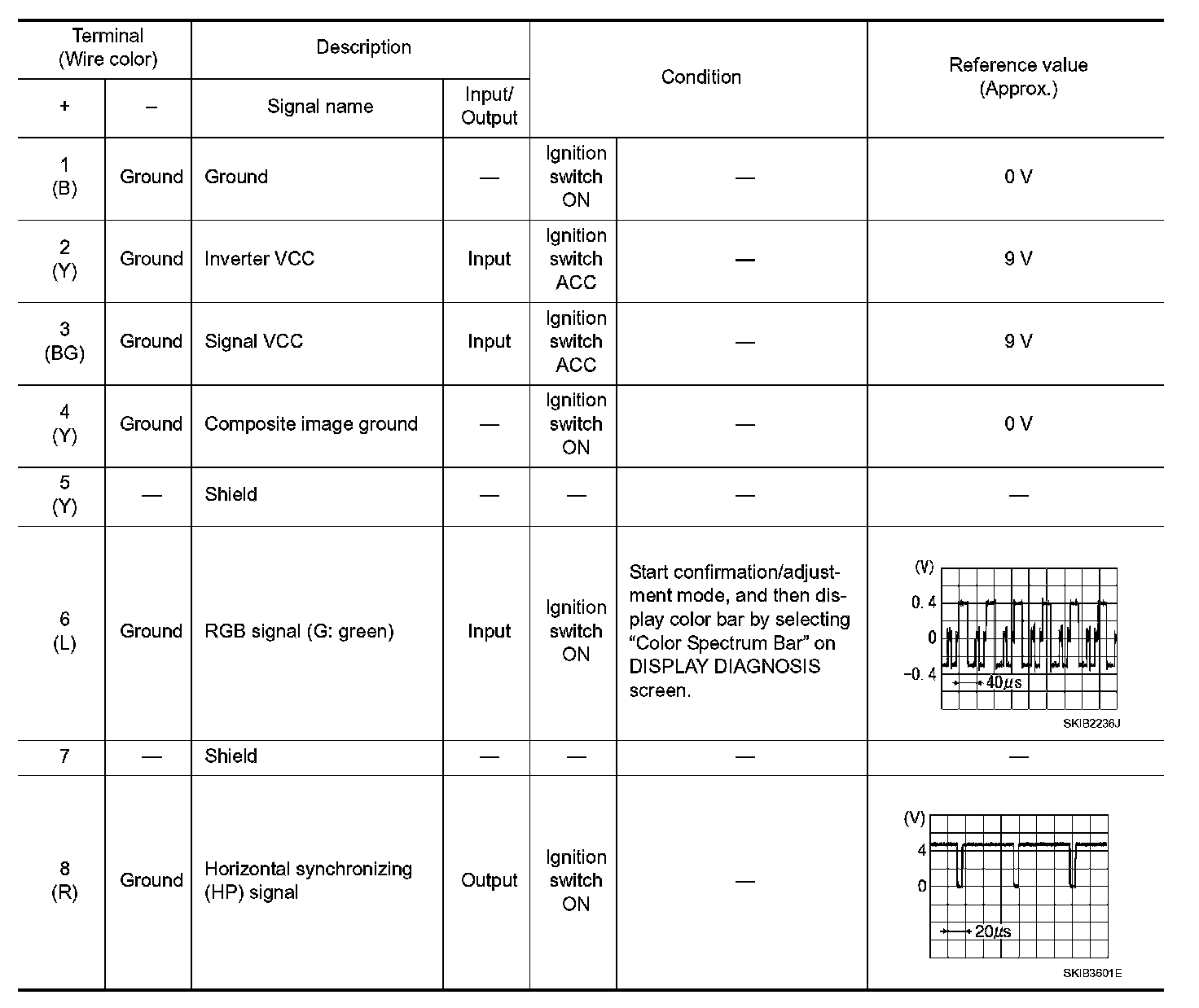

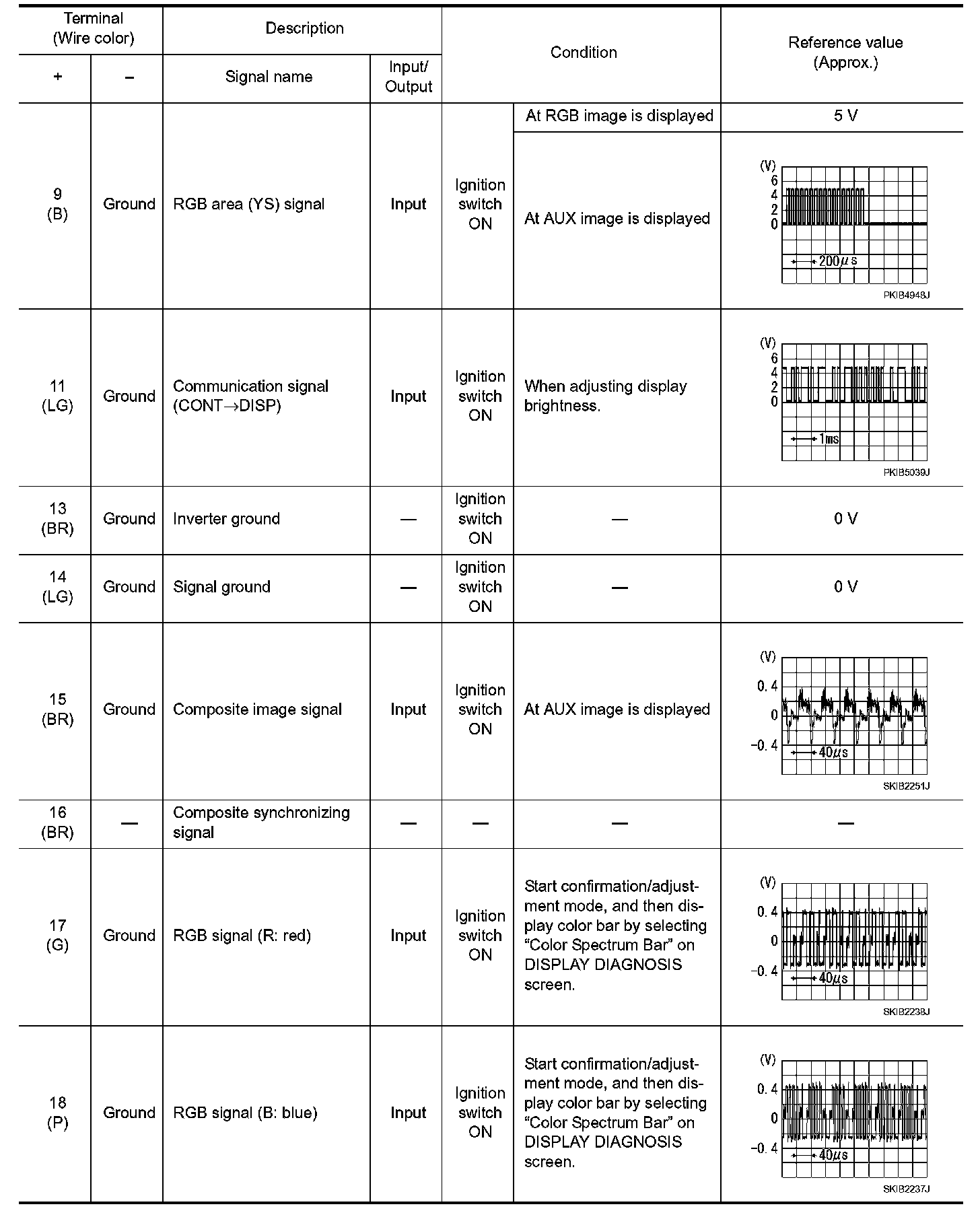

PHYSICAL VALUES
