BCM (Body Control Module)

BCM (BODY CONTROL MODULE)

Reference Value


VALUES ON THE DIAGNOSIS TOOL

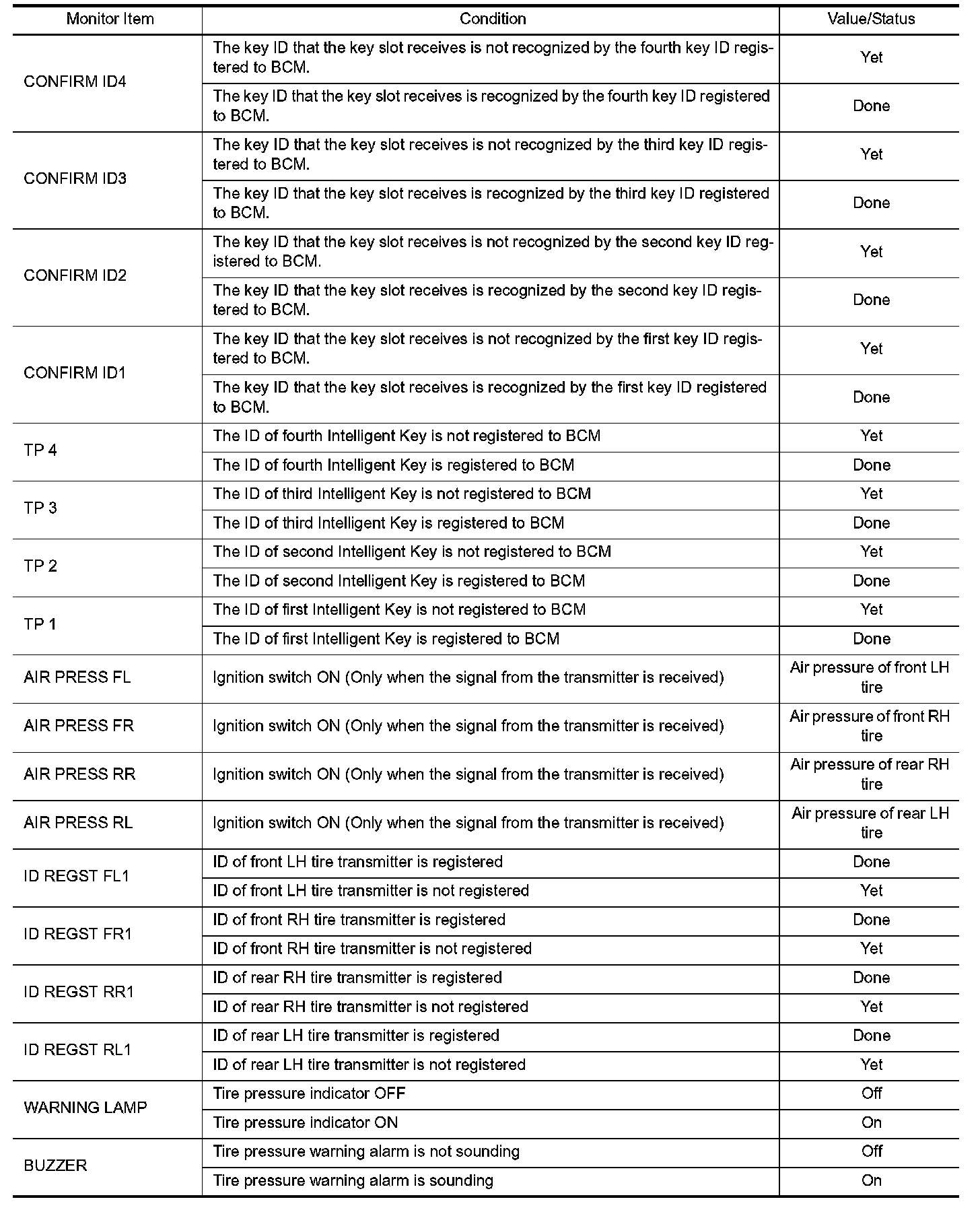

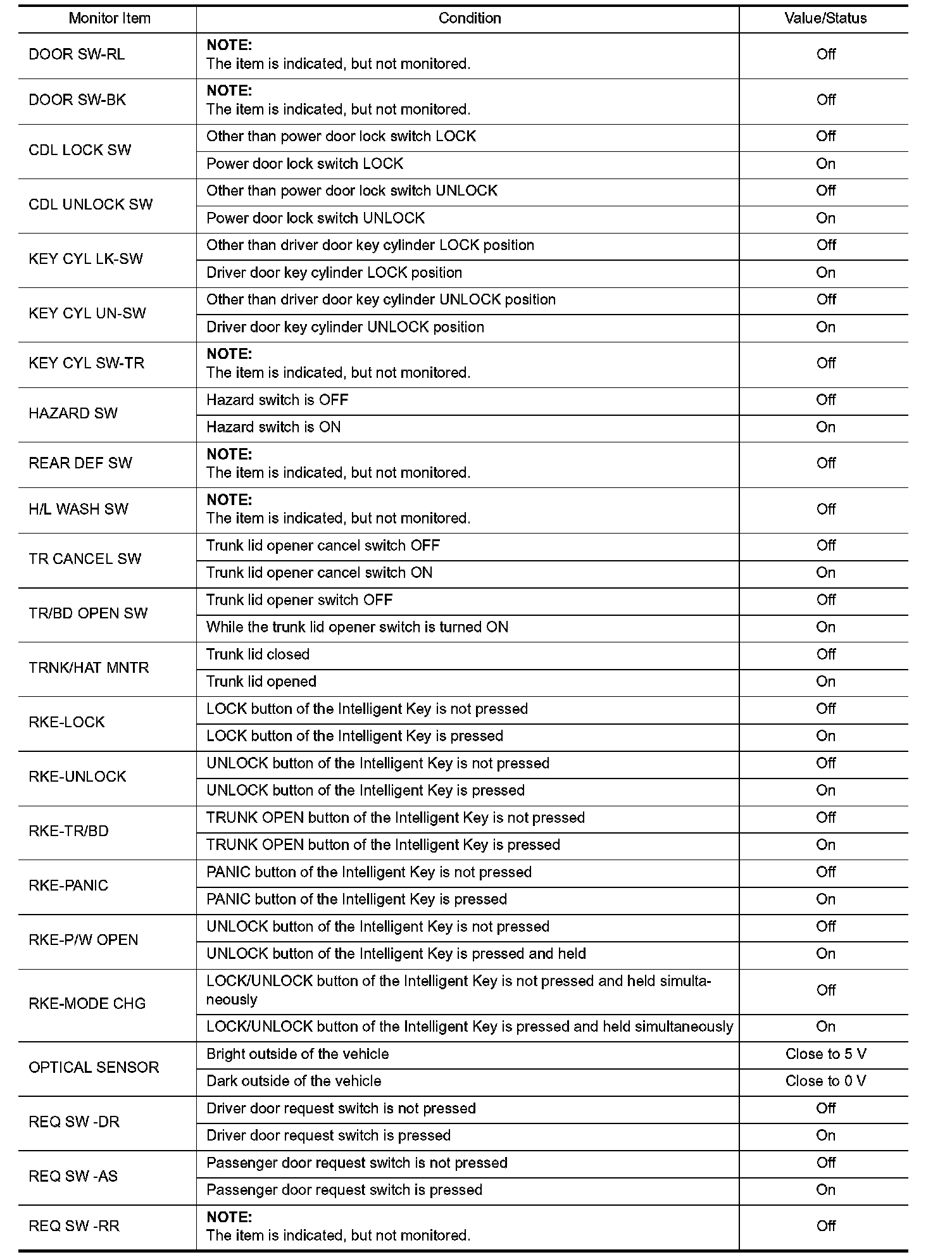

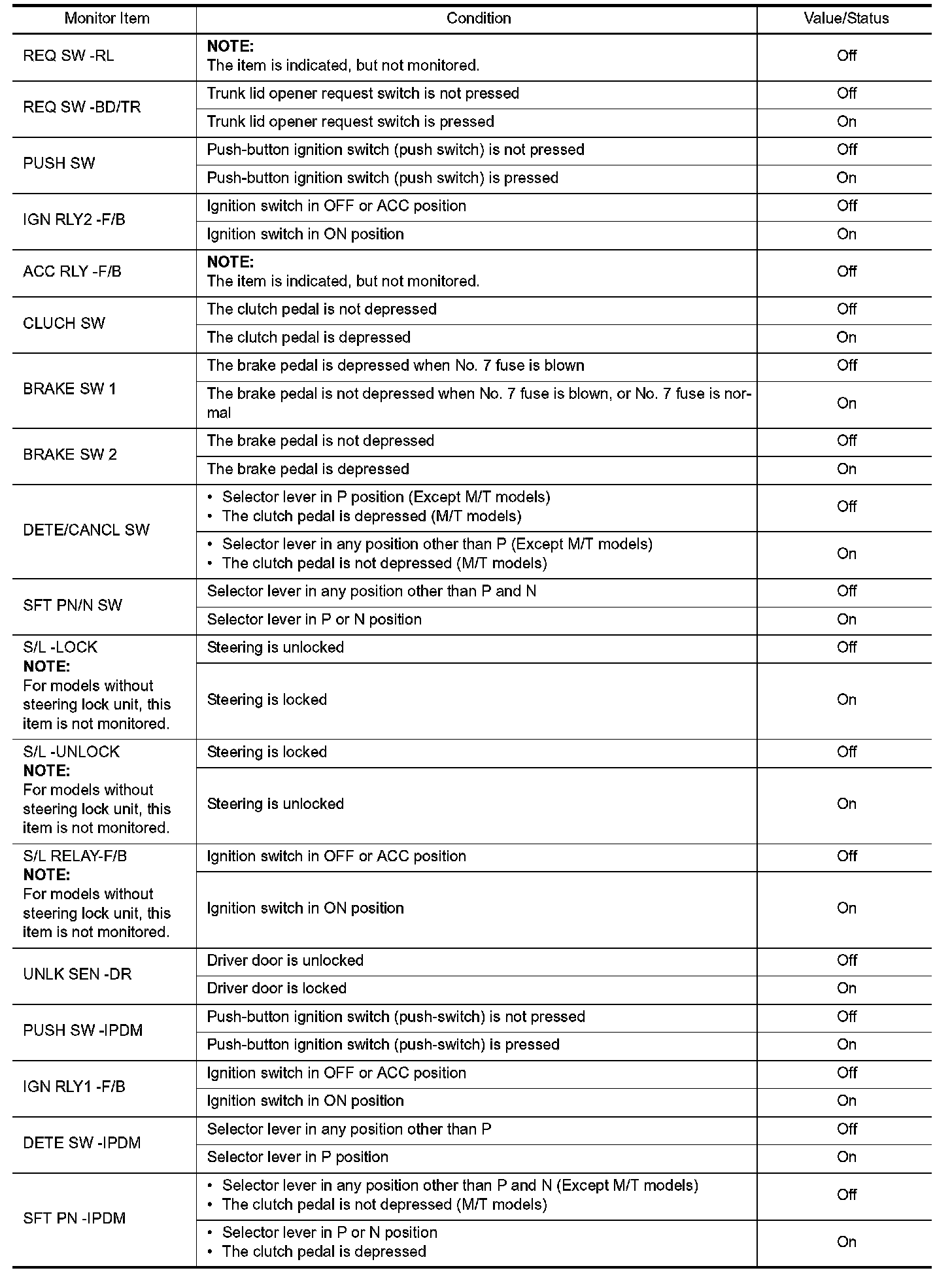

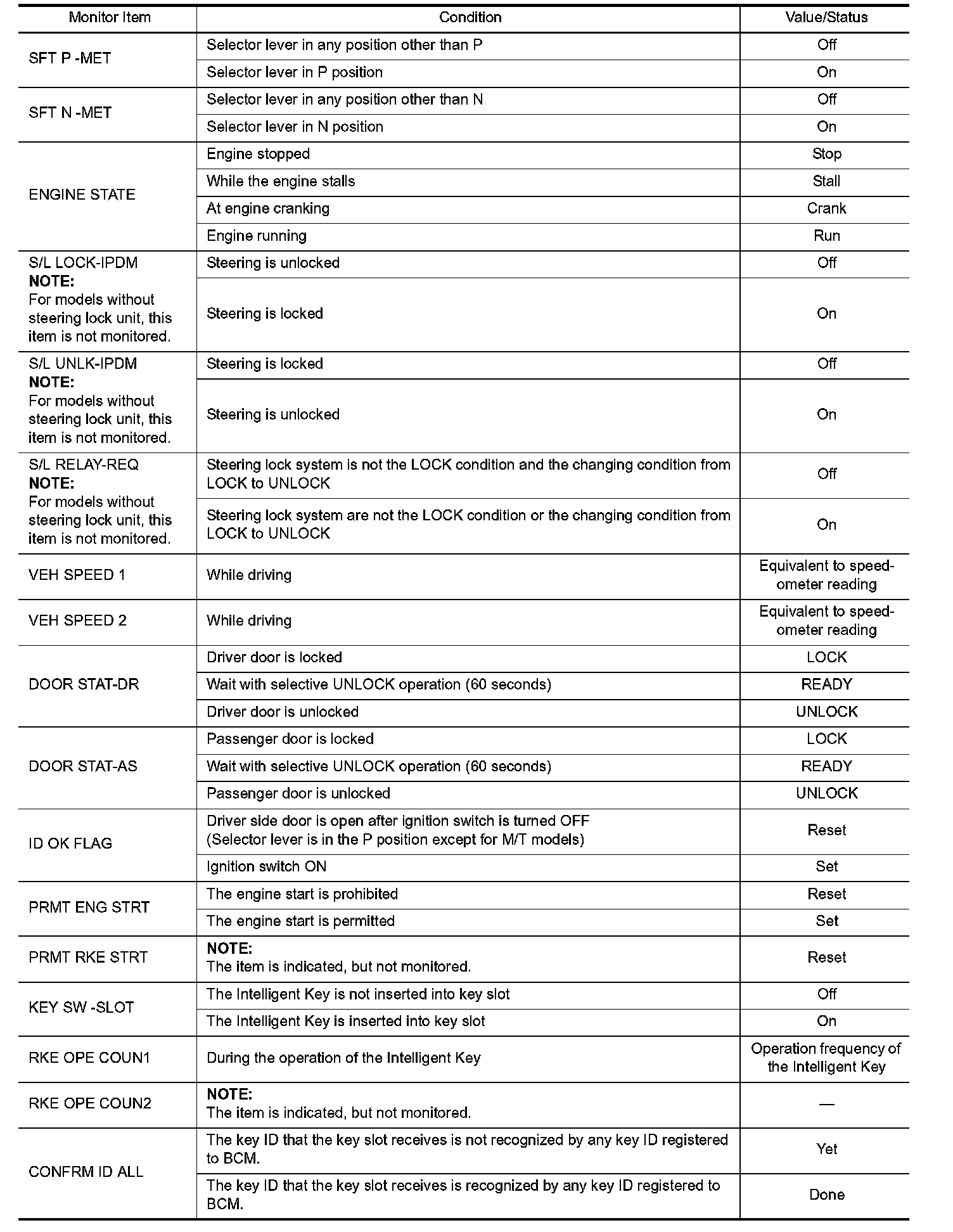

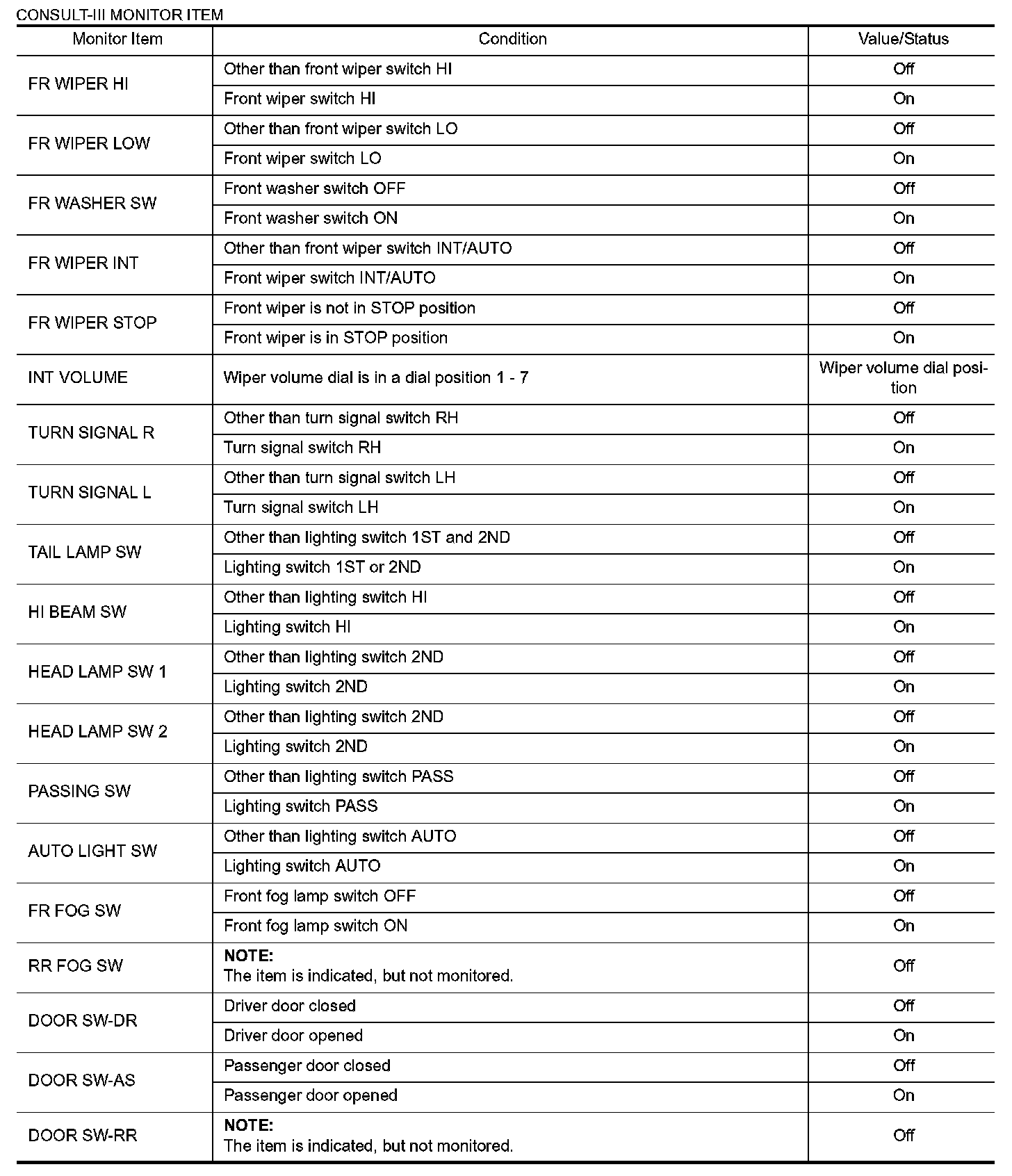

CONSULT-III MONITOR ITEM

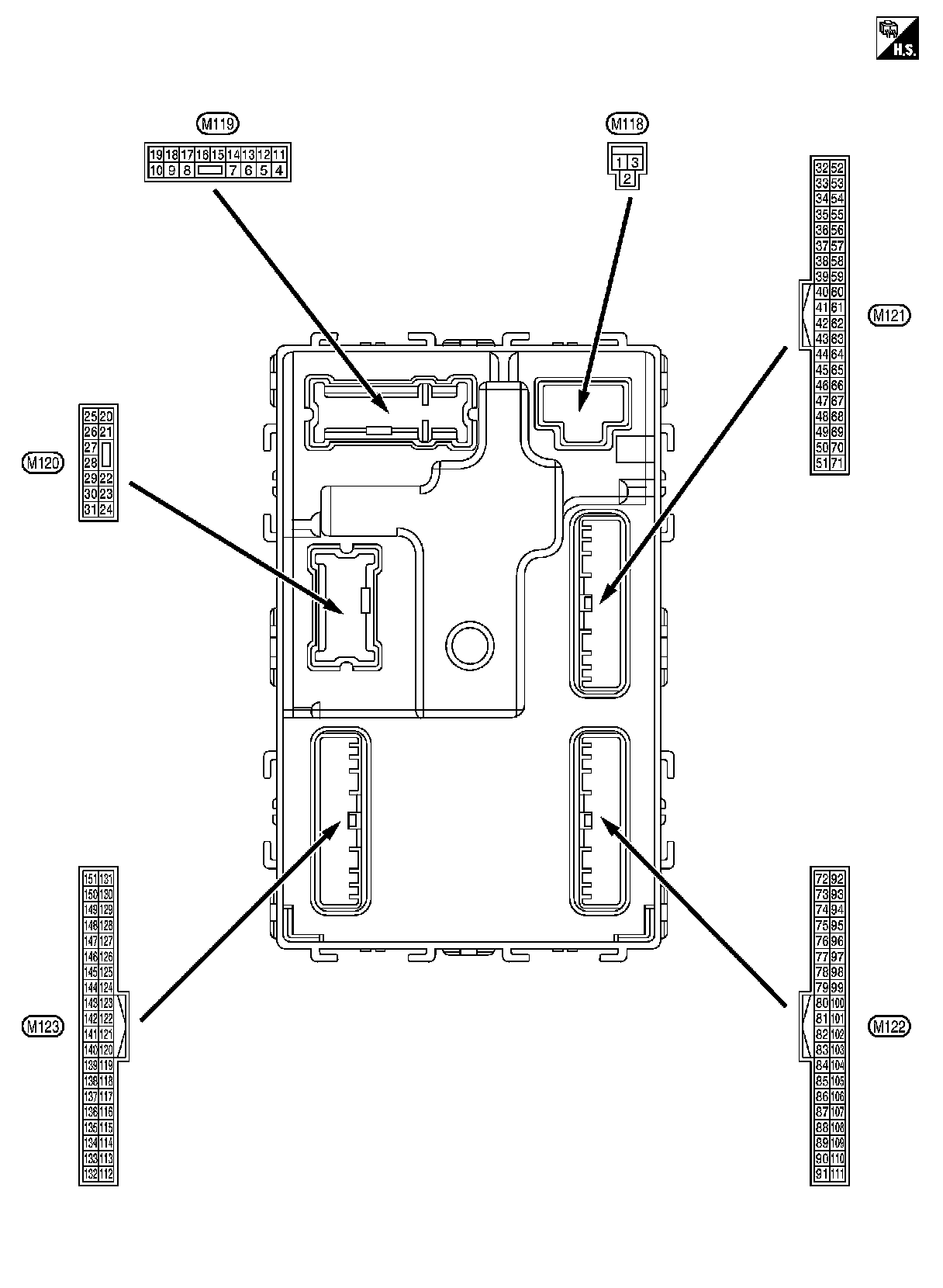

TERMINAL LAYOUT

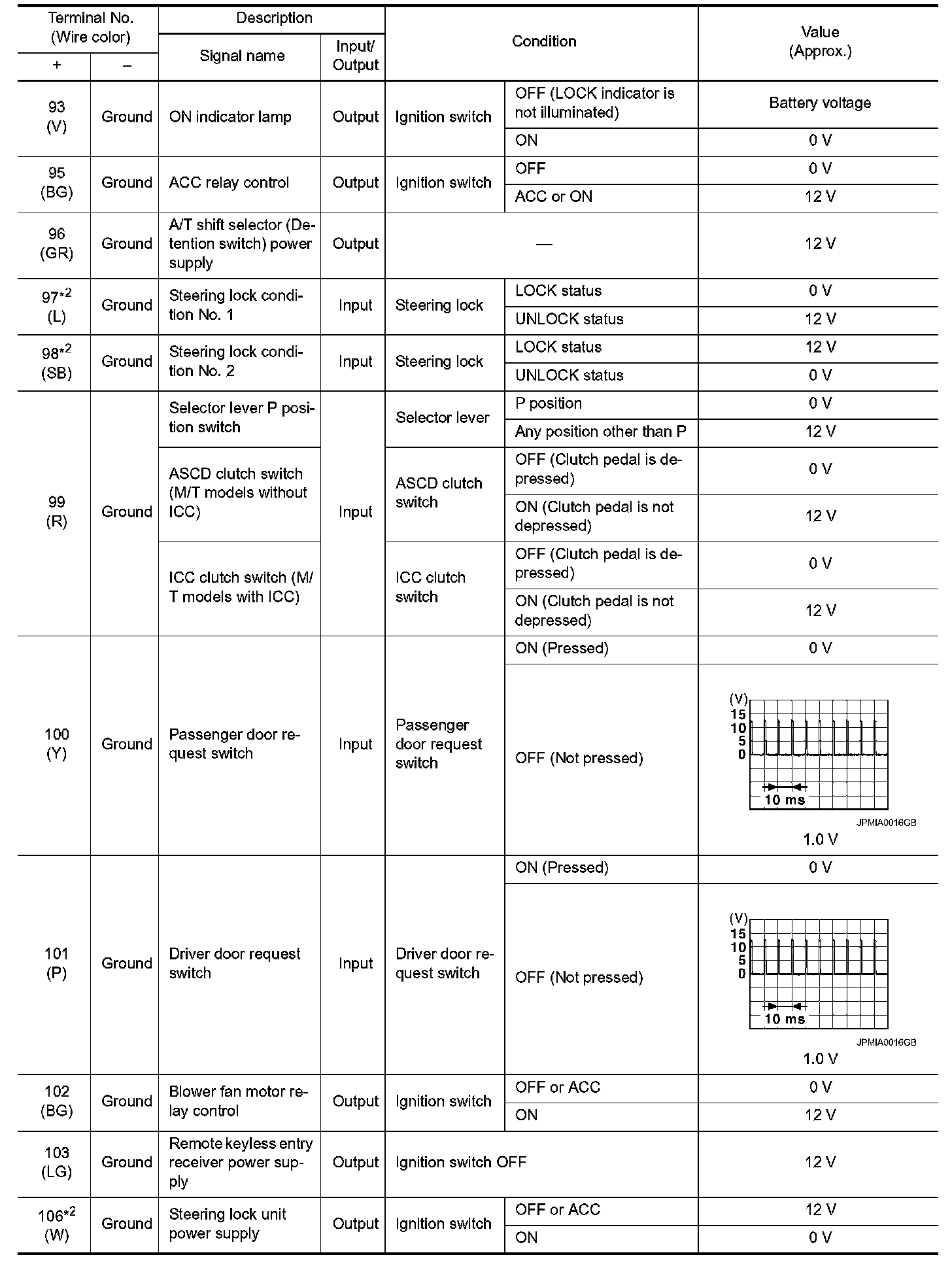

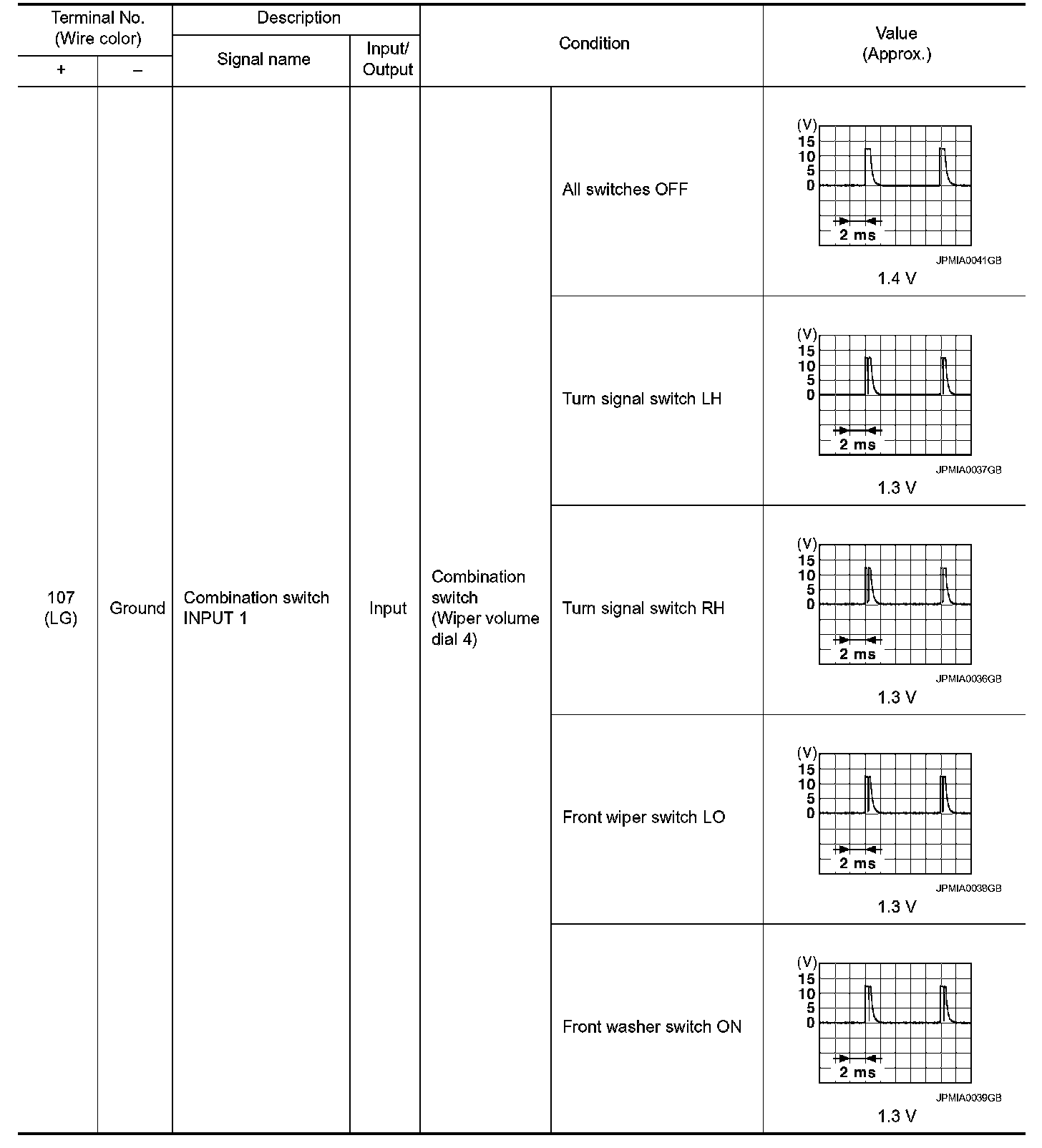

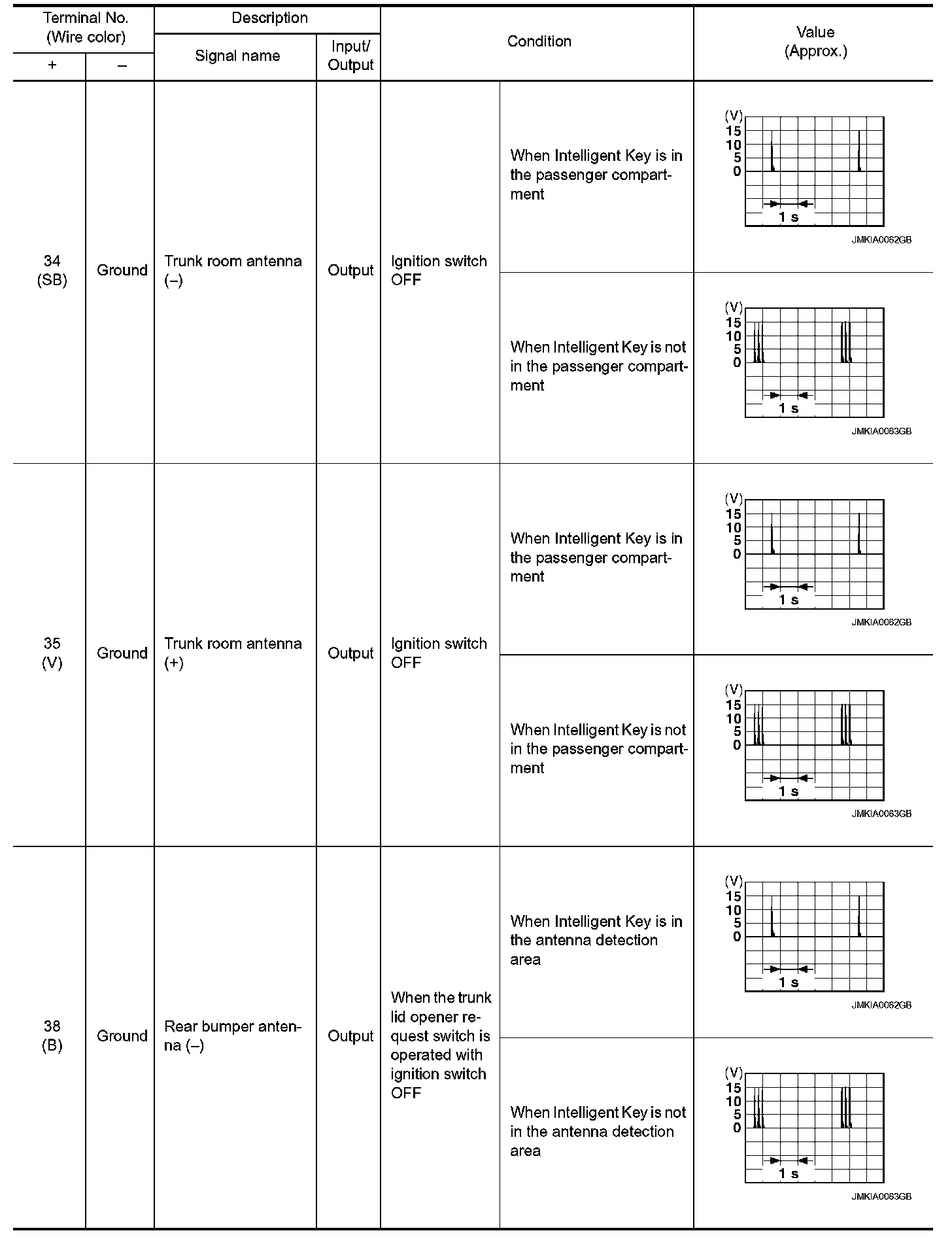

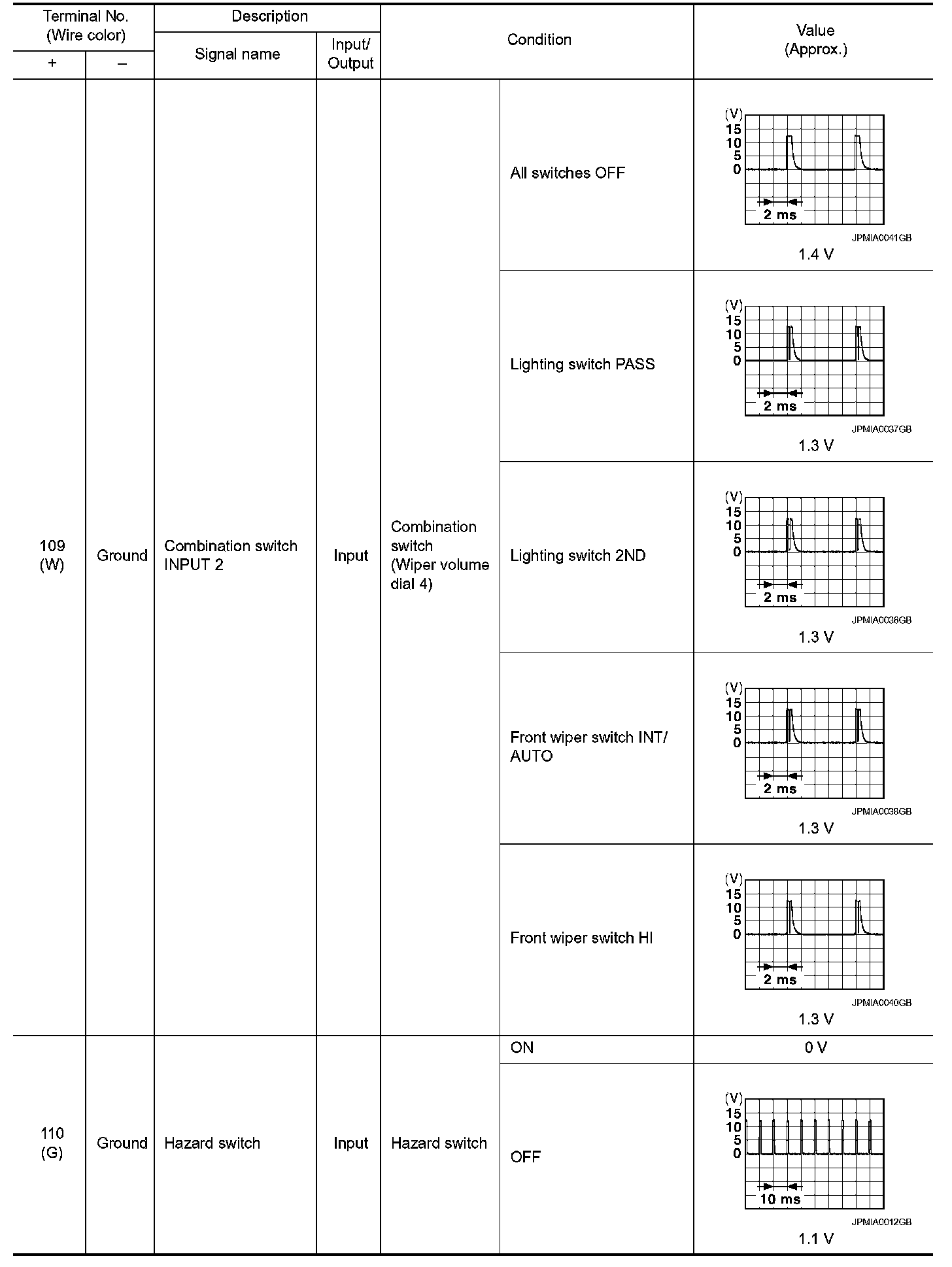

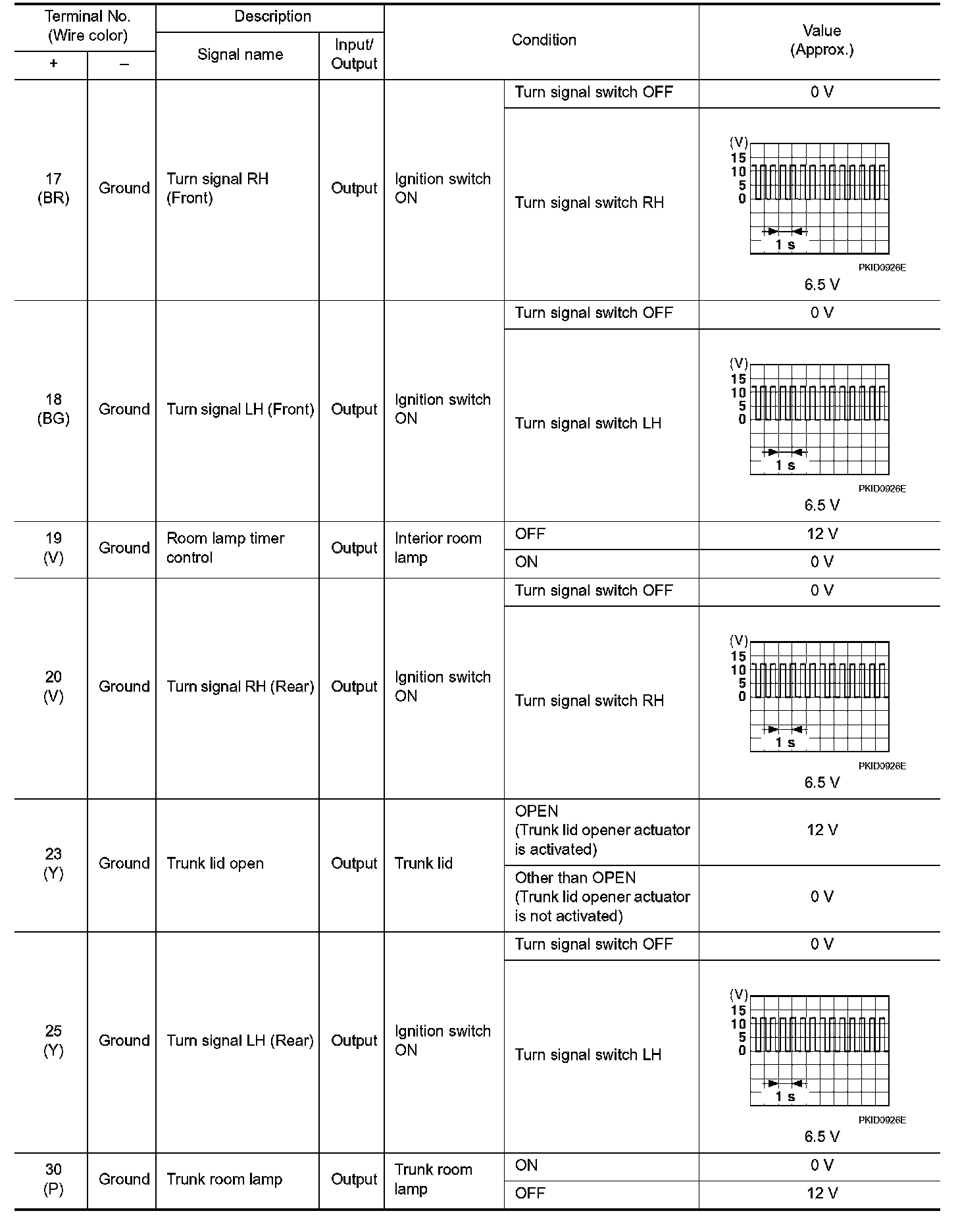

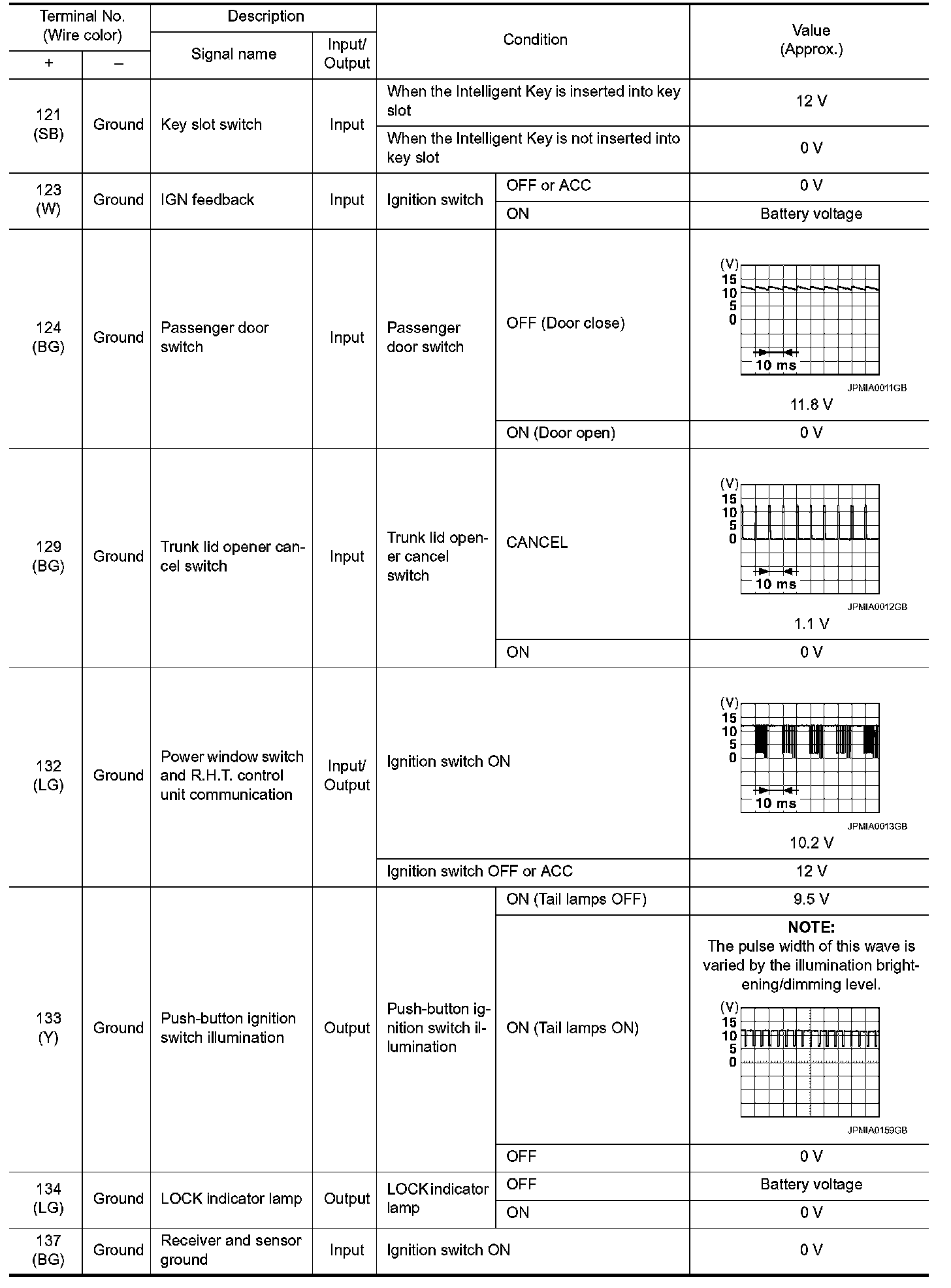

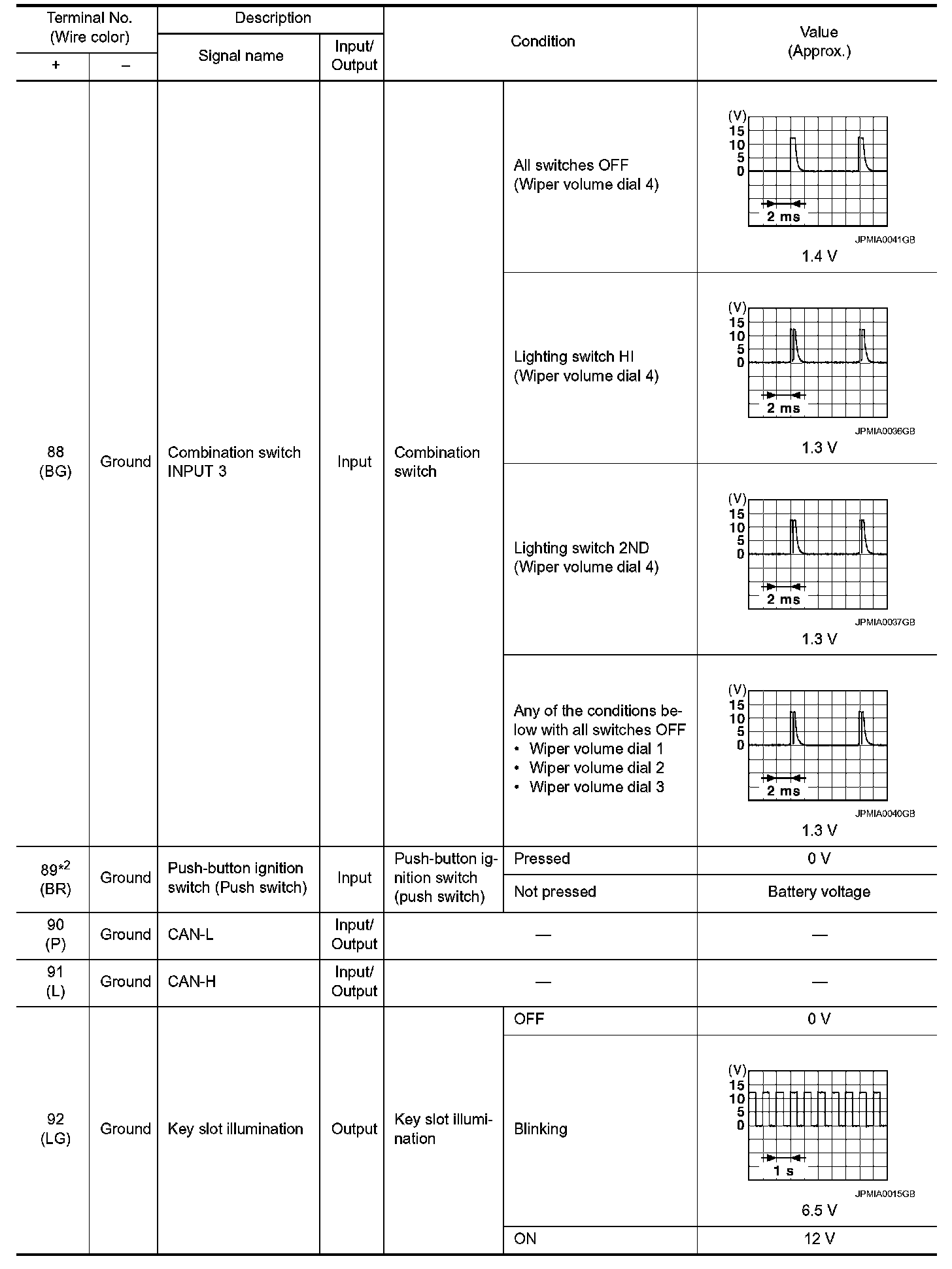

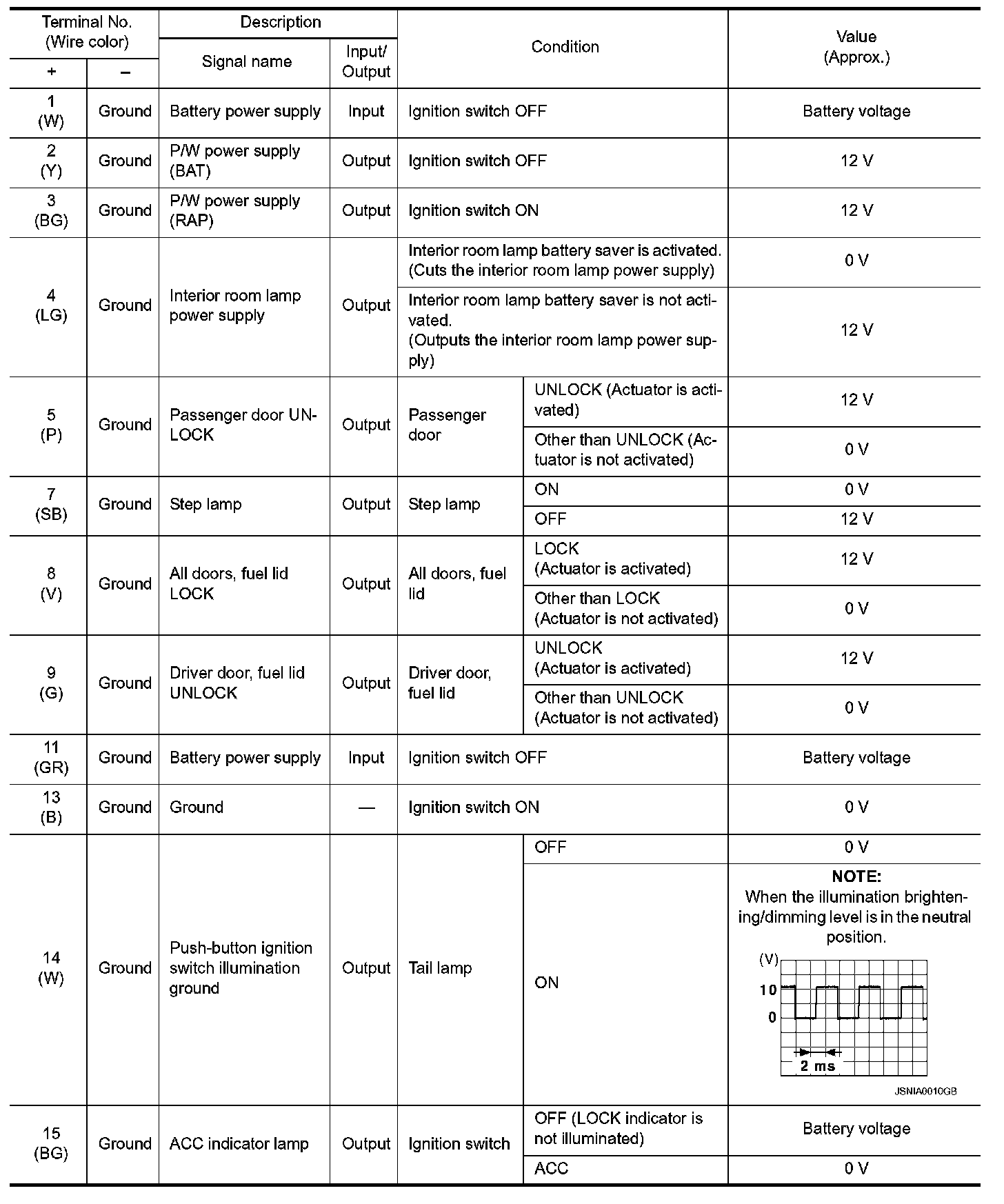

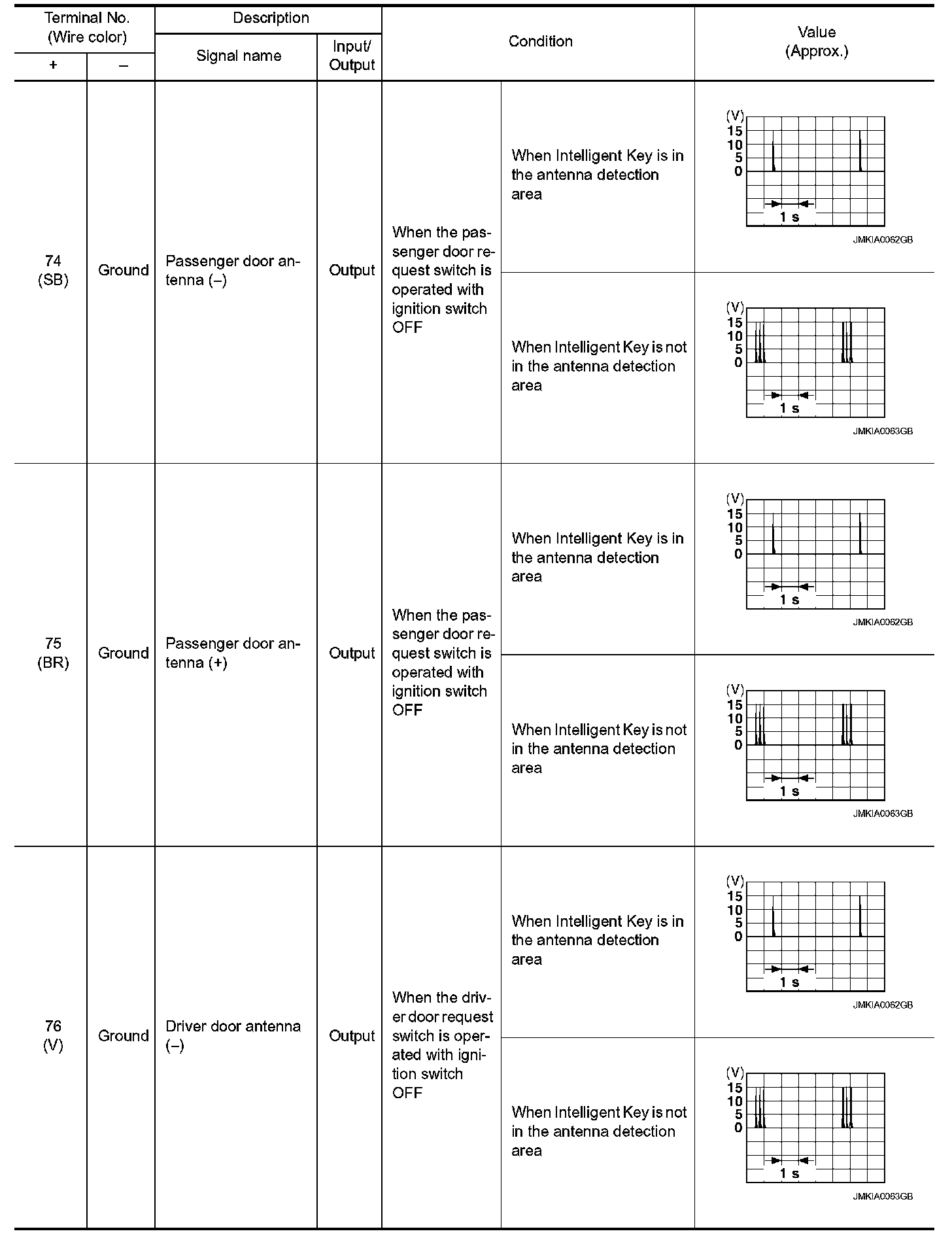

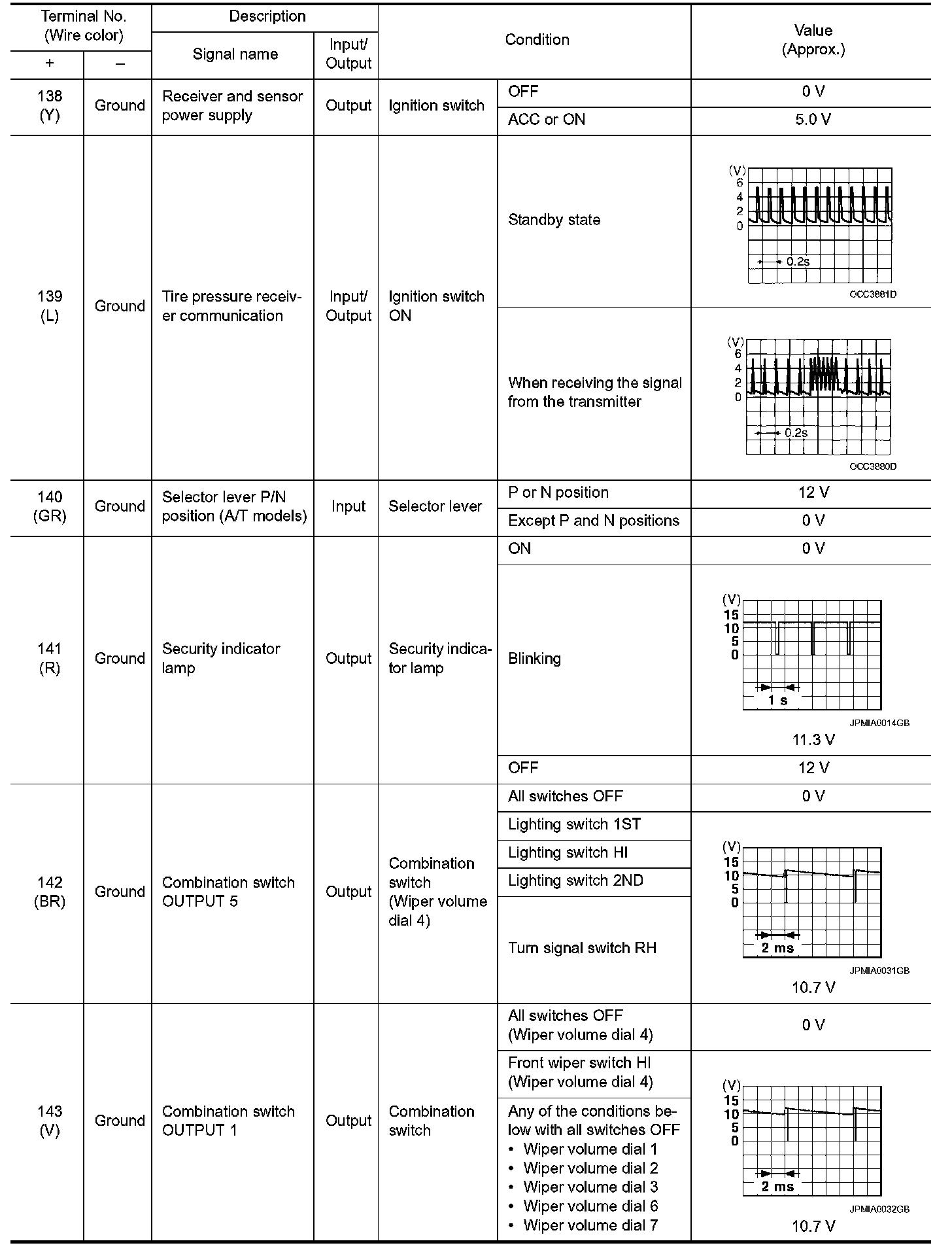

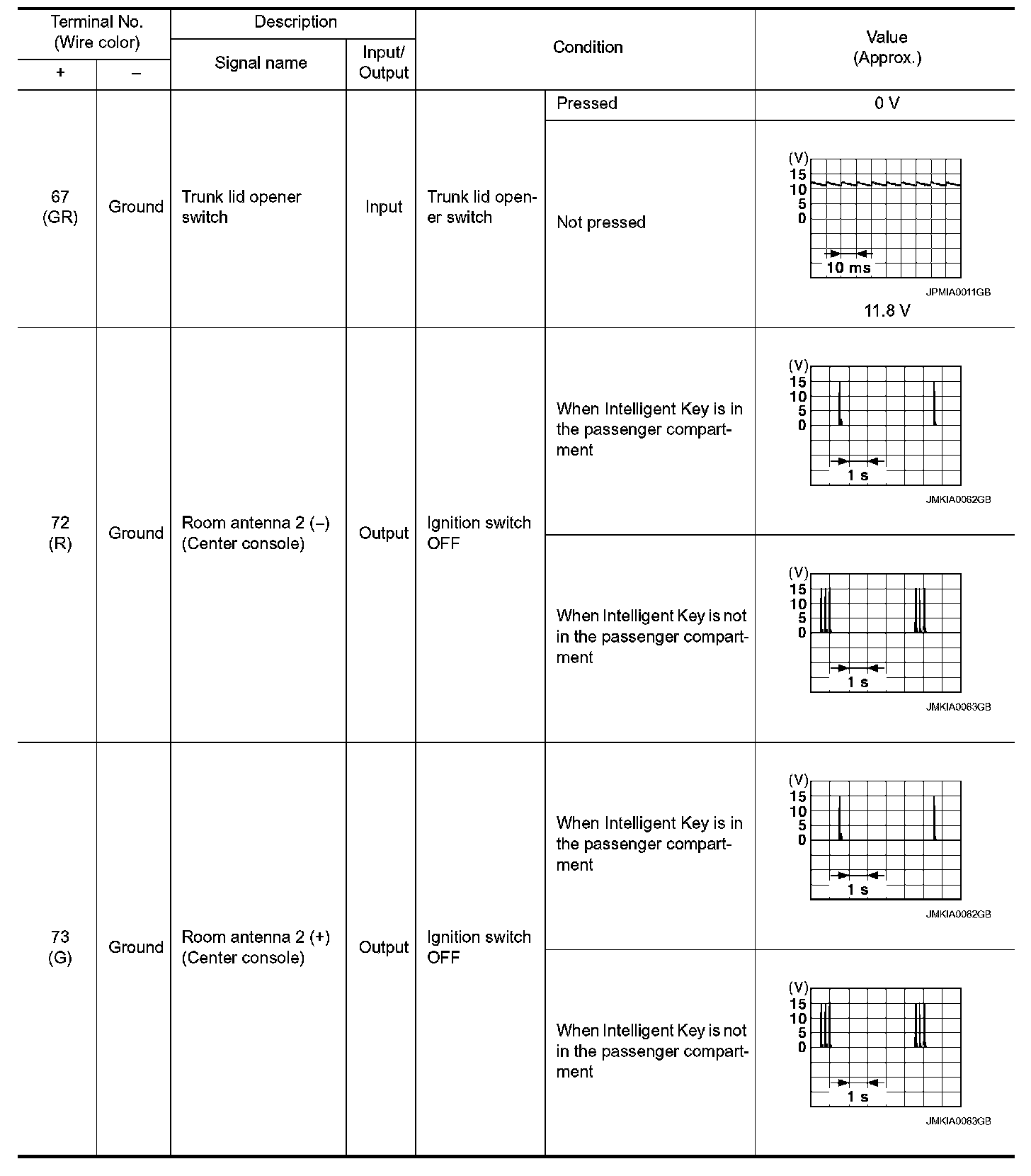

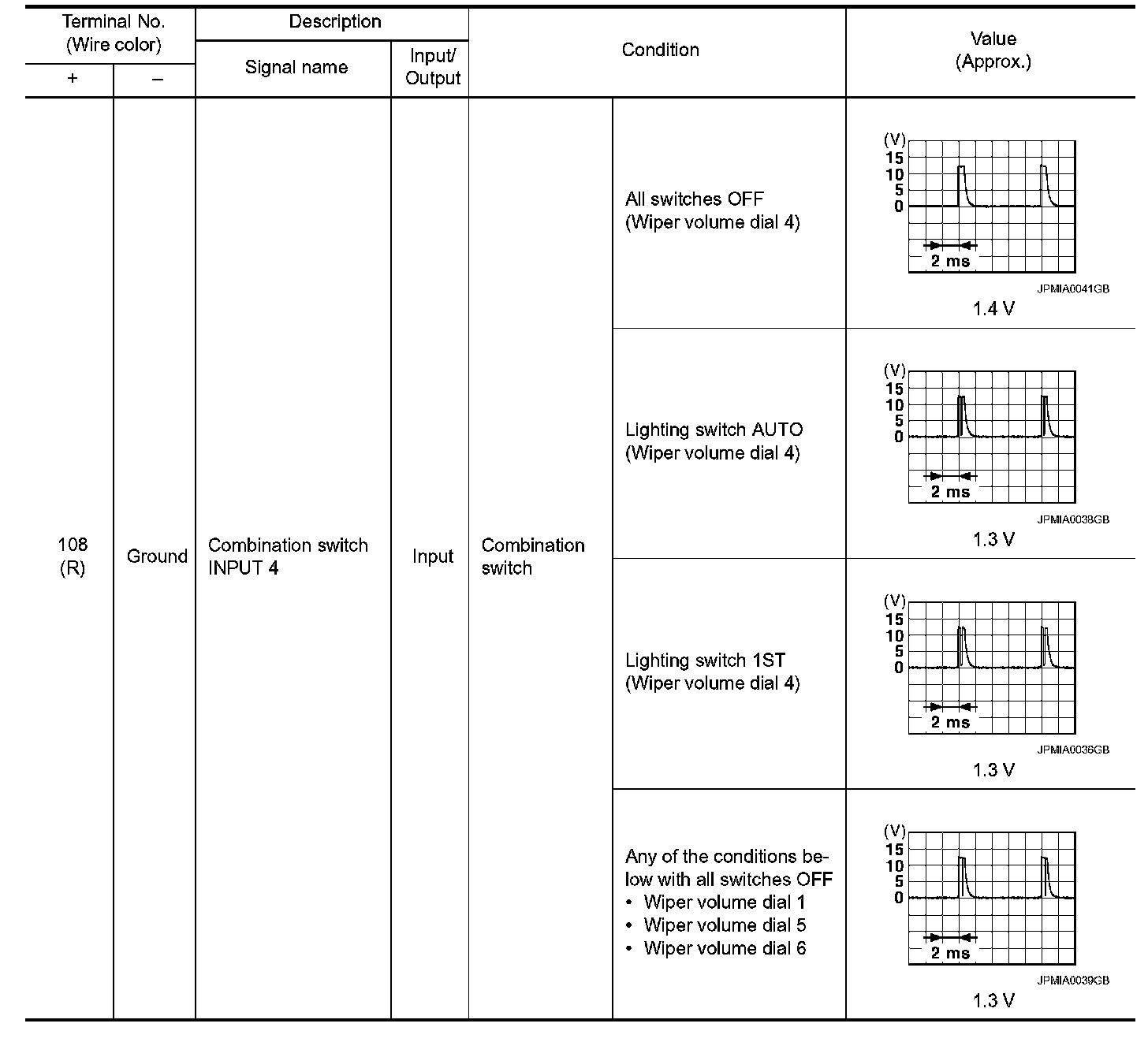

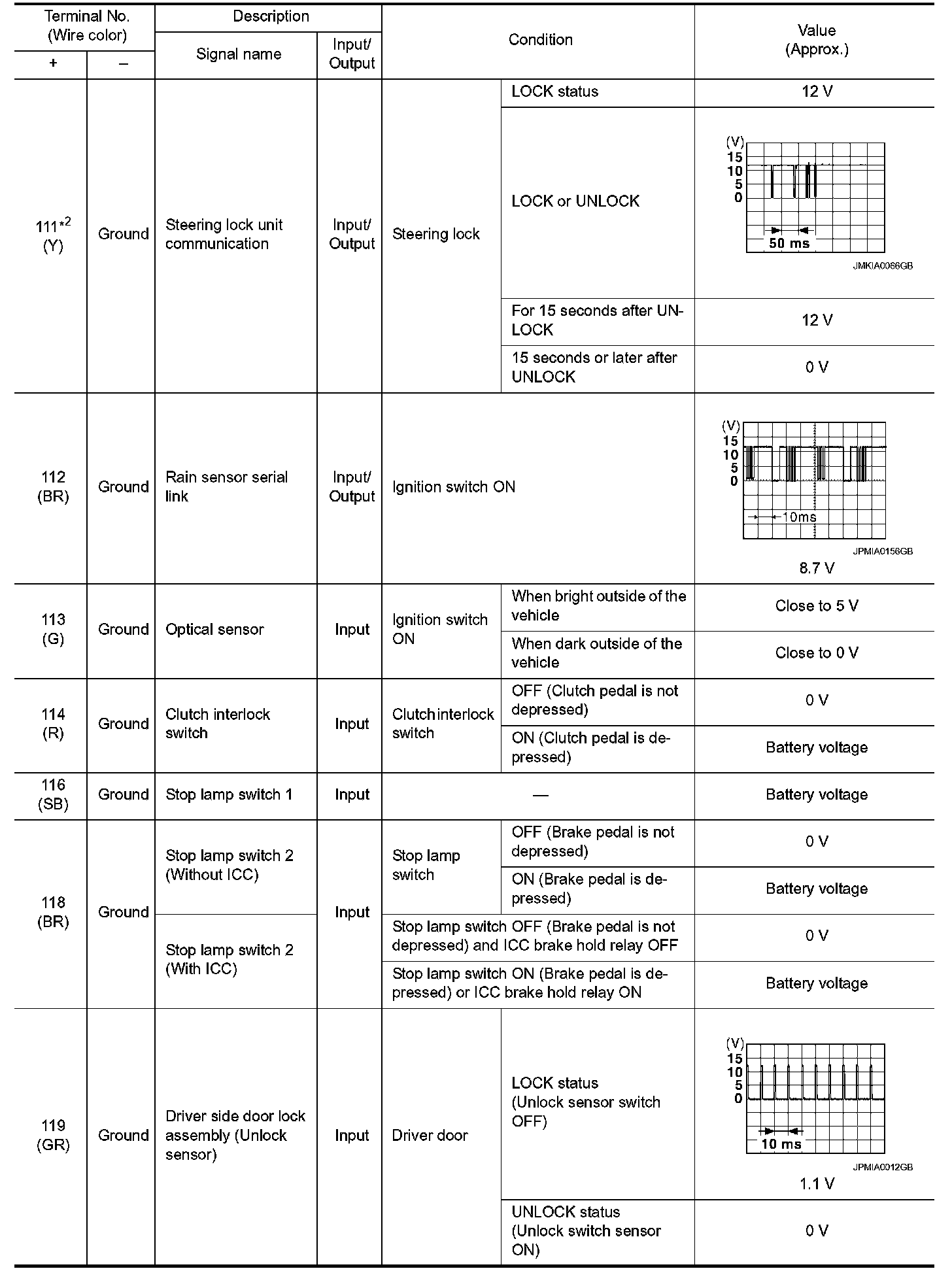

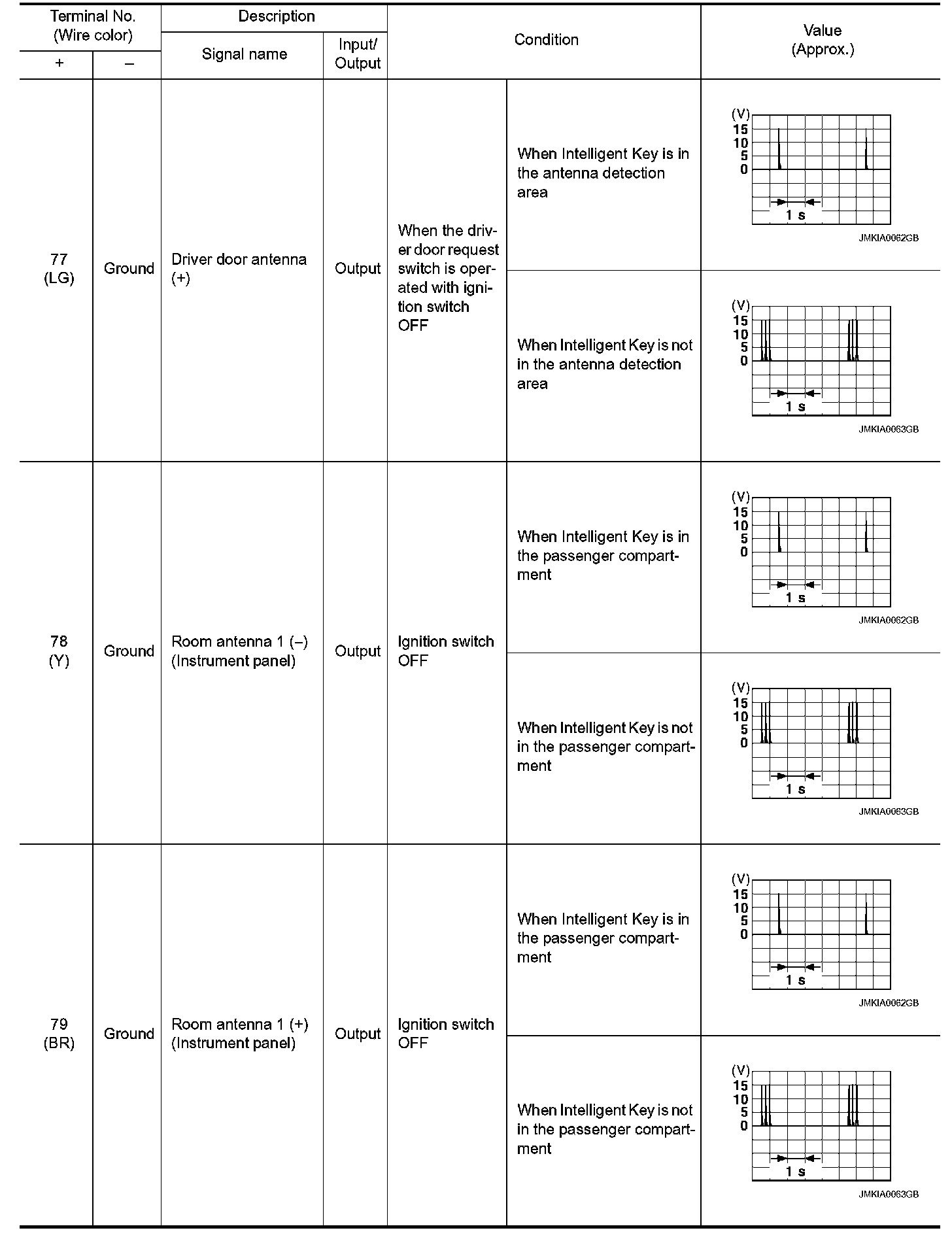

PHYSICAL VALUES






















































































*1: Without steering lock unit
*2: With steering lock unit
