Front Wiper Motor Ground Circuit

FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure


1. CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT

1.Turn the ignition switch OFF.
2.Disconnect front wiper motor connector.

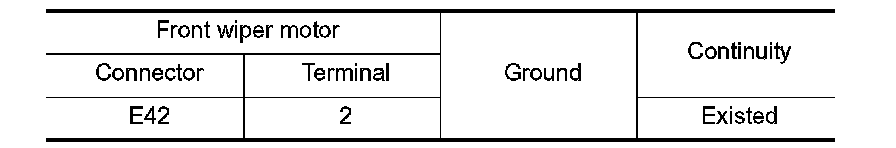

3.Check continuity between front wiper motor harness connector and ground.





Does continuity exist?
YES- Front wiper motor ground circuit is normal.
NO- Repair the harnesses or connectors.
