Removal and Installation




QUARTER GLASS MOLDING

Removal and Installation

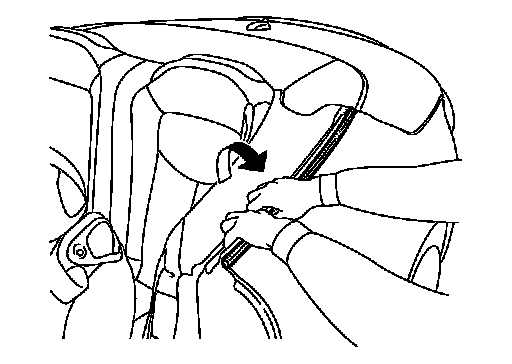

1.Fully open quarter glass.





2.Twists and pull up to upper side, and then remove quarter glass molding.

INSTALLATION

Install in the reverse order of removal.
