Power Window Main Switch

POWER WINDOW MAIN SWITCH

Reference Value

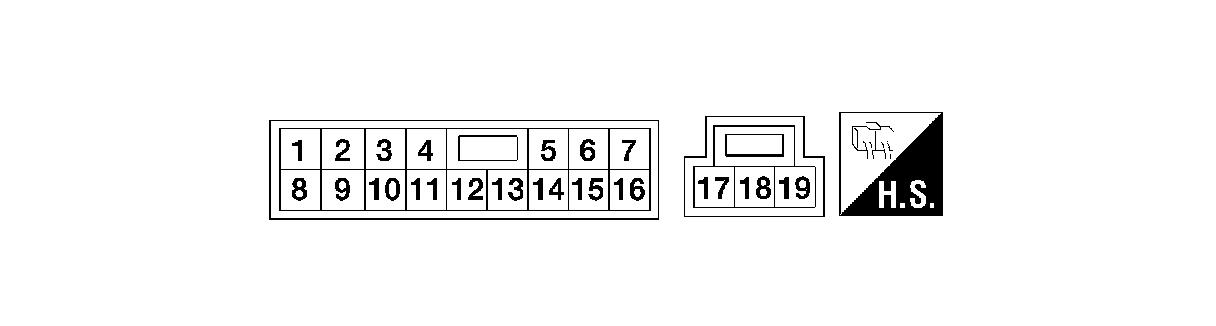

TERMINAL LAYOUT

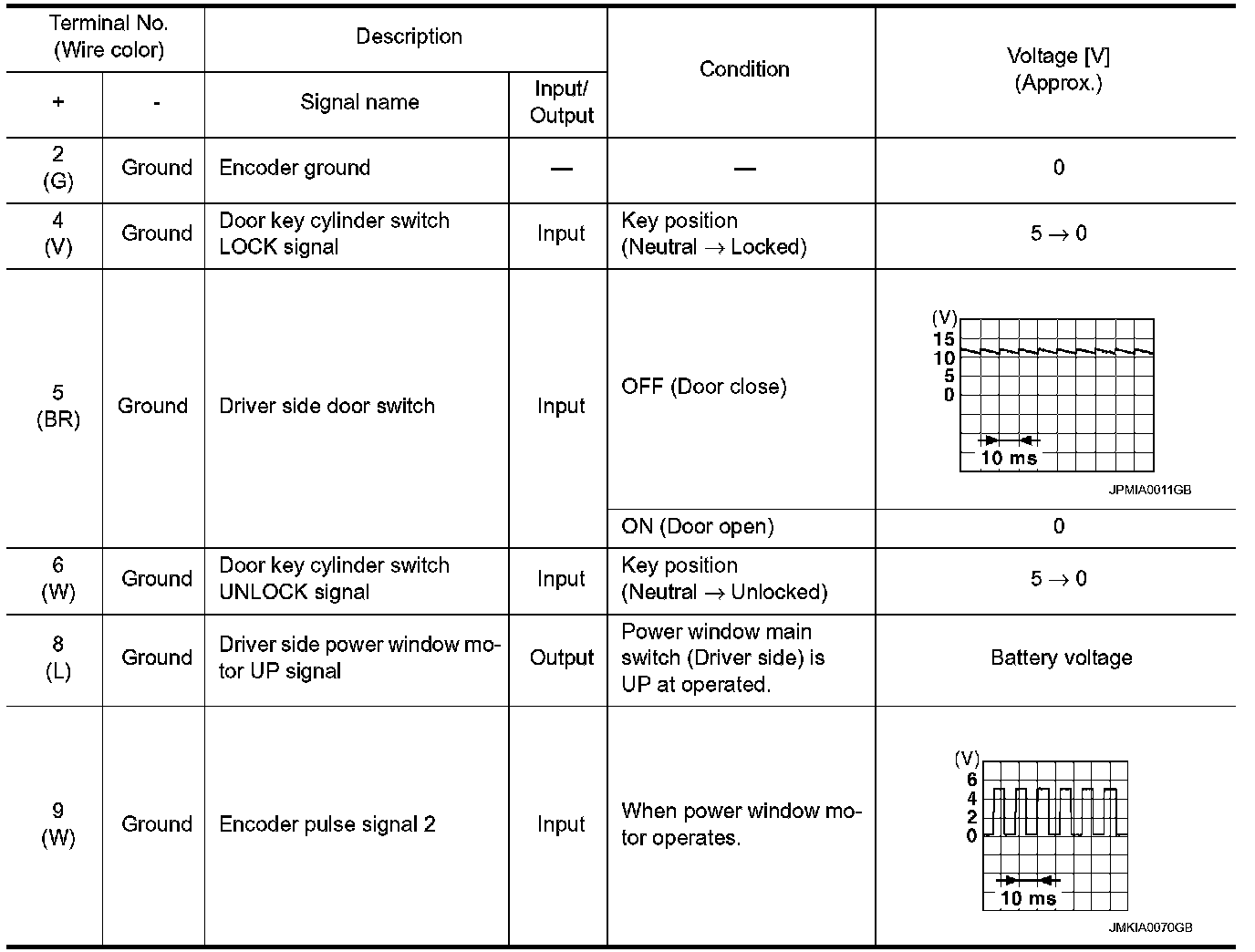

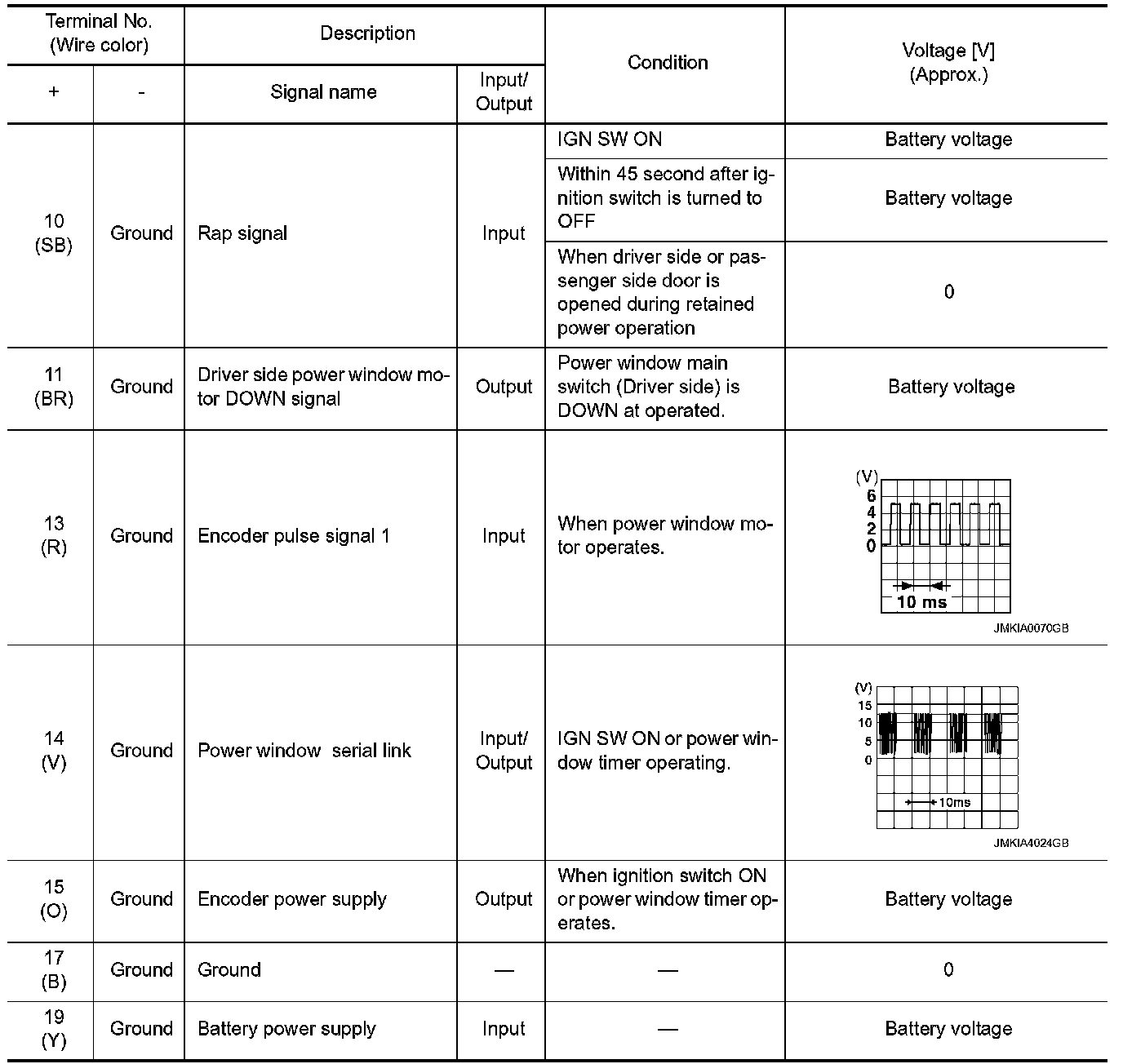

PHYSICAL VALUES

POWER WINDOW MAIN SWITCH
