Power Window Switch: Service and Repair

POWER WINDOW MAIN SWITCH

Removal and Installation


REMOVAL

1.Remove the door finisher.
Removal and Installation.

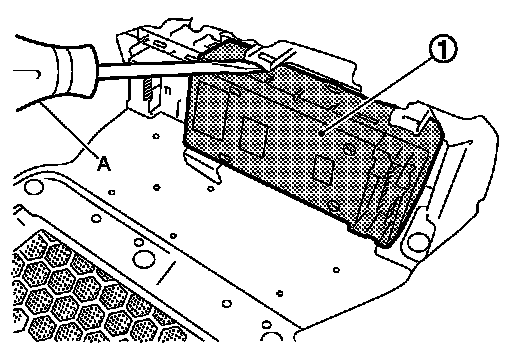

2.Power window main switch (1) is removed from door finisher using flat-bladed screw driver (A) etc.






CAUTION:
Do not fold the pawl of power window main switch finisher.
NOTE:
The same procedure is also performed for power window subswitch.

INSTALLATION

Install in the reverse order of removal.
NOTE:
Power window main switch is exchanged or is detached it is necessary to do the initialization procedure.
Special Repair Requirement.
