Symptom Related Diagnostic Procedures

SYSTEM SYMPTOM

Symptom Table

- The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.
- Perform diagnoses of symptom table 1 before symptom table 2.

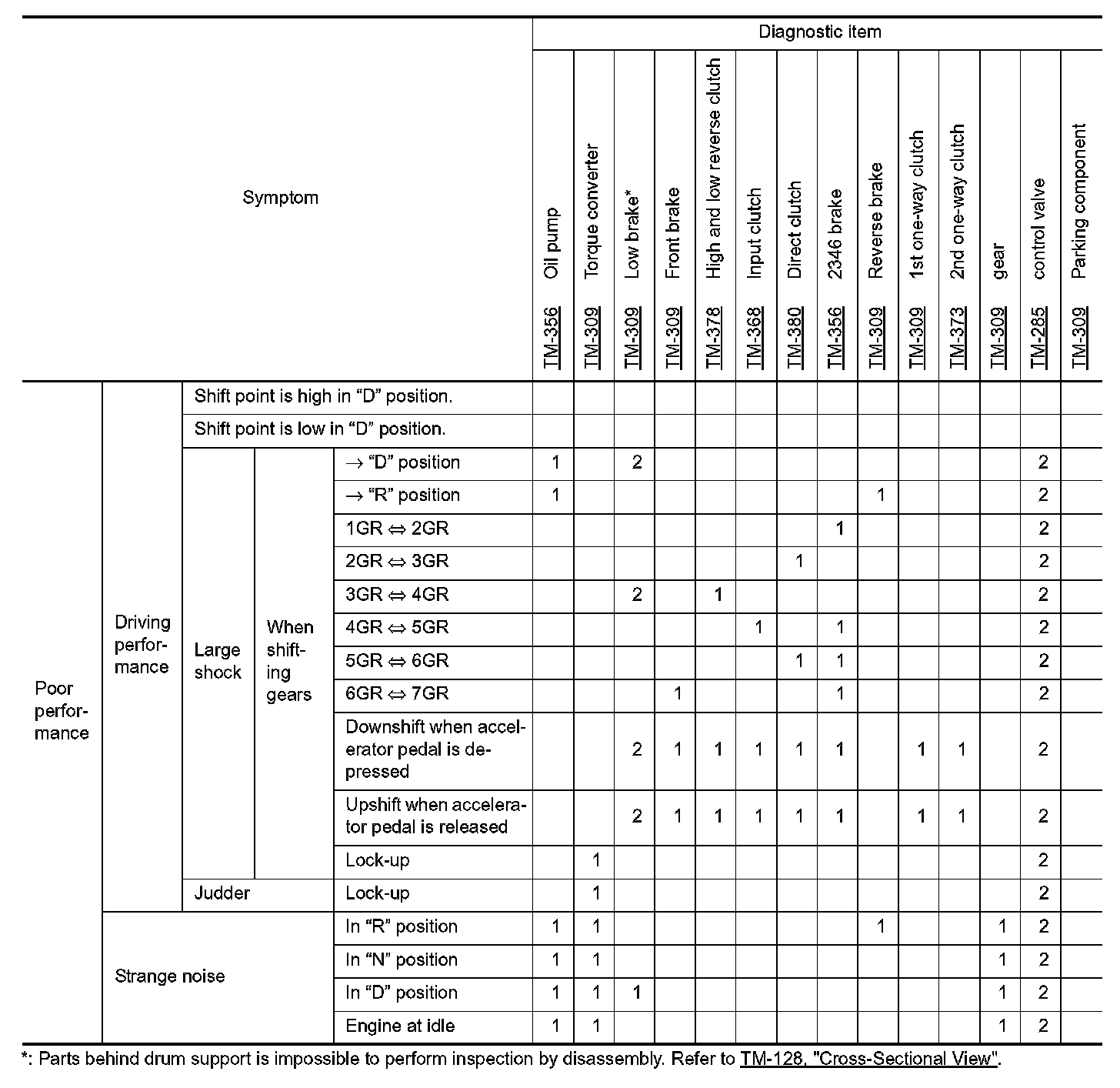

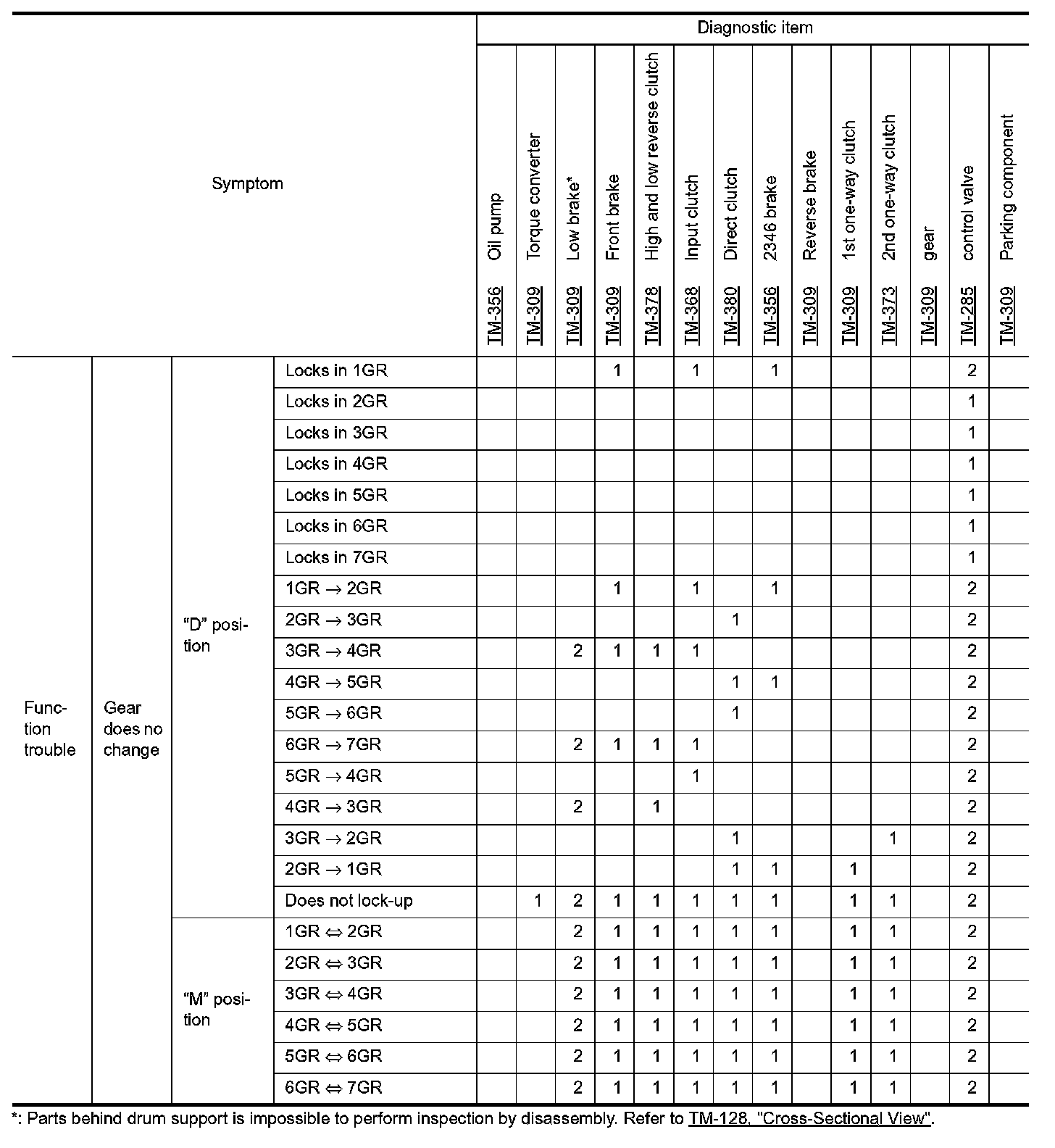

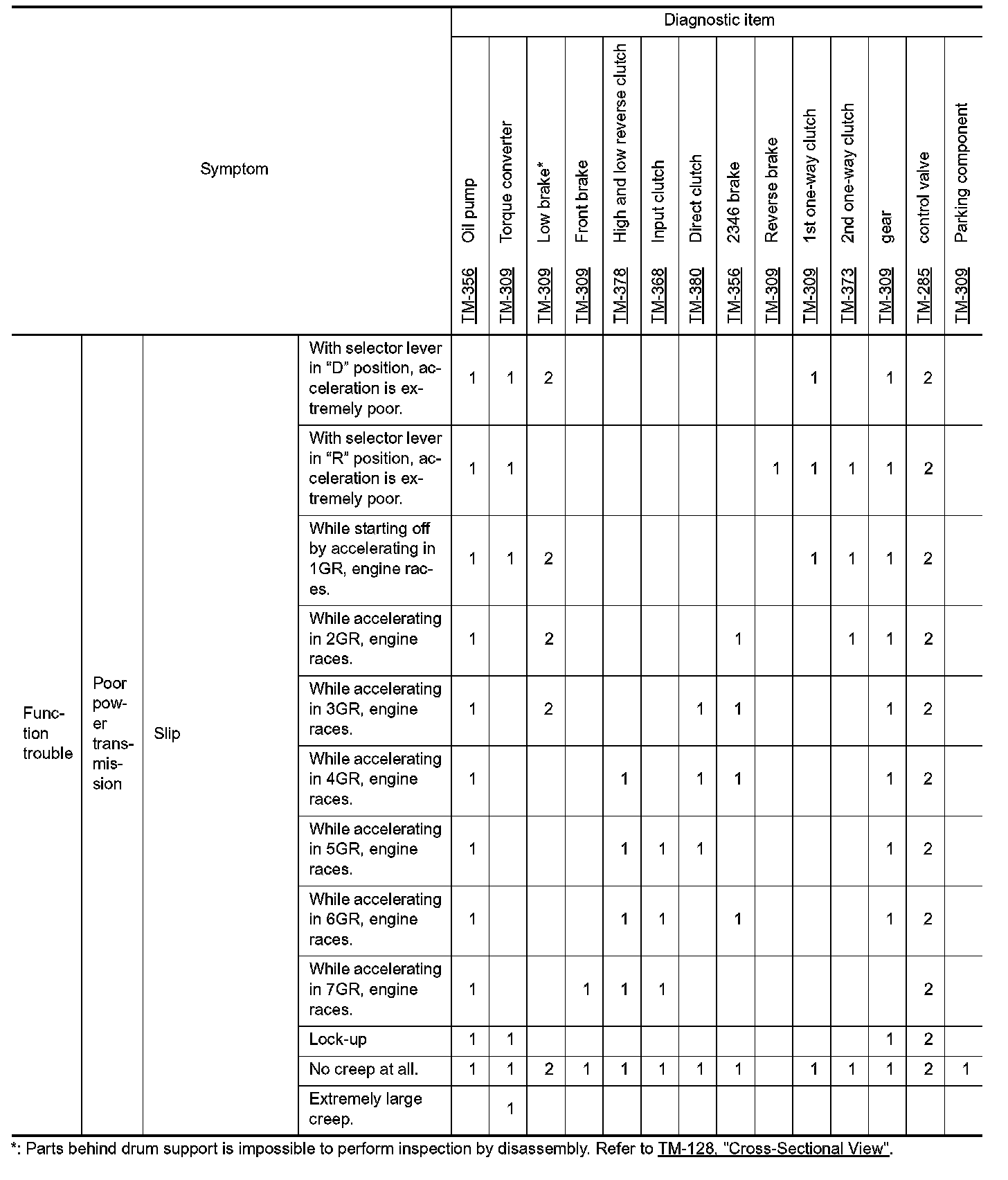

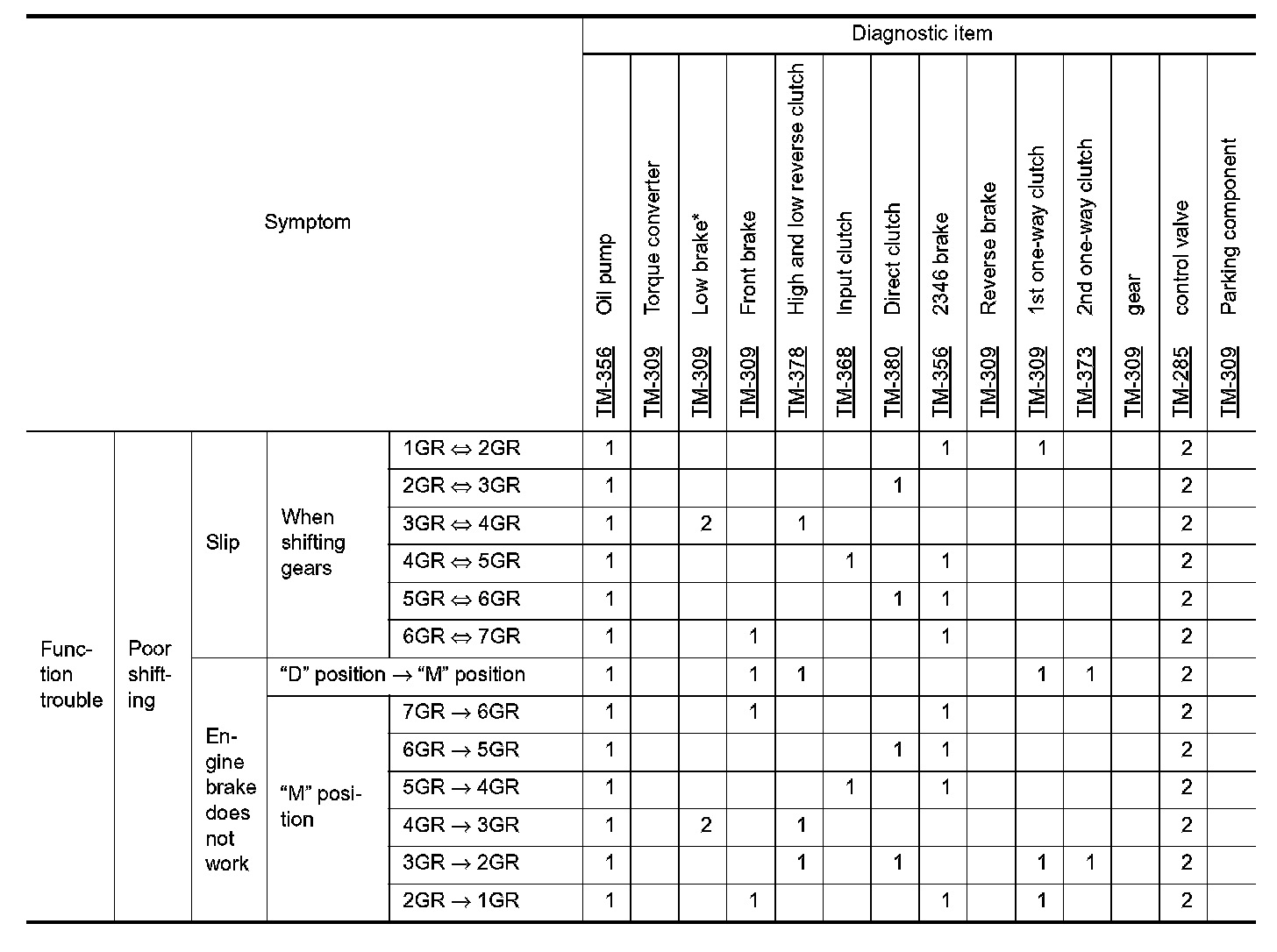

SYMPTOM TABLE 1

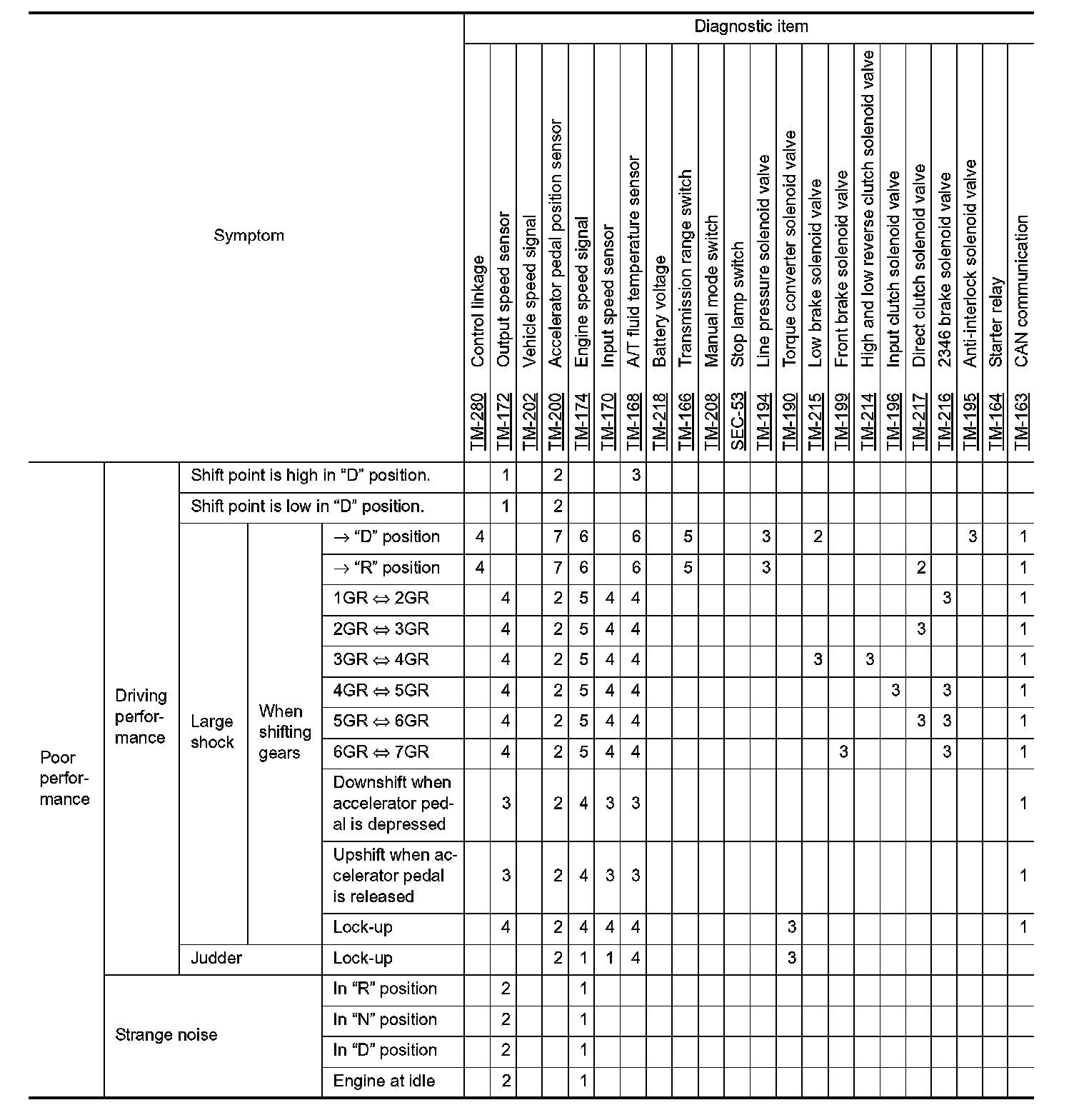

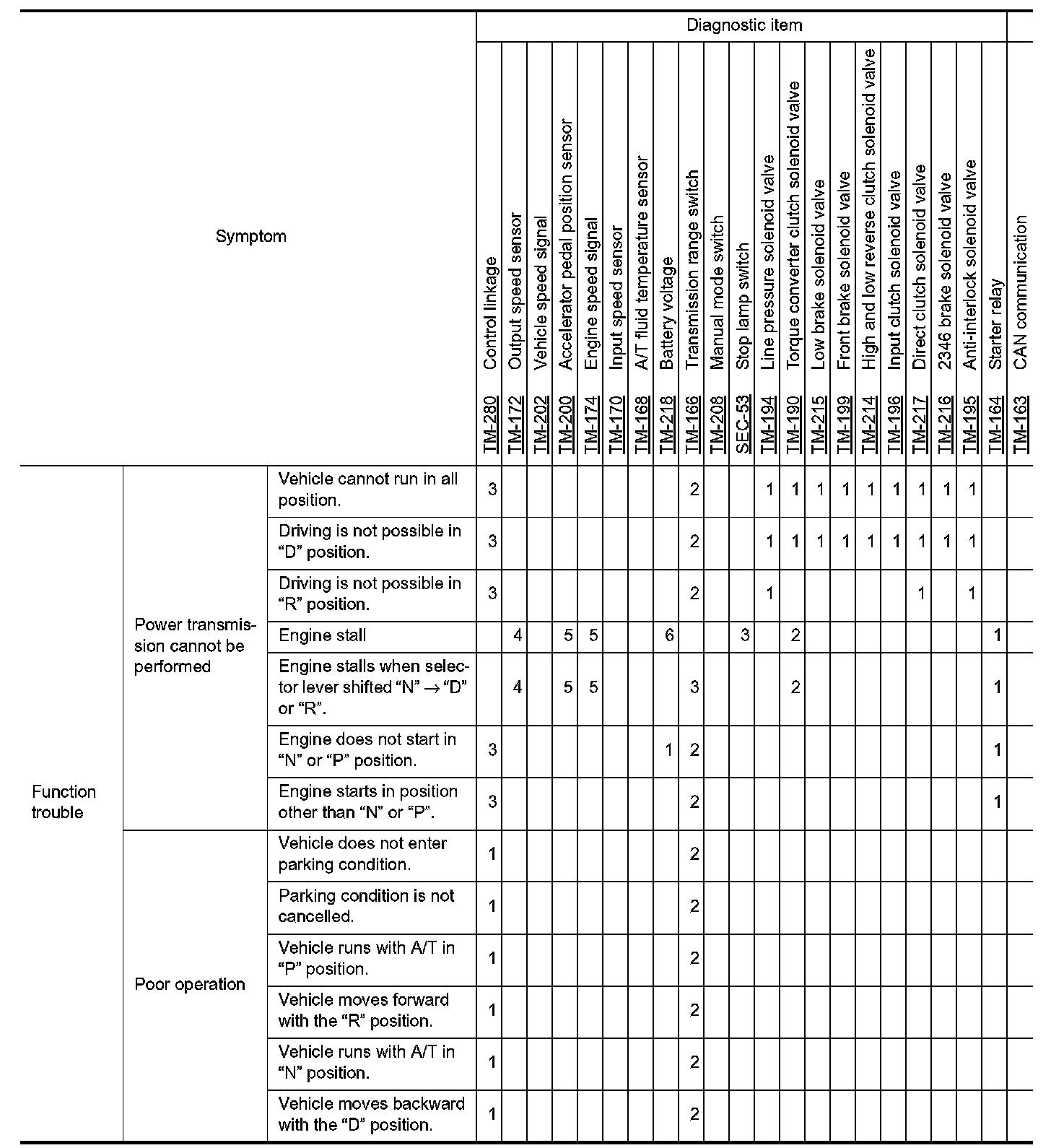

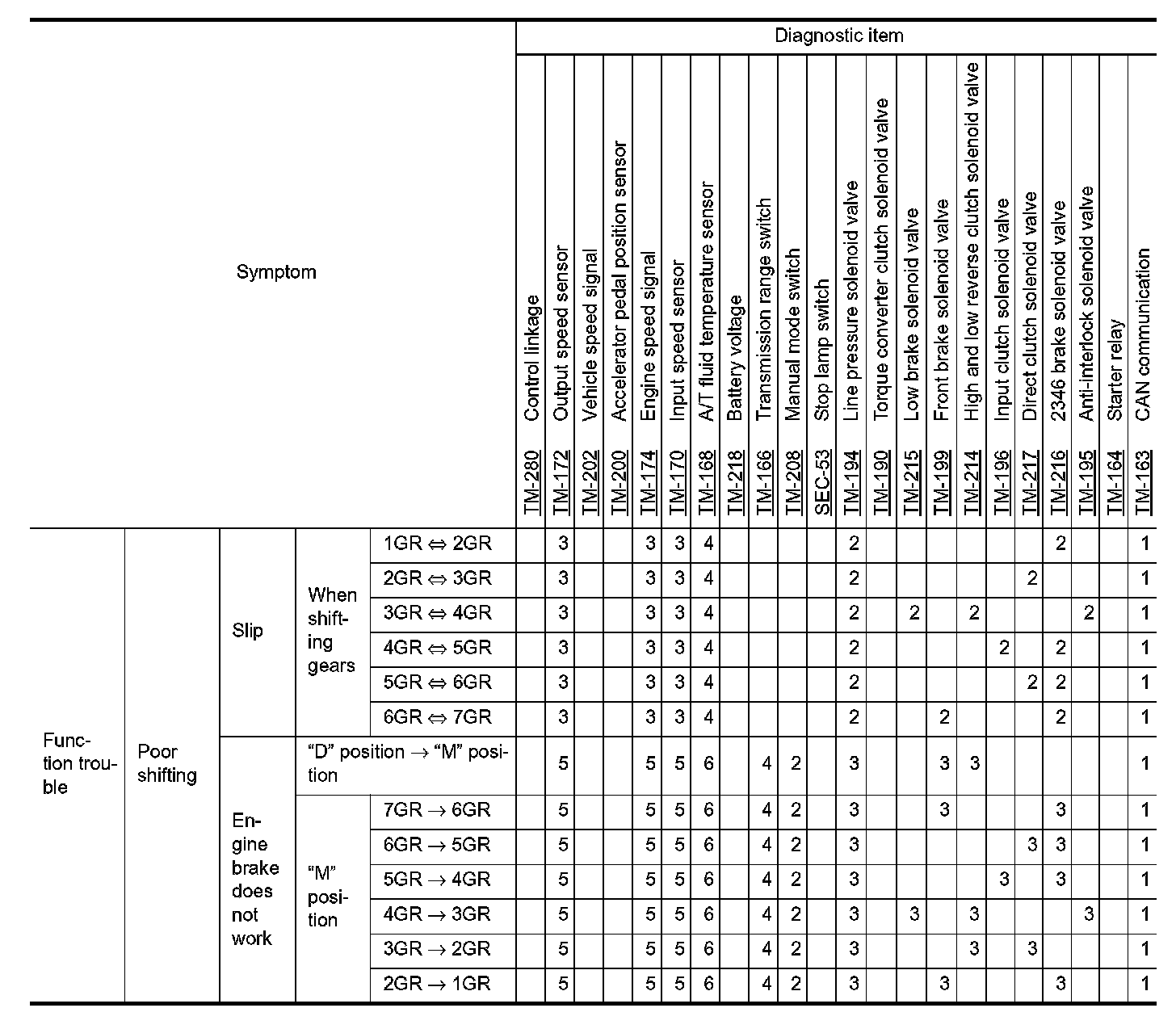

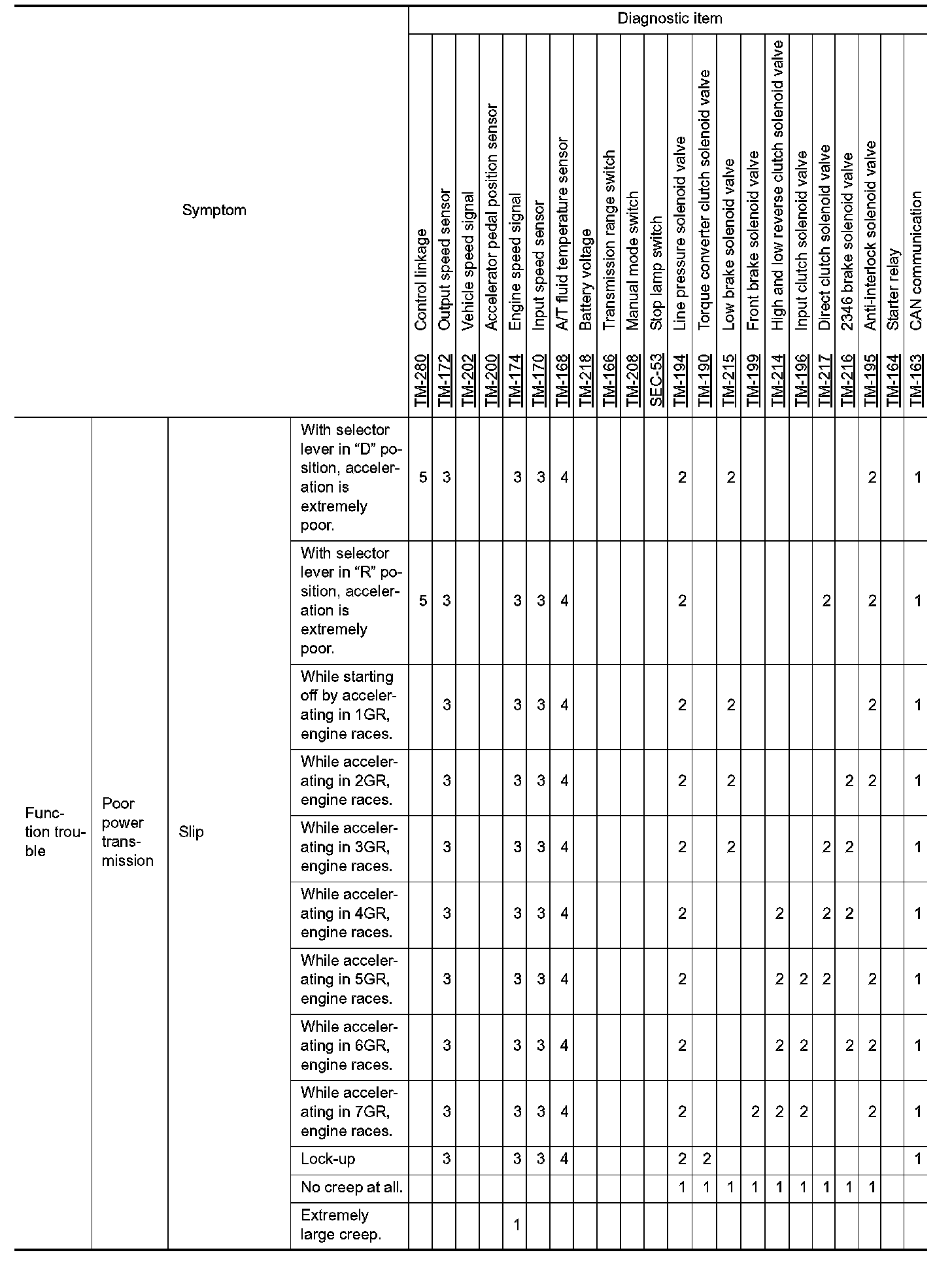

SYMPTOM TABLE 2
