Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (TCM)

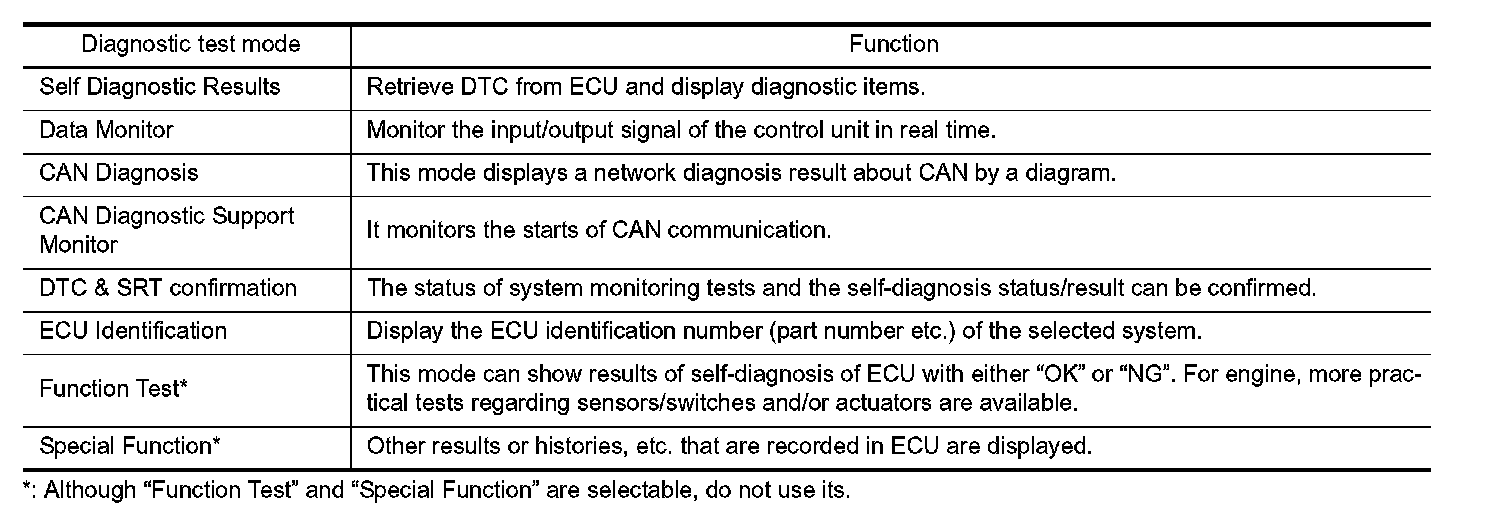

CONSULT-III Function (TRANSMISSION)


CONSULT-III APPLICATION ITEMS







SELF DIAGNOSTIC RESULTS

Testing and Inspection.
IGN Counter
The IGN counter is indicated in Freeze frame data (FFD) and indicates the number of times that the ignition switch is turned ON after returning to the normal state from DTC.
- CAN malfunction
- The number is 0 when a malfunction is detected now.
- The number increases like 1 to 2 to 3...38 to 39 after returning to the normal condition whenever ignition switch OFF to ON.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
- Other than CAN malfunction
- The number is 0 when a malfunction is detected now.
- The number increases like 1 to 2 to 3...254 to 255 after returning to the normal condition whenever ignition switch OFF to ON.
- The number is fixed to255 until the self-diagnosis results are erased if it is over 255.

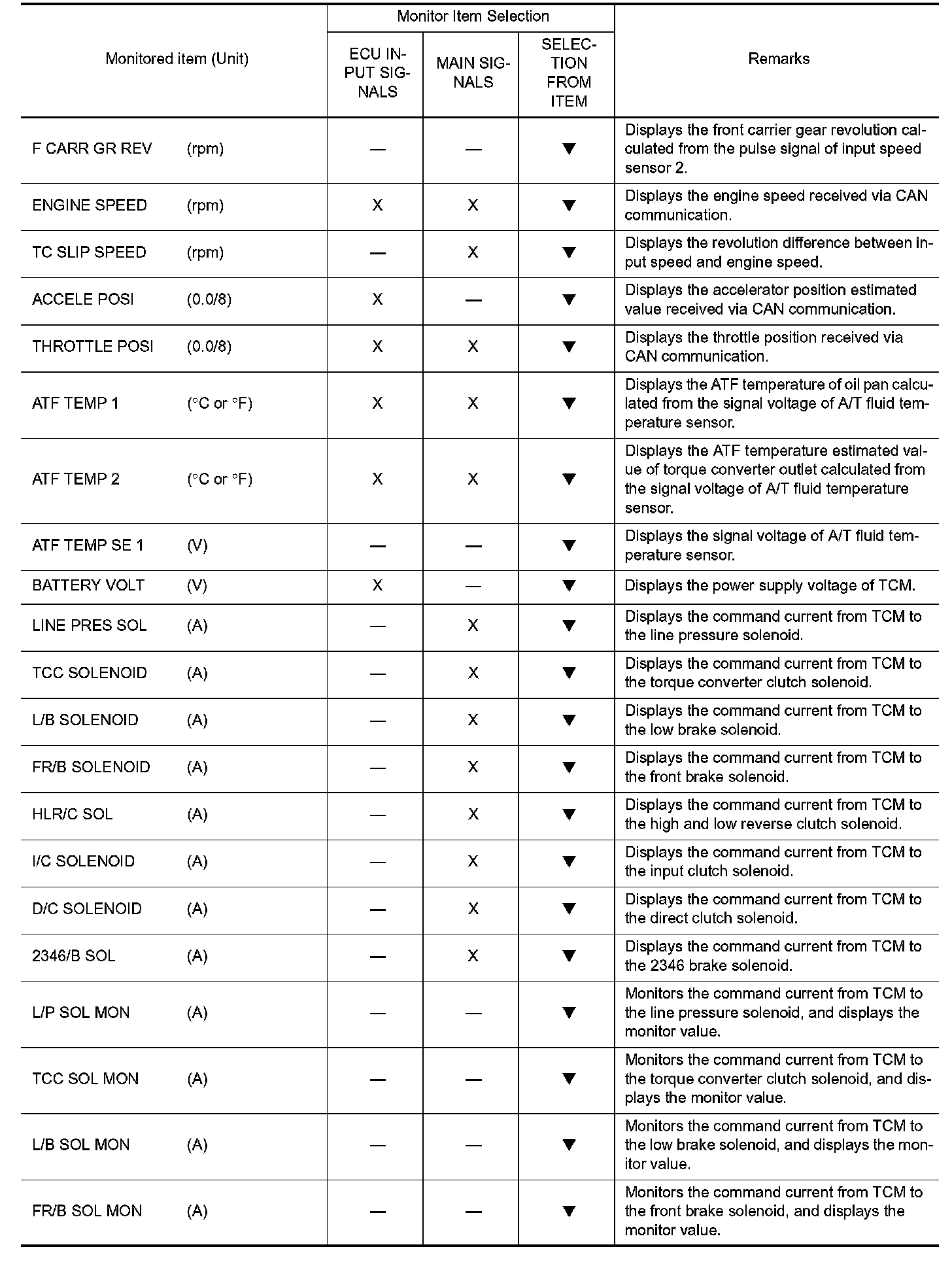

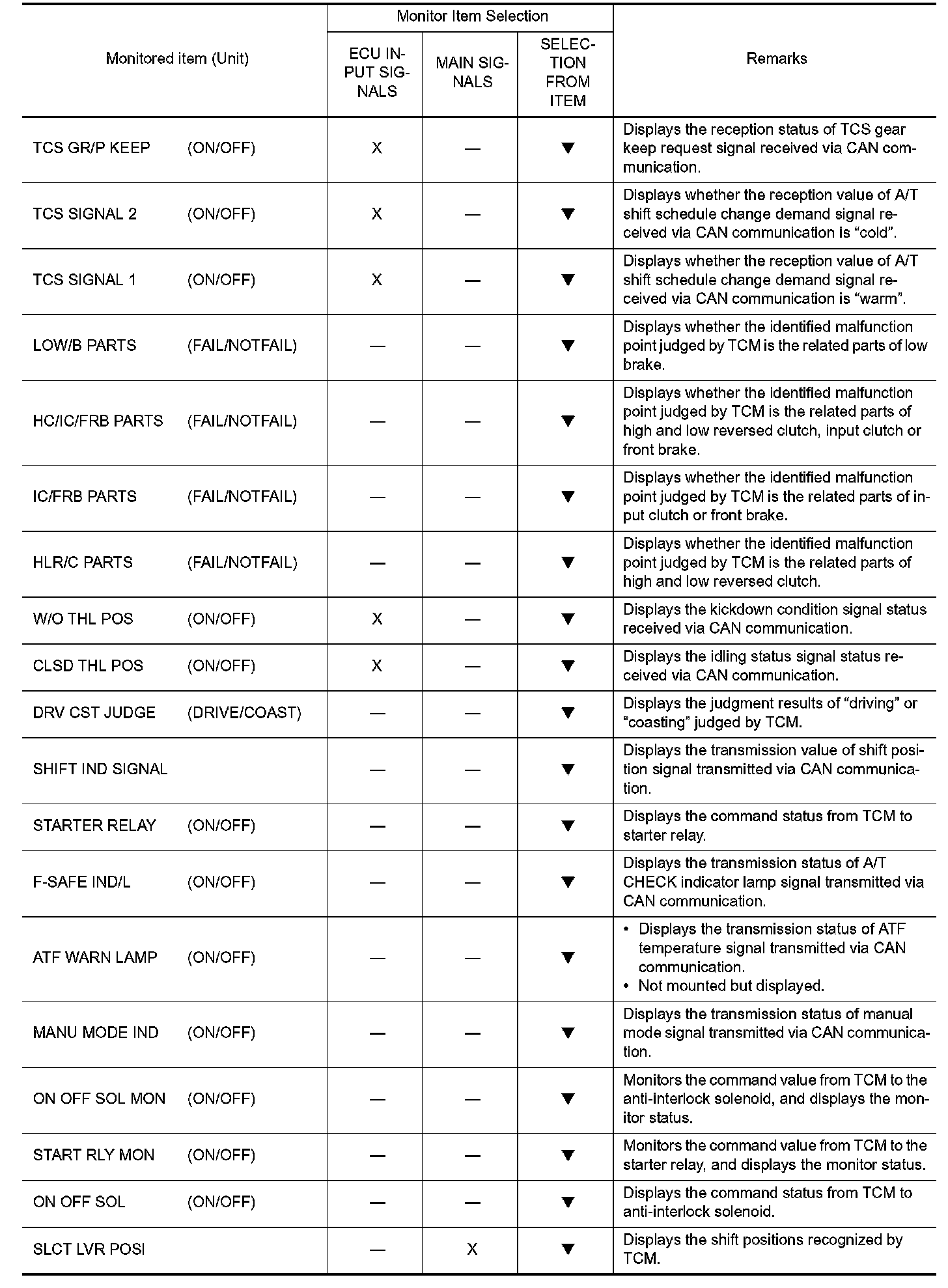

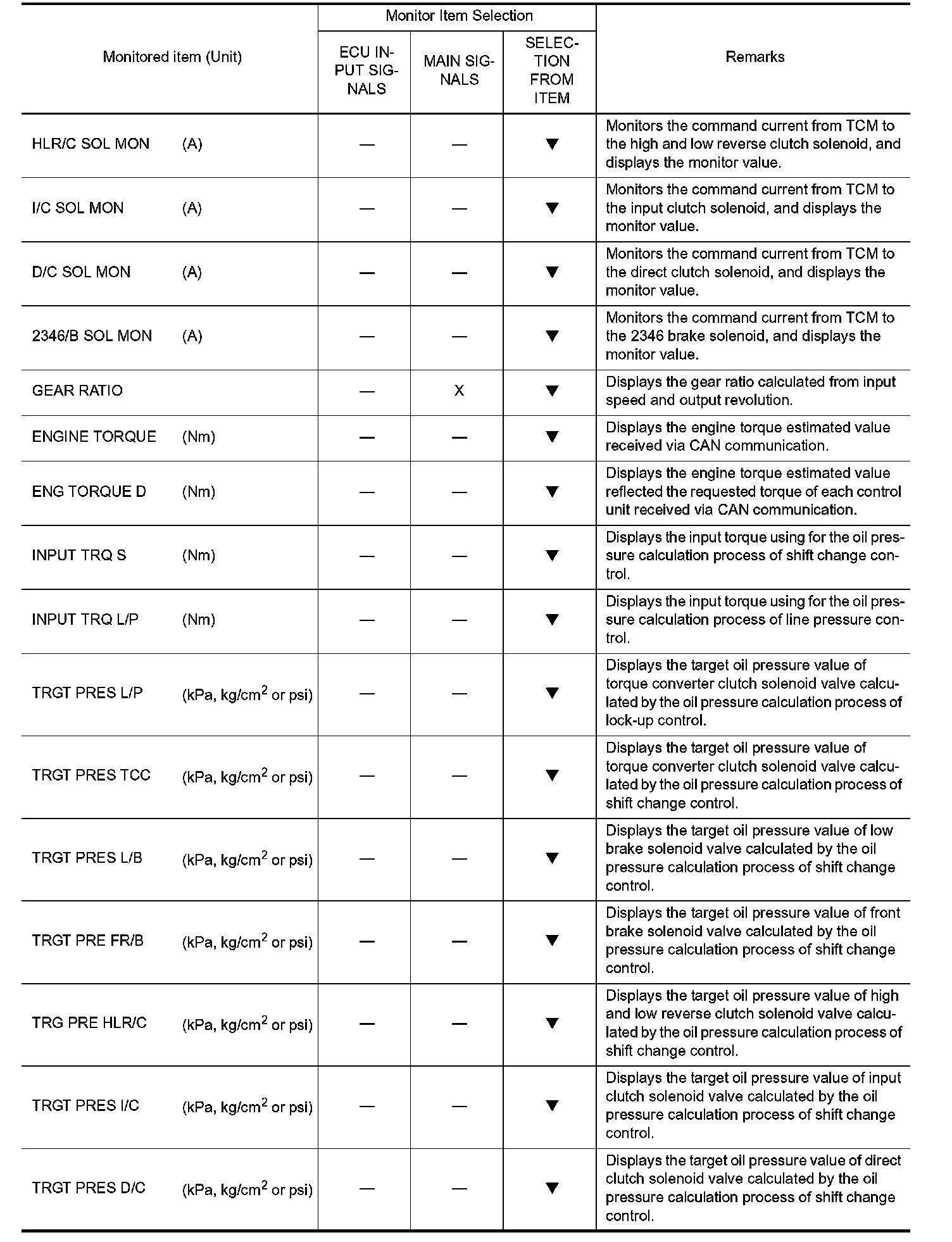

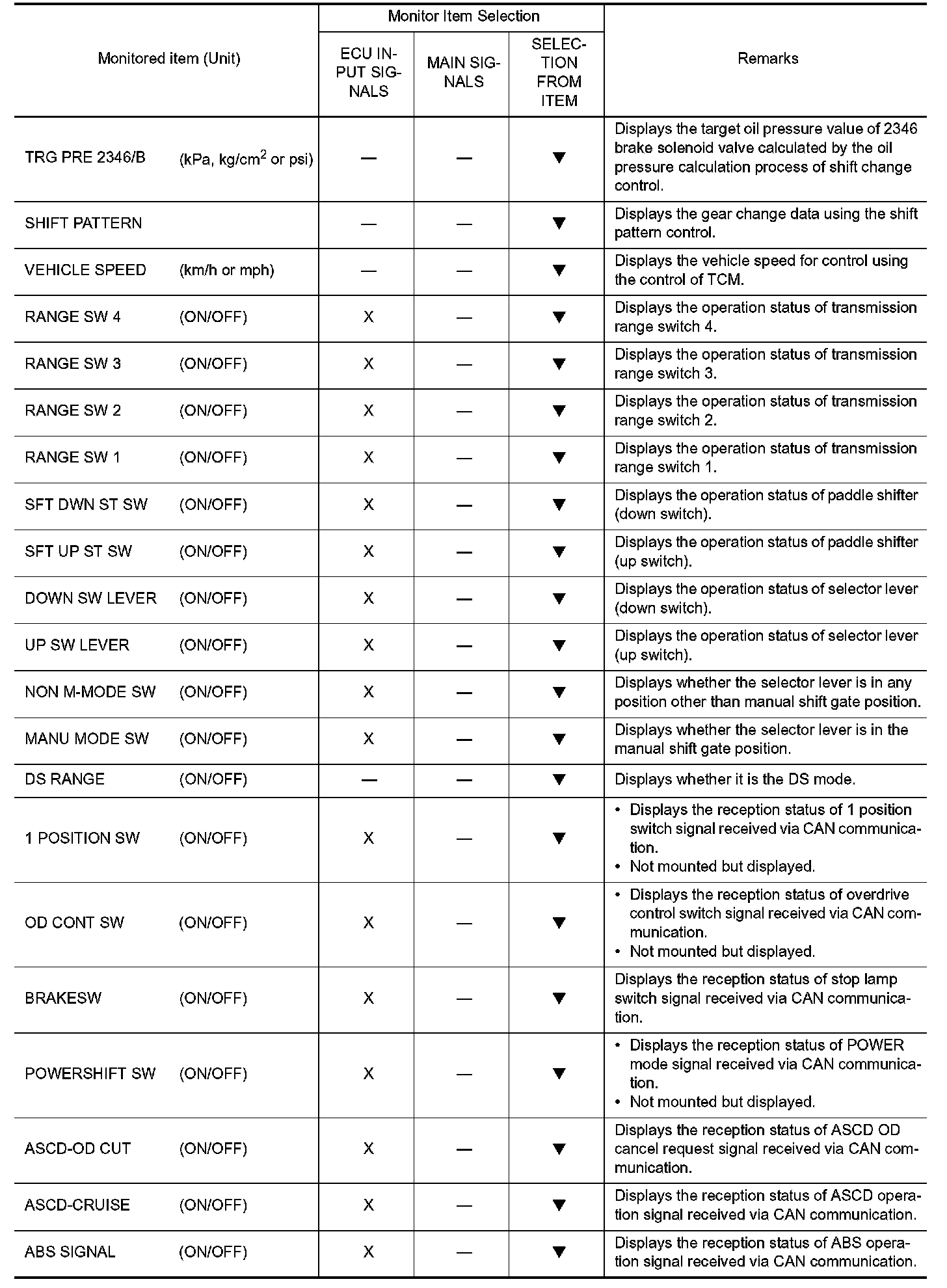

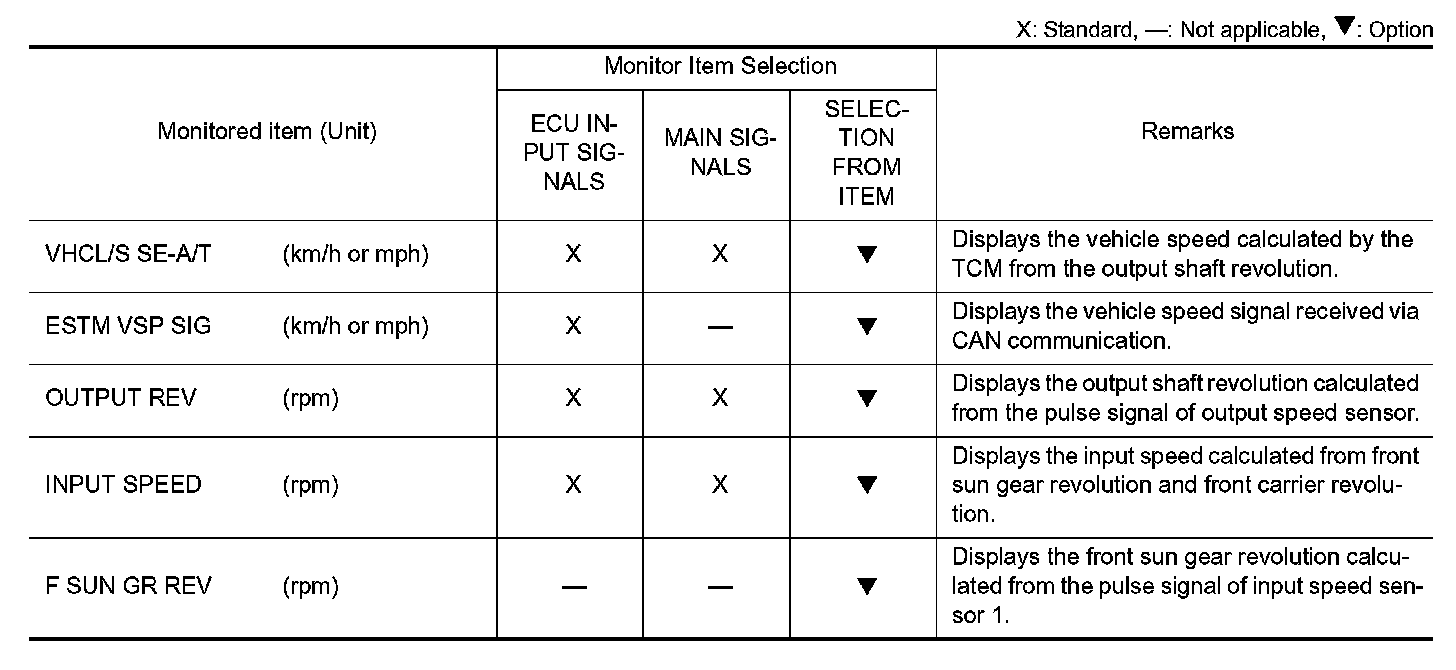

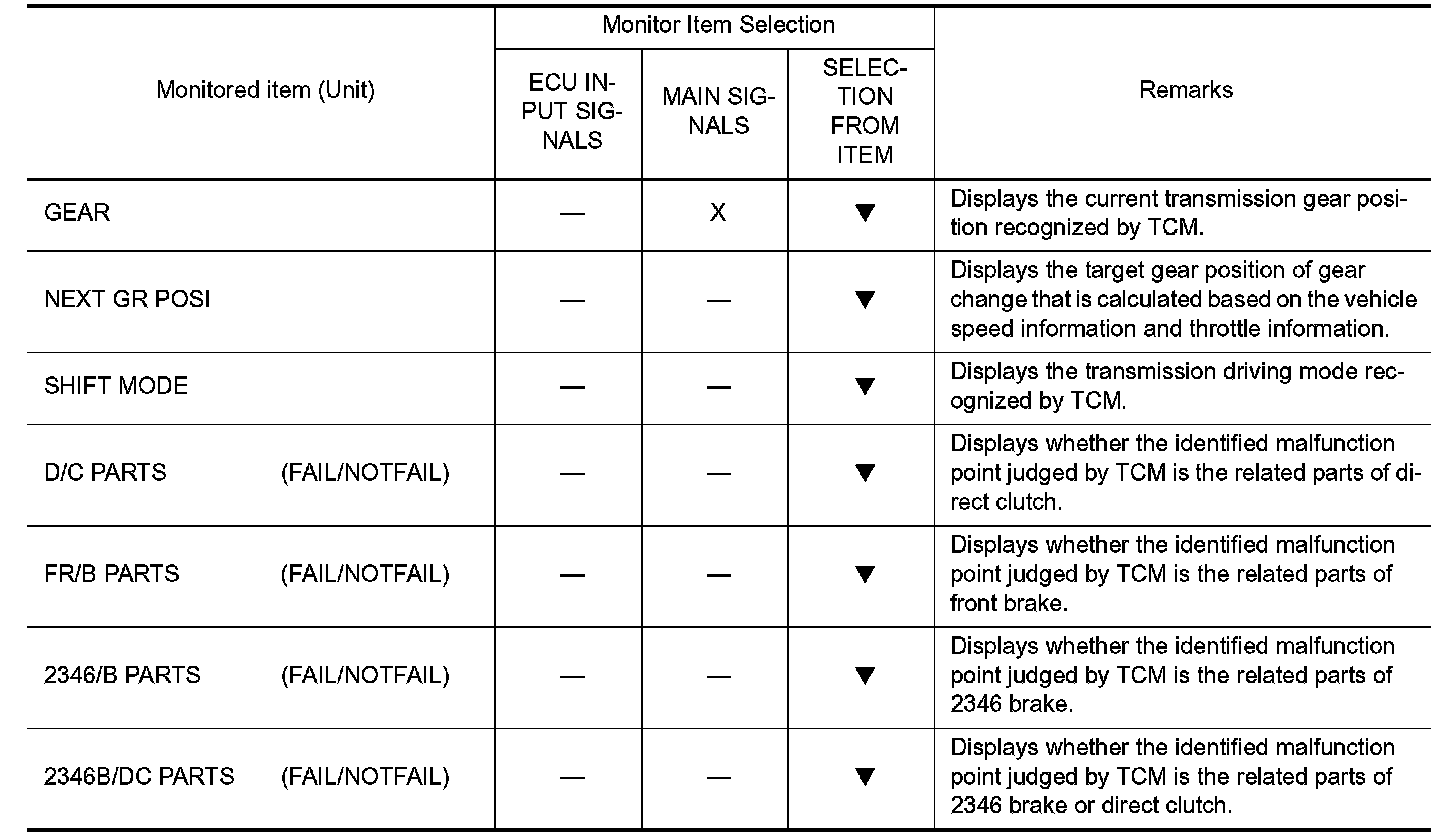

DATA MONITOR

X: Standard, -: Not applicable, : Option

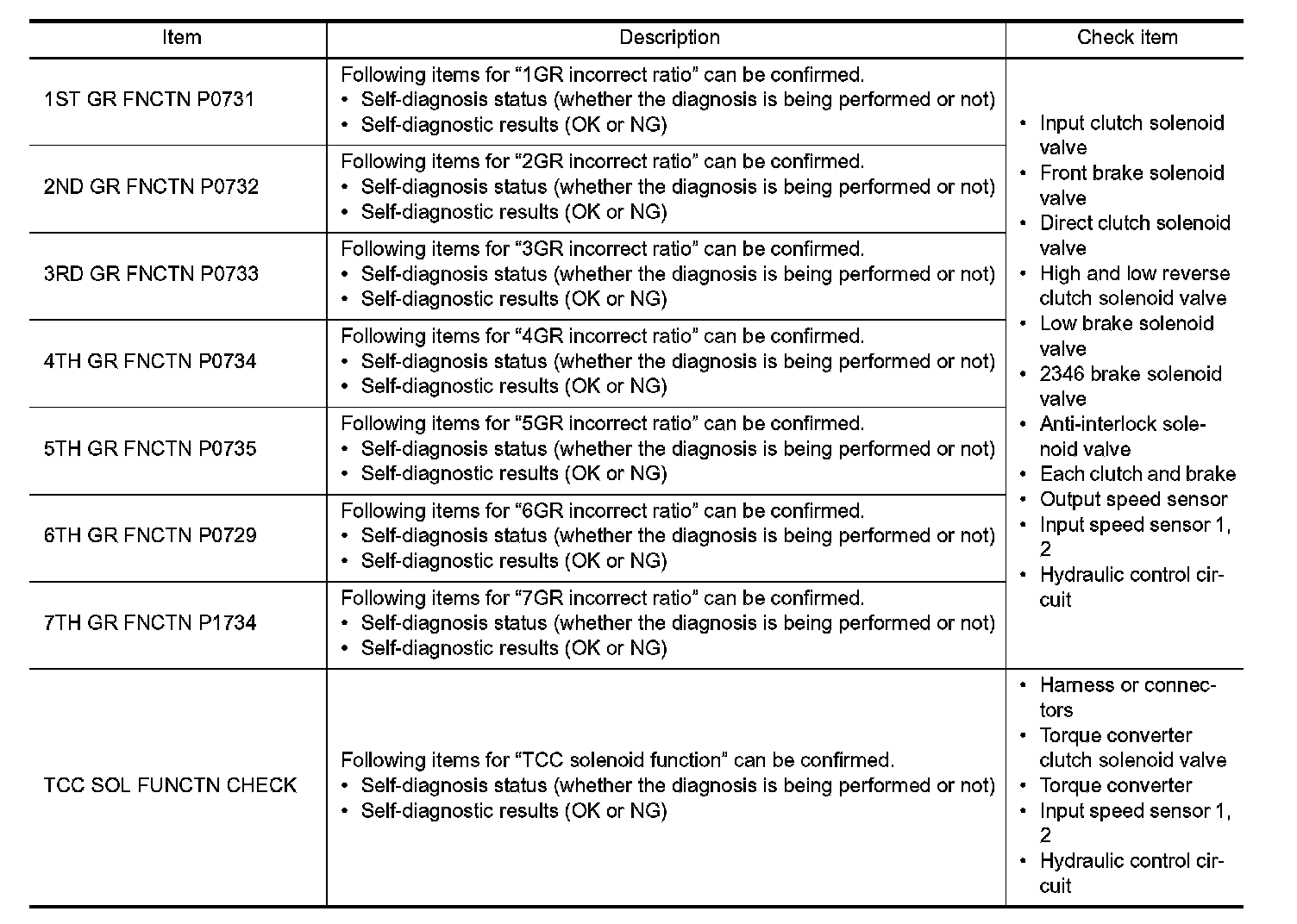

DTC & SRT CONFIRMATION
