Component Inspection (Stop Lamp Switch)

SHIFT LOCK SYSTEM

WITHOUT ICC : Component Inspection (Stop Lamp Switch)


1. CHECK STOP LAMP SWITCH

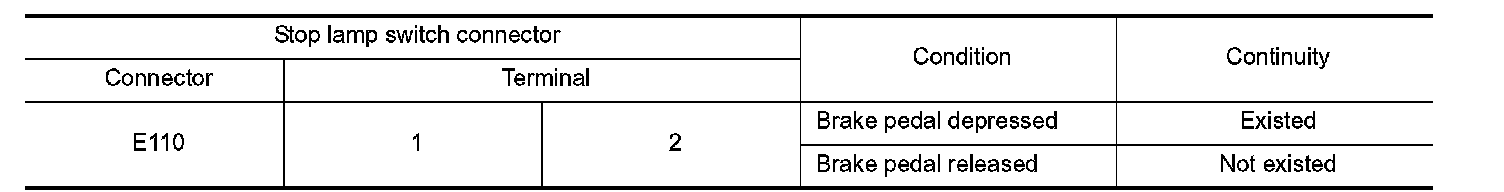

Check continuity between stop lamp switch connector terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace stop lamp switch. Exploded View.
