Exploded View




TRANSMISSION ASSEMBLY

Exploded View

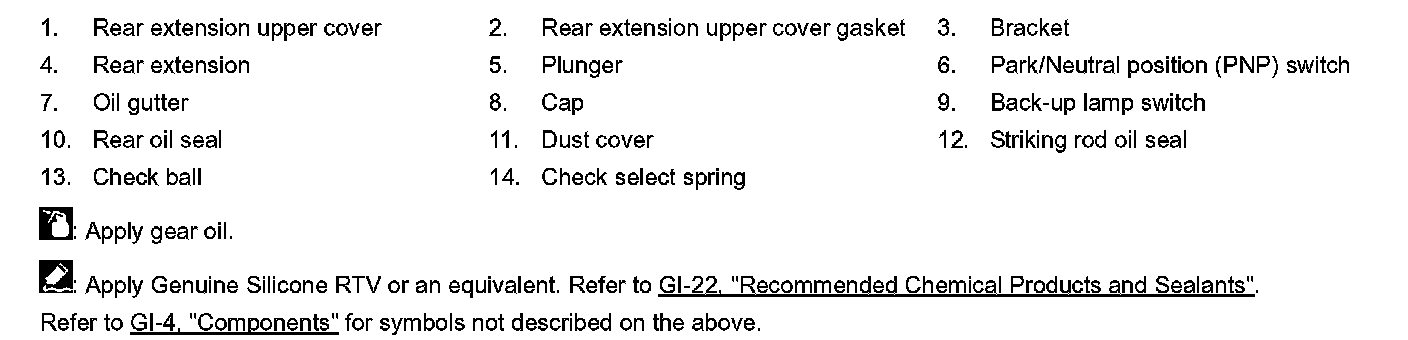

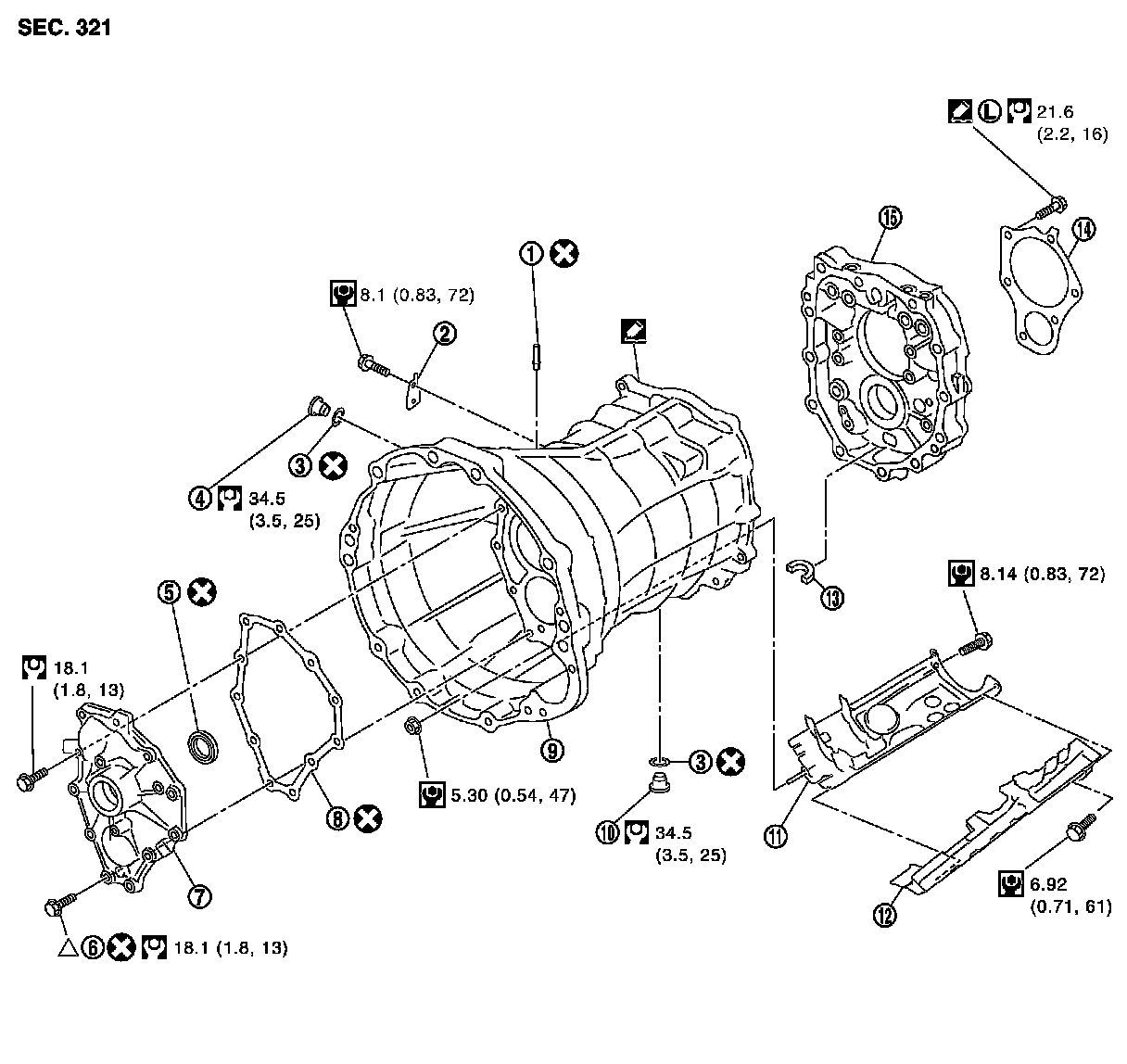

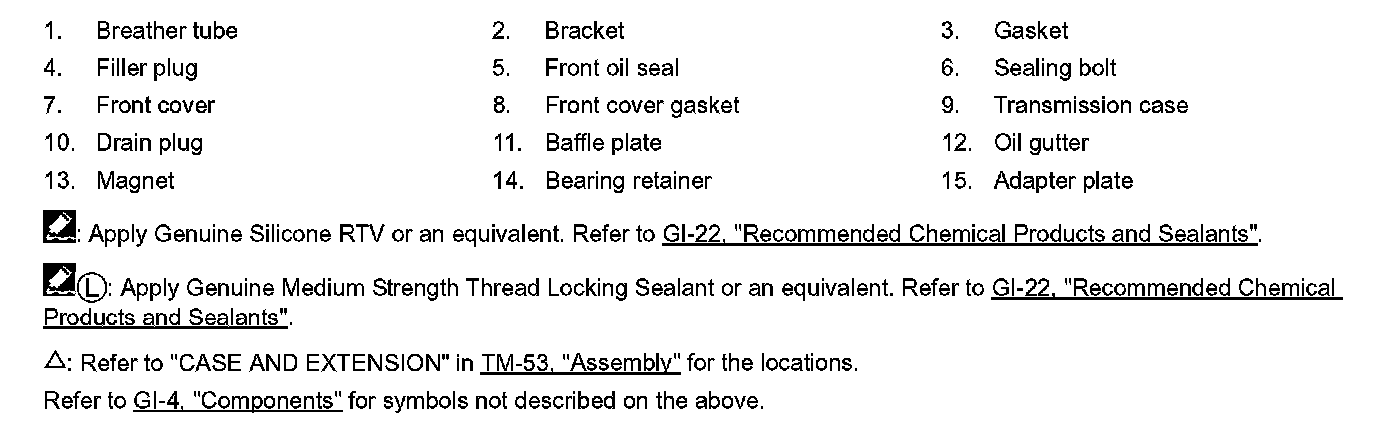

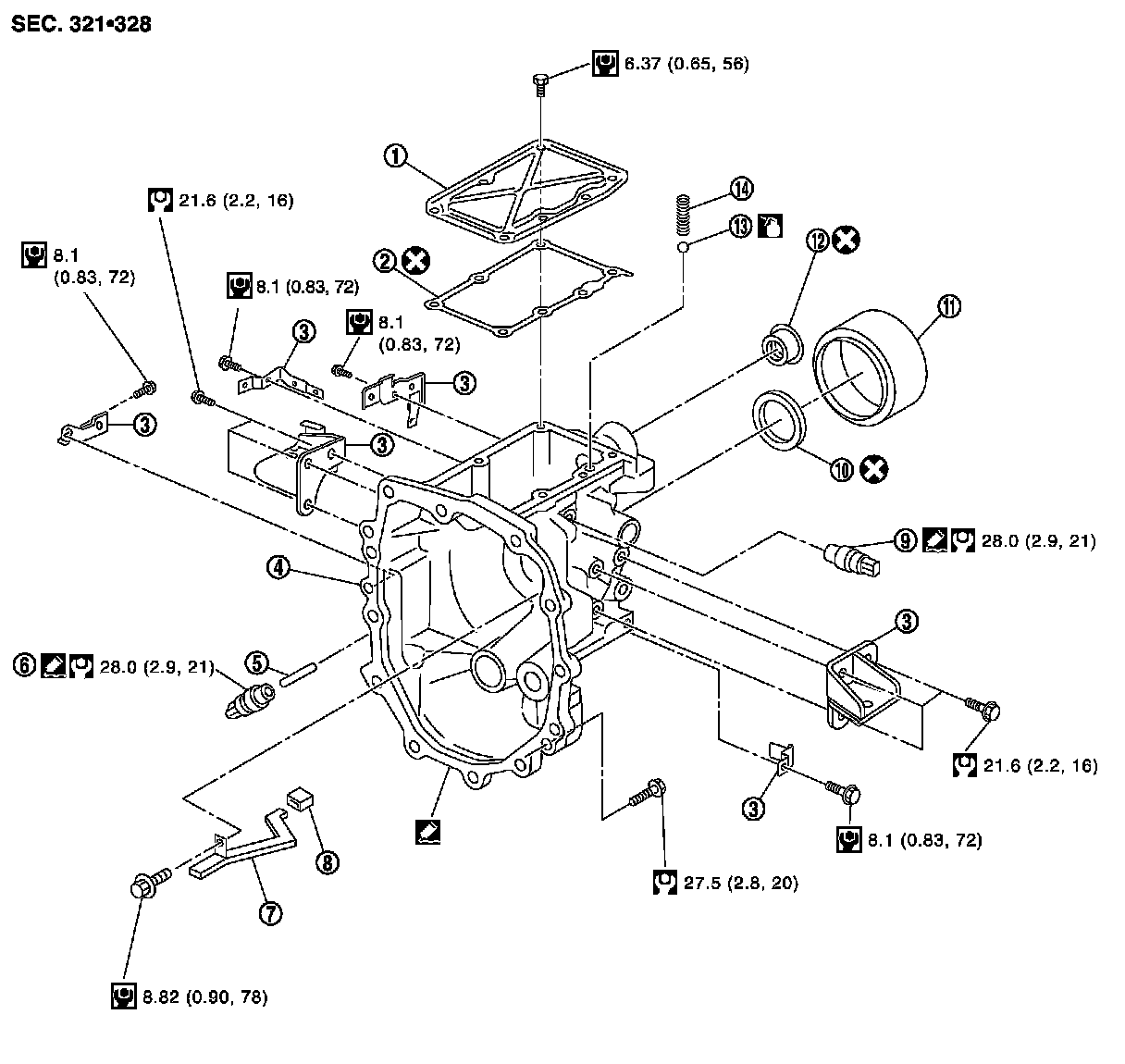

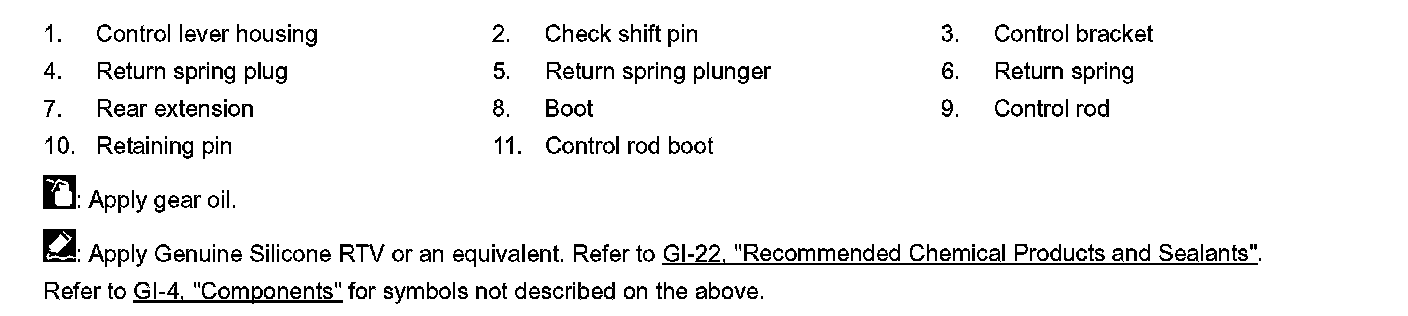

CASE AND EXTENSION

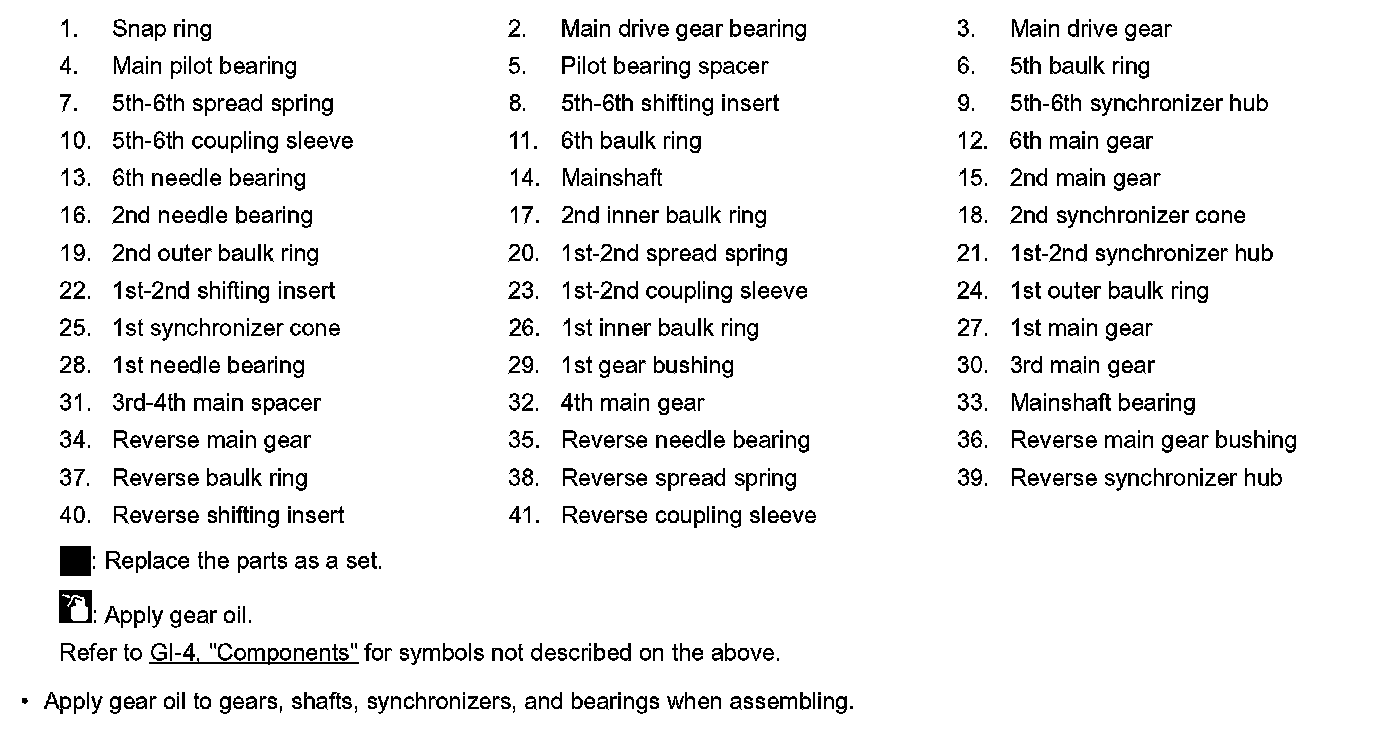

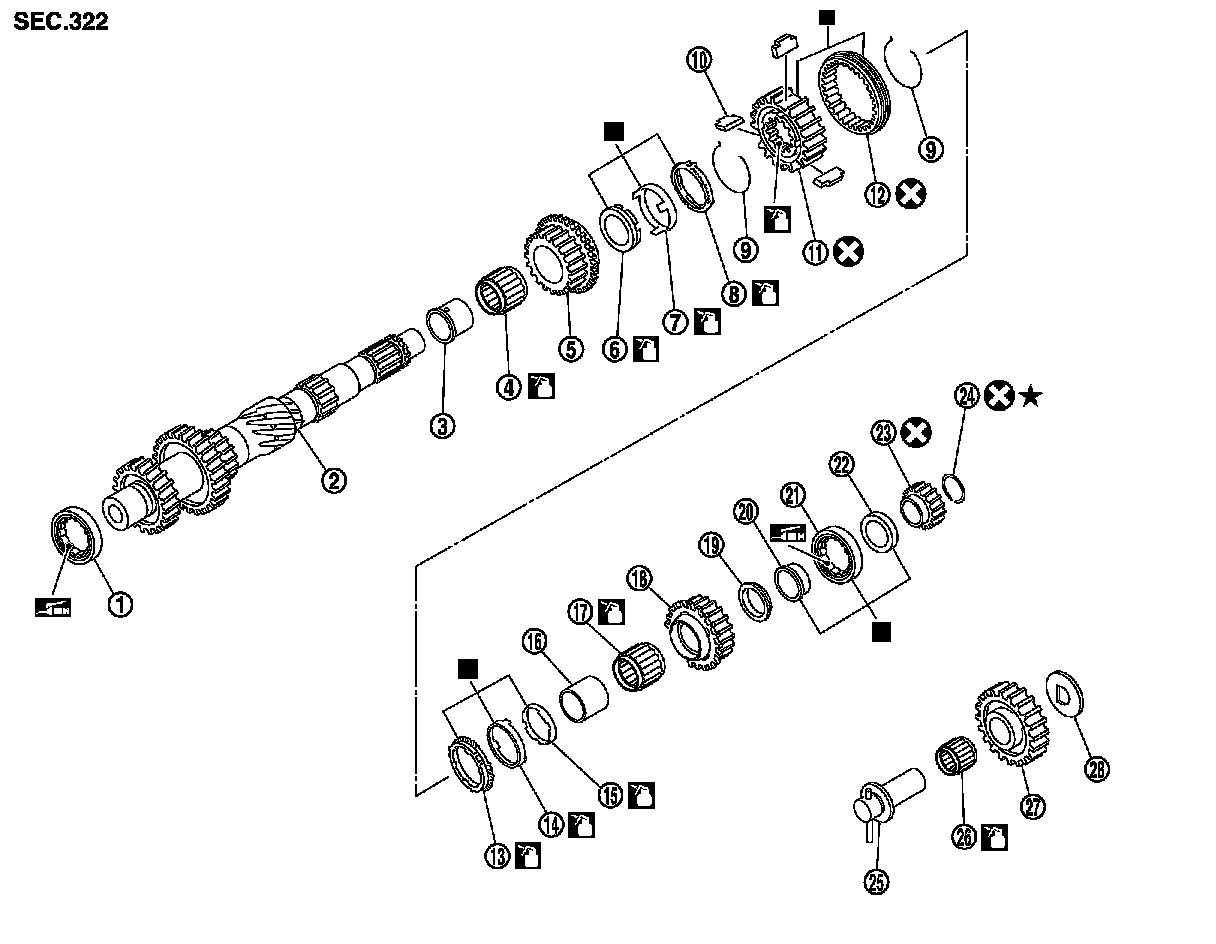

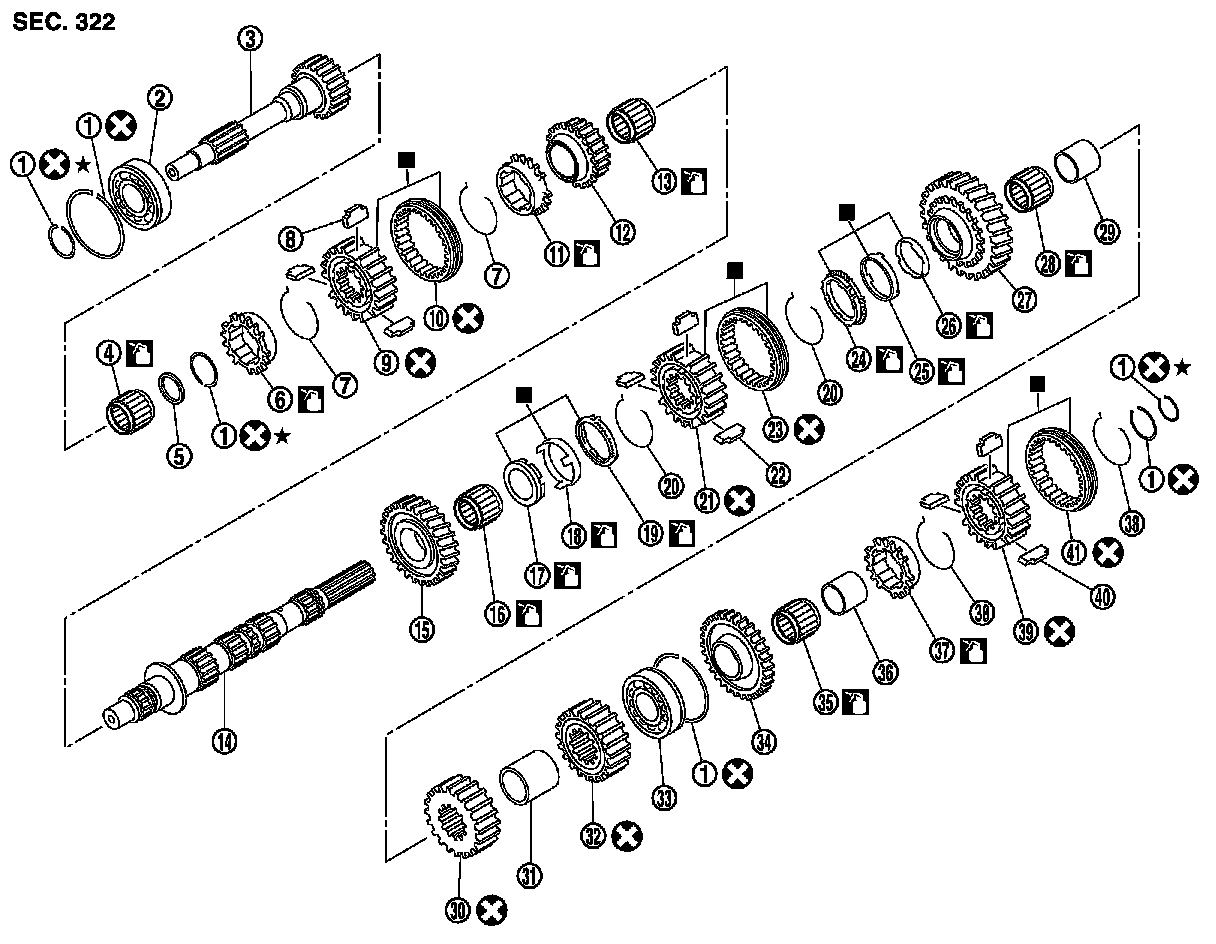

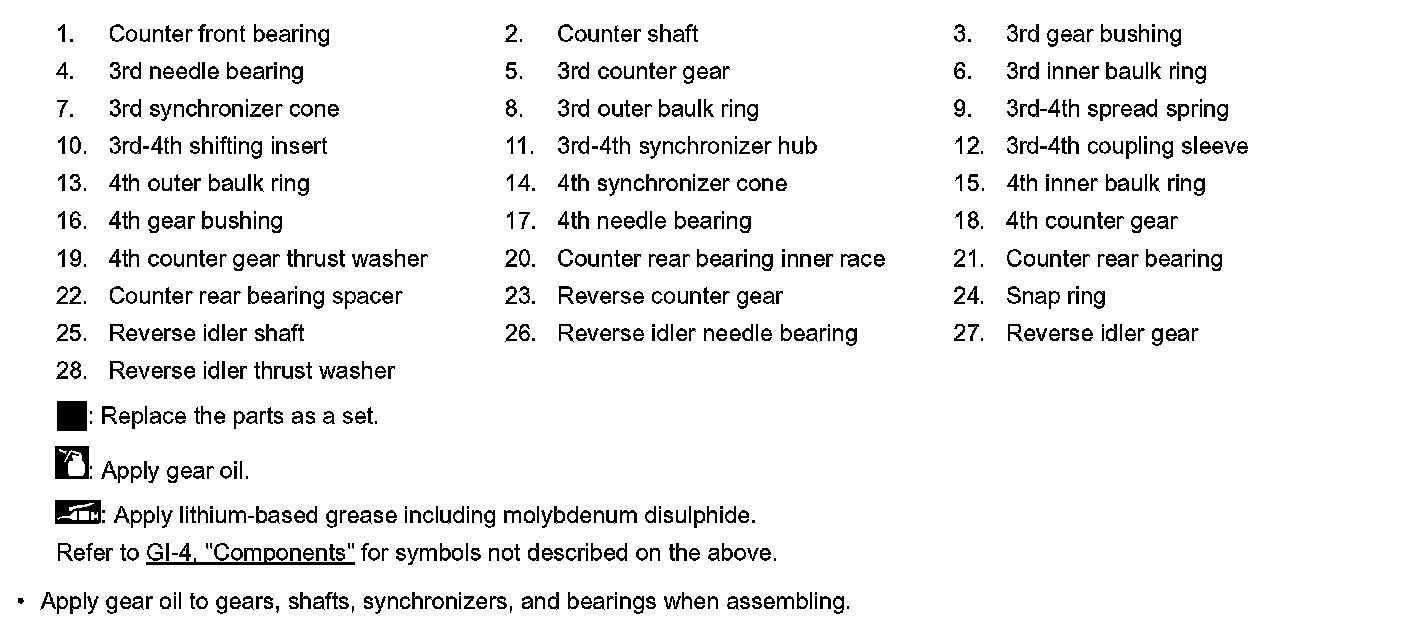

SHAFT AND GEAR

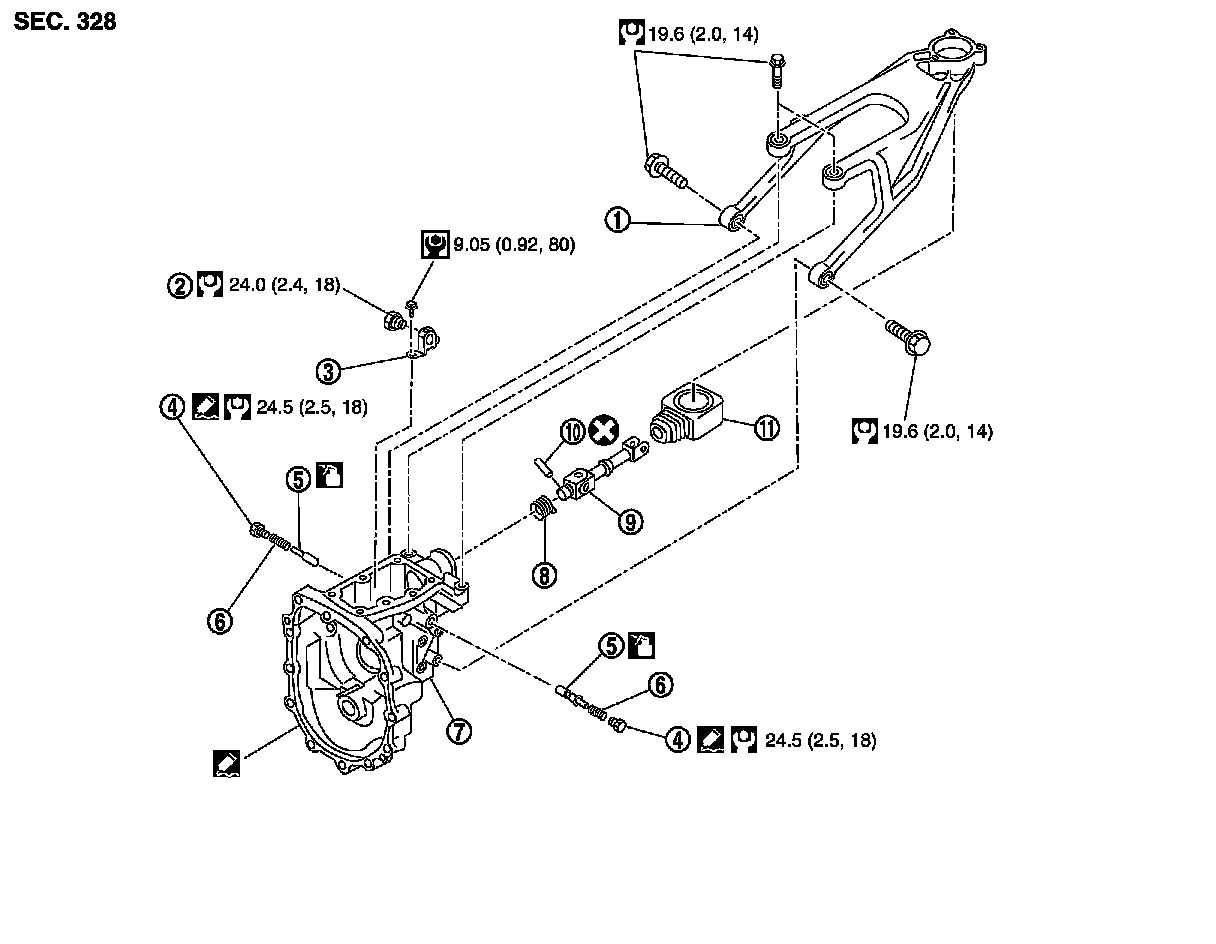

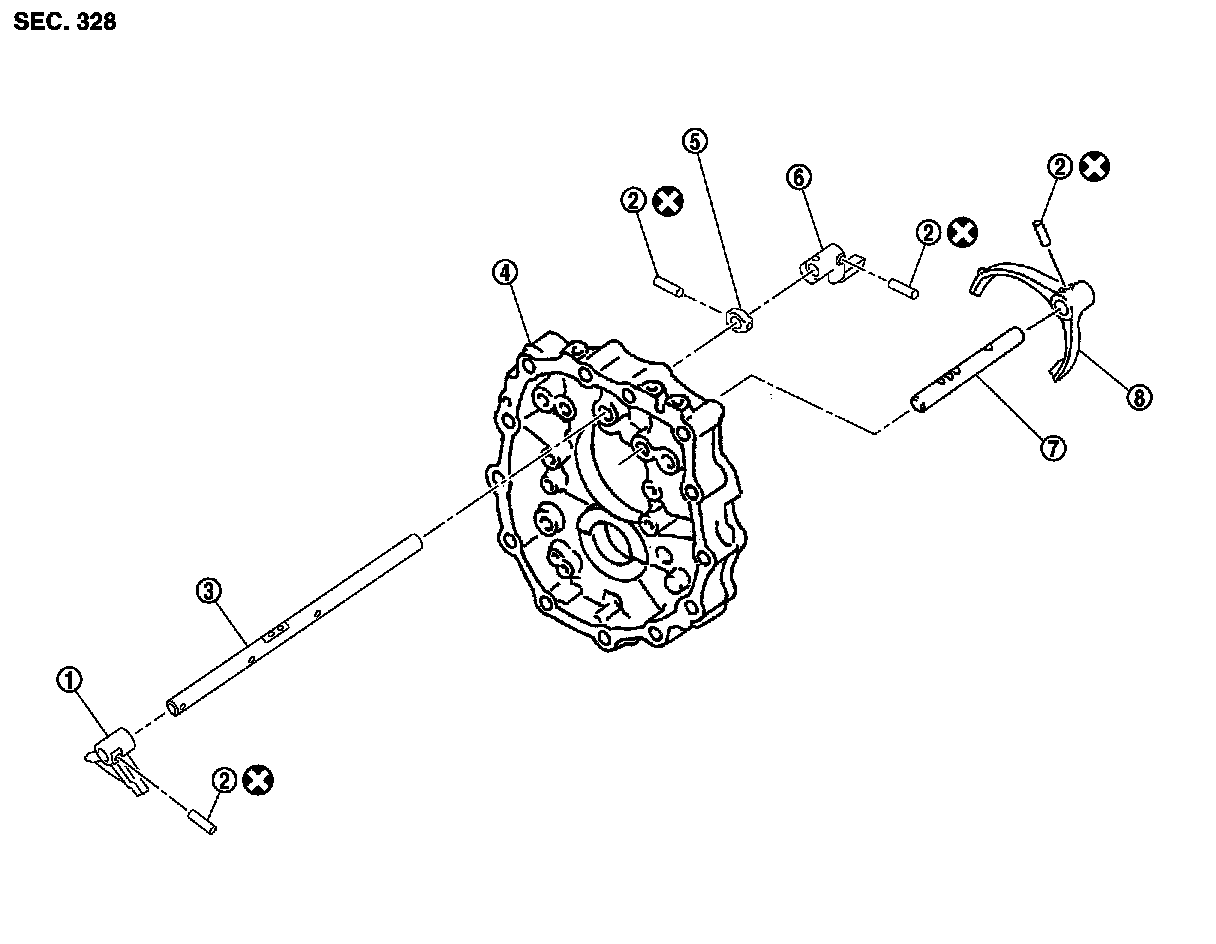

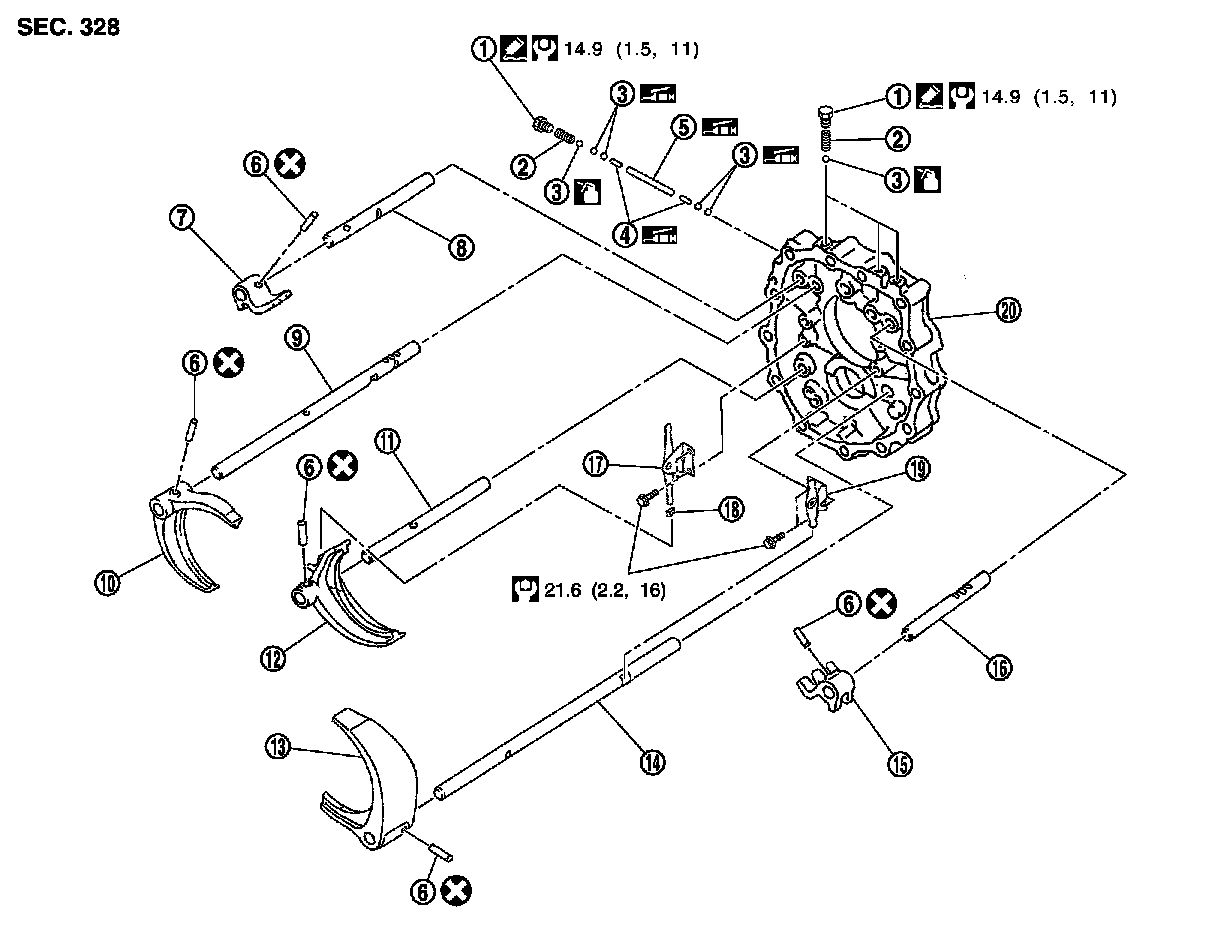

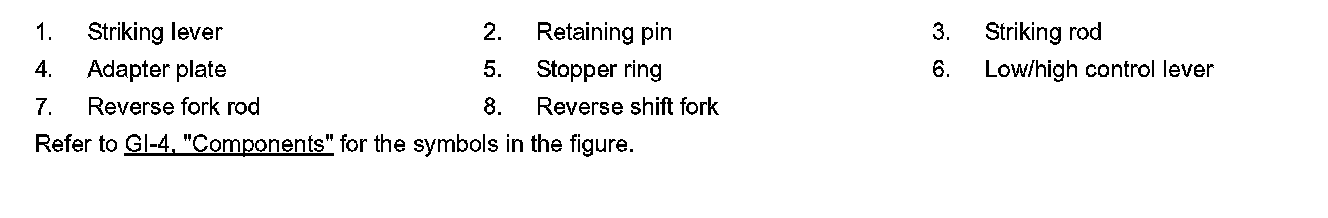

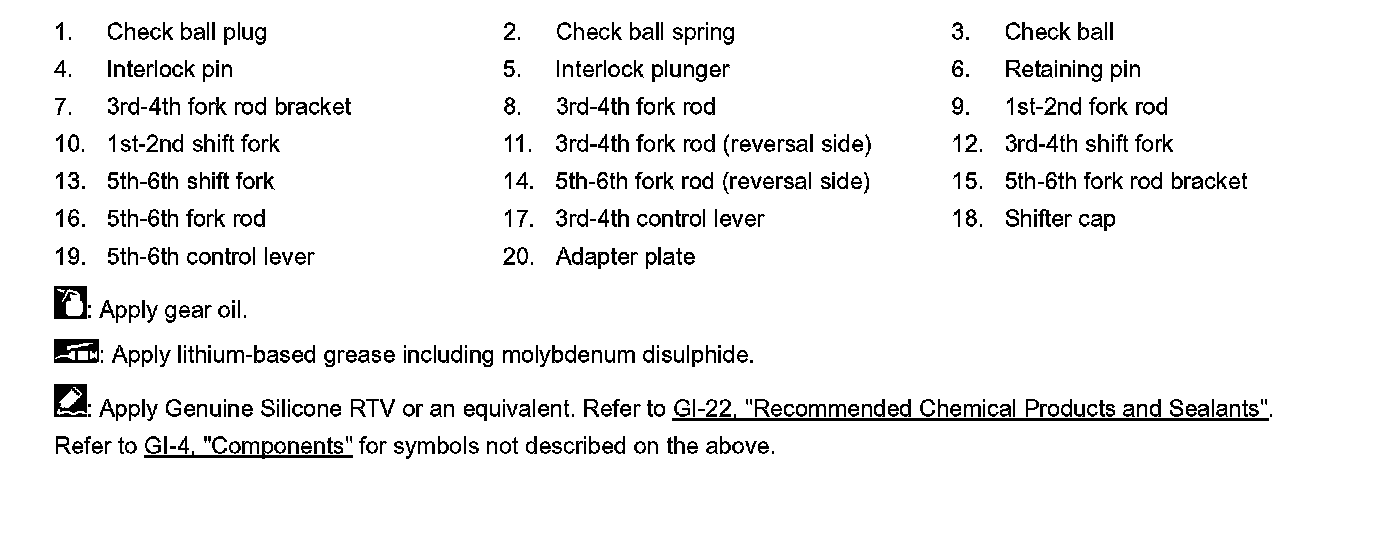

SHIFT FORK AND FORK ROD
