Disassembly

COUNTER SHAFT AND GEAR

Disassembly

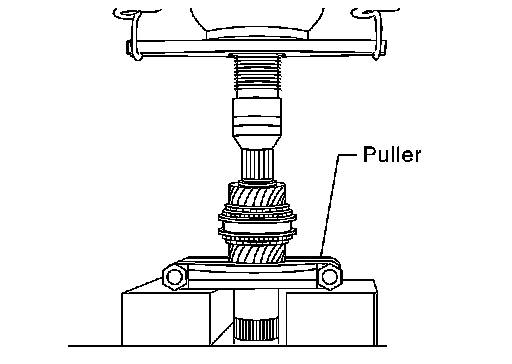

1.Remove 3rd counter gear with the following procedure.





a.Set a puller [Commercial service tool] to 3rd counter gear.

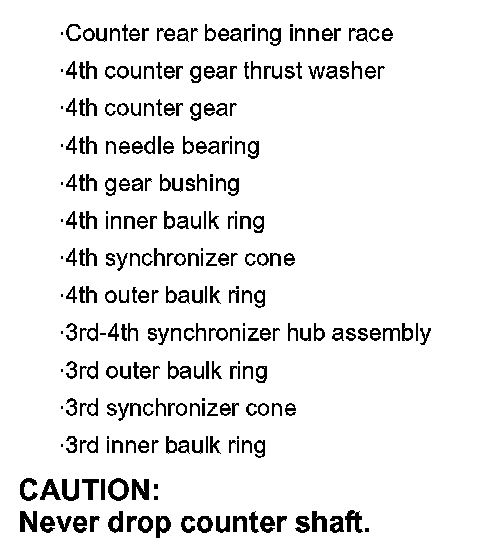

b.Remove the parts below together with 3rd counter gear from counter shaft with a pressing machine.






CAUTION:
Never drop counter shaft.
2.Remove 3rd-4th spread springs, 3rd-4th shifting inserts, and 3rd-4th coupling sleeve from 3rd-4th synchronizer hub.
3.Remove 3rd needle bearing from counter shaft.

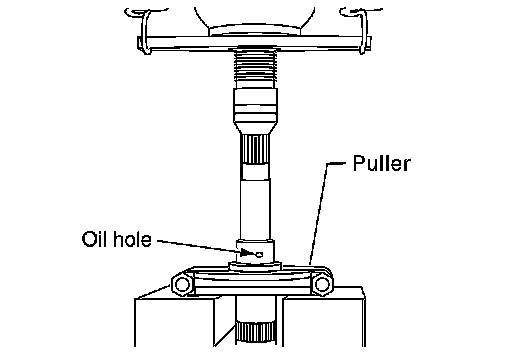

4.Remove 3rd gear bushing with the following procedure.





a.Set a puller [Commercial service tool] to 3rd gear bushing.
b.Remove 3rd gear bushing from counter shaft with a pressing machine.

CAUTION:
- Never use oil hole of 3rd gear bushing when press out.
- Never drop counter shaft.
