Refilling

GEAR OIL

Refilling

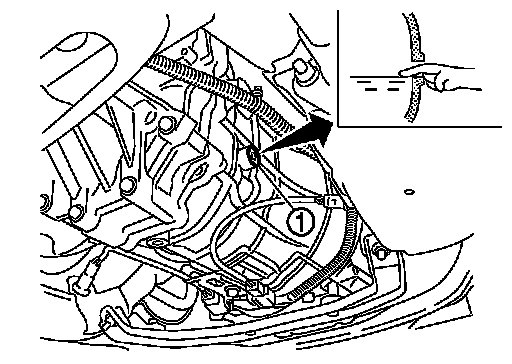

1.Remove filler plug (1) and gasket from transmission case.
2.Fill with new gear oil to transmission as shown in the figure.
Oil grade and viscosity: .


Oil capacity: General Specification.

CAUTION:
Never reuse drained gear oil.
3.After refilling gear oil, check the oil level. Inspection.
4.Set a gasket on filler plug and then install it to transmission case.

CAUTION:
Never reuse gasket.
5.Tighten filler plug to the specified torque. Exploded View.
