Final Drive Side

REAR DRIVE SHAFT

FINAL DRIVE SIDE : Disassembly and Assembly


DISASSEMBLY

1.Fix shaft with a vise.

CAUTION:
Protect shaft when fixing with a vise using aluminum or copper plates.
2.Remove boot bands, and then remove boot from housing.
3.Put matching marks on housing and shaft.

CAUTION:
Use paint or similar substance for matching marks. Never scratch the surface.

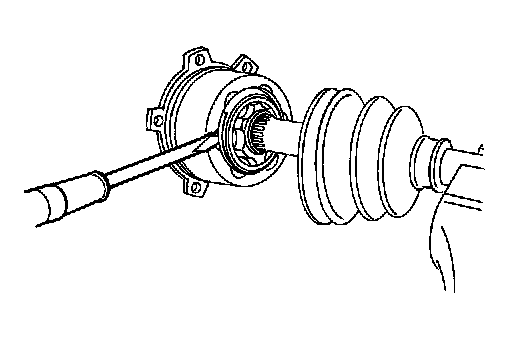

4.Remove stopper ring with suitable tool, and pull out housing.
5.Put matching marks on ball cage/steel ball/inner race assembly and shaft.

CAUTION:
Use paint or similar substance for matching marks. Never scratch the surface.

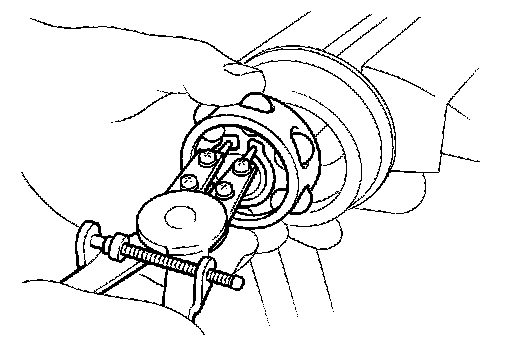

6.Remove snap ring, and then remove ball cage/steel ball/inner race assembly from shaft.
7.Remove boot from shaft.
8.If plug needs to be removed, take it out with a plastic hammer.

ASSEMBLY

1.Remove old grease on housing with paper waste.

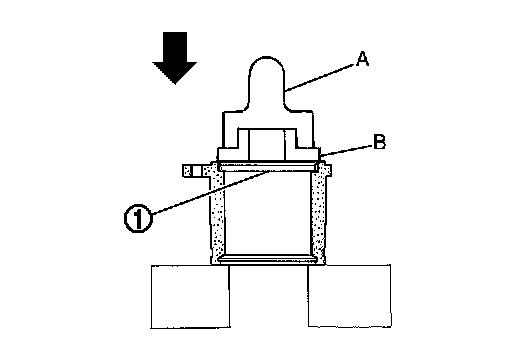

2.If plug (1) has been removed, use a drift to press in a new one.





3.Install boot and boot bands to shaft.

CAUTION:
- Wrap serration shaft with tape to protect the boot from damage.
- Never reuse boot and boot bands.
4.Remove the tape wrapped around the serrated on shaft.

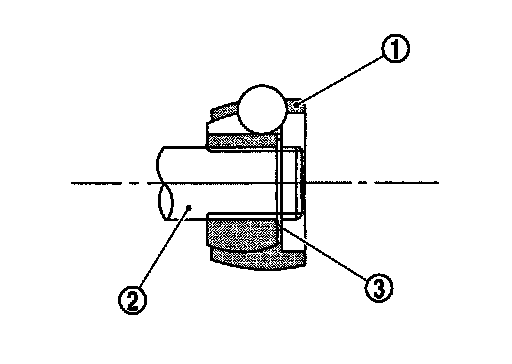

5.Install ball cage/steel ball/inner race assembly (1), align it with the matching marks on shaft (2) put during the removal.
6.Secure ball cage/steel ball/inner race assembly onto shaft with snap ring (3).

CAUTION:
Never reuse snap ring.
7.Apply the appropriate amount of grease onto housing and sliding surface.
Grease amount: Rear Axle.
8.Install stopper ring to housing.

CAUTION:
Never reuse stopper ring.
9.After installed, pull shaft to check engagement between housing and stopper ring.

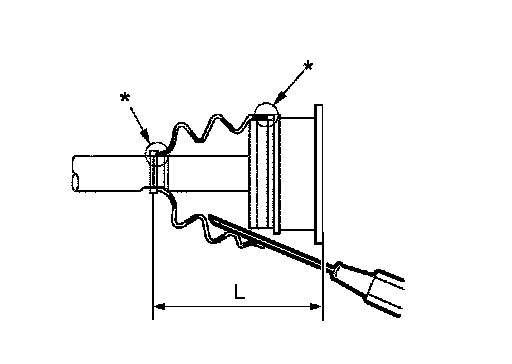

10.Install boot securely into grooves (indicated by "*" marks) shown in the figure.

CAUTION:
If grease adheres to the boot mounting surfaces (indicated by "*" marks) on shaft or housing, boot may be removed.
Remove all grease from the surfaces.
11.To prevent the deformation of the boot, adjust the boot installation length (L) to the value shown below by inserting the suitable tool into the inside of boot from the large diameter side of boot and discharging inside air.
L : Rear Axle.

CAUTION:
- If the boot installation length is outside the standard, it may cause breakage of the boot.
- Be careful not to touch the inside of the boot with the tip of tool.

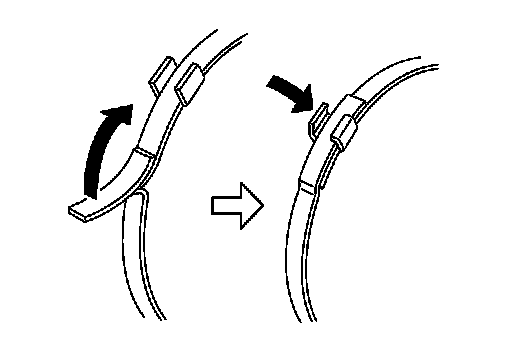

12.Install boot bands securely as shown in the figure.

CAUTION:
Never reuse boot bands.
13.Secure housing and shaft, and then check that they are in the correct position when rotating boot. Install them with boot band when the mounting positions become incorrect.

CAUTION:
Never reuse boot bands.
