Part 4

TRANSMISSION ASSEMBLY

Assembly

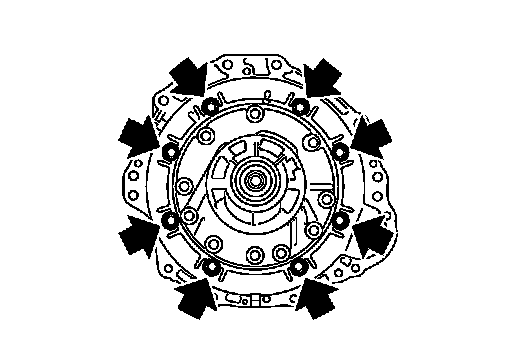

66.Install converter housing to transmission case, and tighten converter housing bolts (black arrow) to the specified torque.





67.Connect TCM connector (A) to joint connector.





68.Install joint connector (1) to the control valve & TCM.

CAUTION:

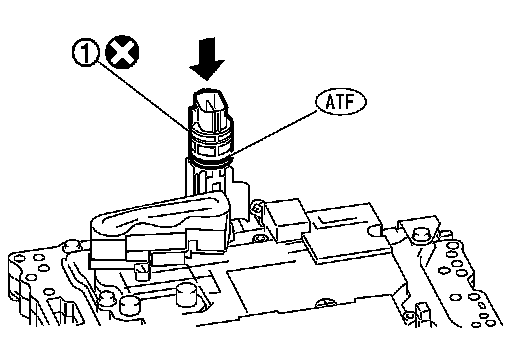

Apply ATF to O-ring of joint connector.





69.Install the control valve & TCM (1) to transmission case.

CAUTION:

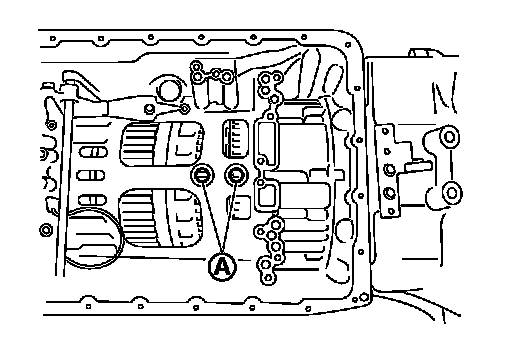

- Make sure that input speed sensor securely installs input speed sensor holes (A).


- Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve &
TCM.
- Adjust A/T assembly harness connector of the control valve & TCM to terminal hole of transmission case.





- Assemble it so that manual valve cutout is engaged with manual plate projection.

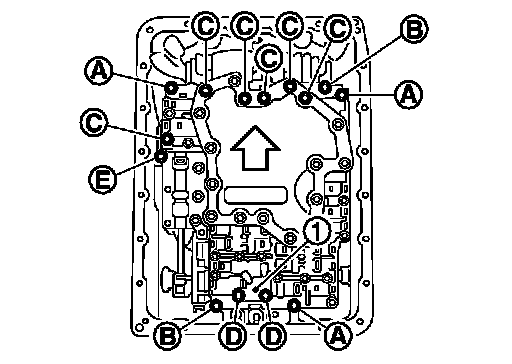

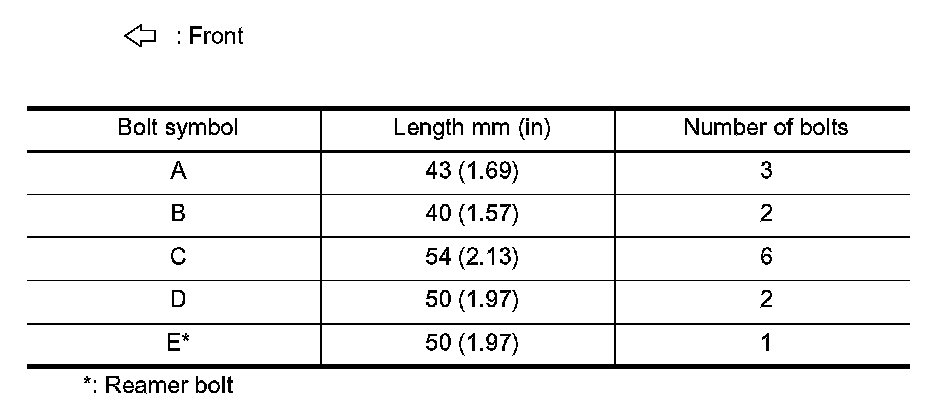

70.Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.

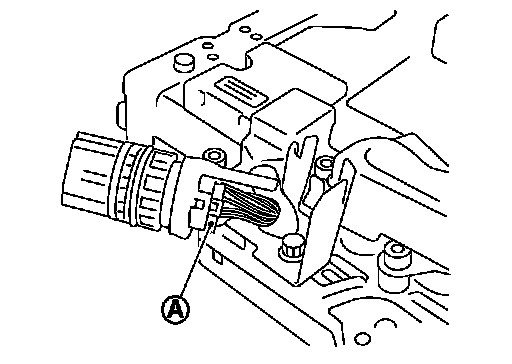

71.Connect output speed sensor connector (A).

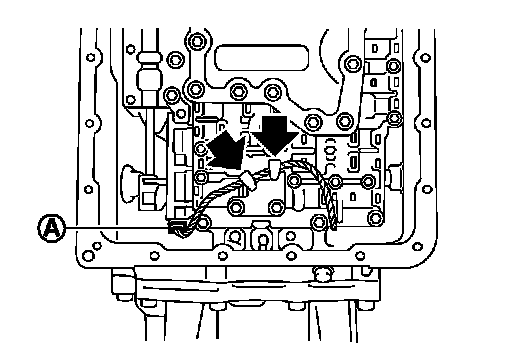

72.Engage output speed sensor harness with terminal clips (black arrow).

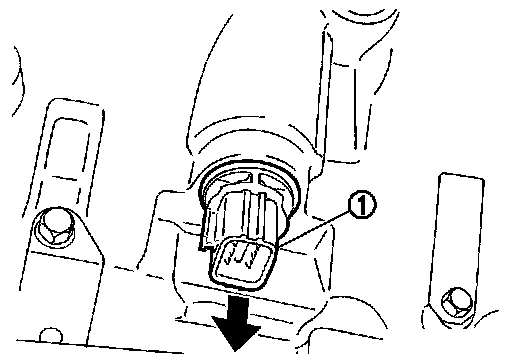

73.Pull down joint connector (1).

CAUTION:
Be careful not to damage connector.





74.Install snap ring (1) to joint connector (2).

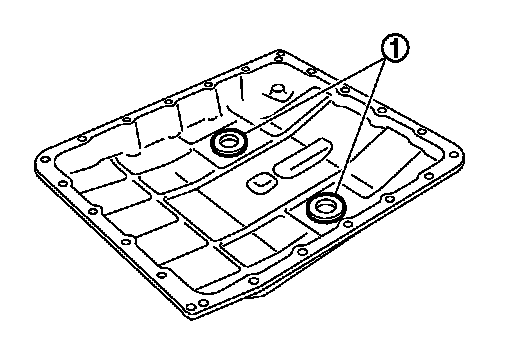

75.Install magnets (1) in oil pan.
76.Install oil pan gasket to transmission case.

CAUTION:
- Never reuse oil pan gasket.
- Install it in the direction to align hole positions.
- Completely remove all moisture, oil and old gasket, etc.
from oil pan gasket mounting surface.

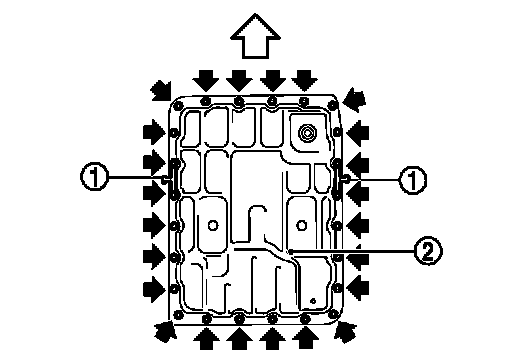

77.Install oil pan (2) and clips (1) to transmission case.

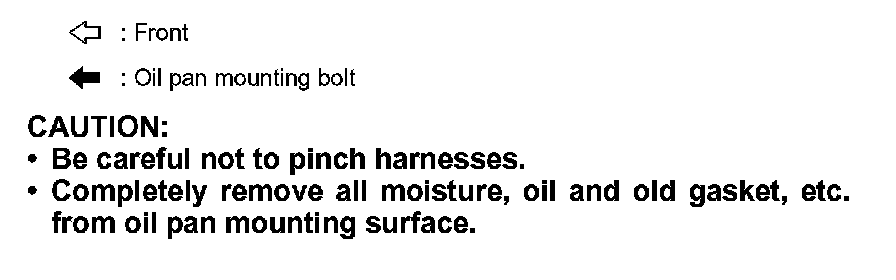

CAUTION:
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

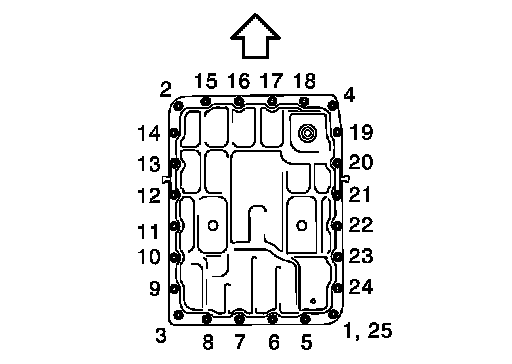

78.Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque.





CAUTION:
Never reuse oil pan mounting bolts.
79.Install drain plug to oil pan. Tighten drain plug to the specified torque.

CAUTION:
Never reuse drain plug gasket.

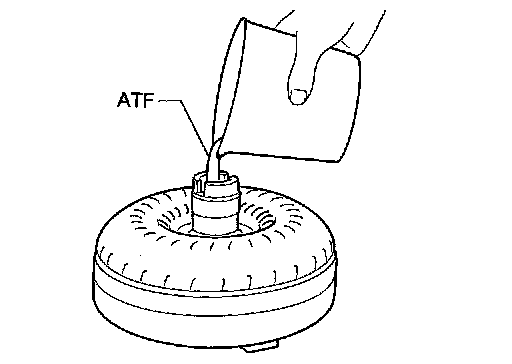

80.Pour ATF into torque converter.
-Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
-When reusing old torque converter, add the same amount of ATF as was drained.

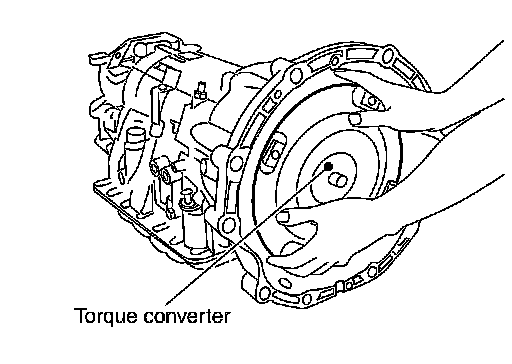

81.Install torque converter while aligning notches of torque converter with notches of oil pump.

CAUTION:
Install torque converter while rotating it.

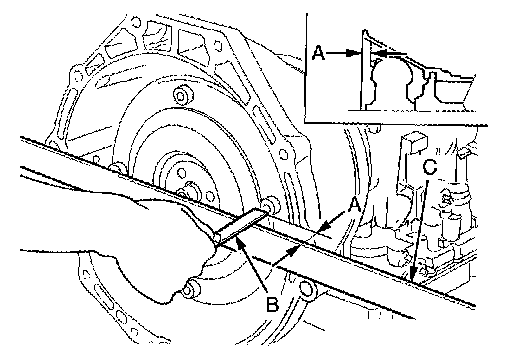

82.Measure dimension "A" to make sure that torque converter is in proper position.





Dimension "A": Torque Converter.
