Part 2

TRANSMISSION ASSEMBLY

Assembly

47.Install 1st one-way clutch (1) to front brake hub (with under drive carrier) (2).
48.Check operation of 1st one-way clutch.
a.Hold 1st one-way clutch.
b.Check front brake hub for correct locking and unlocking directions.






CAUTION:
If not shown in figure, check installation direction of 1st one-way clutch.





49.Install under drive carrier (with 1st one-way clutch) (1) to transmission case.

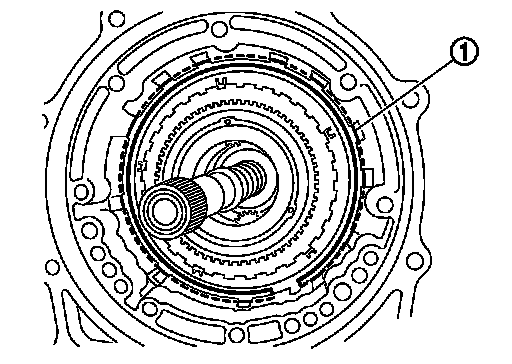

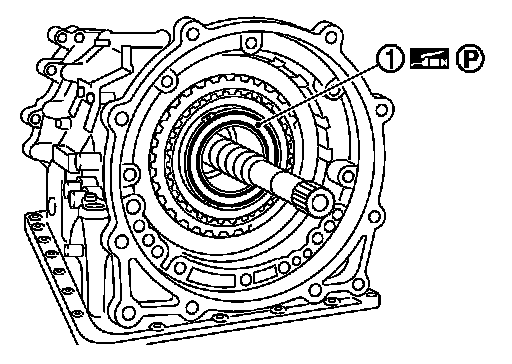

50.Install snap ring (1) to transmission case.

CAUTION:
Be careful not to damage snap ring.

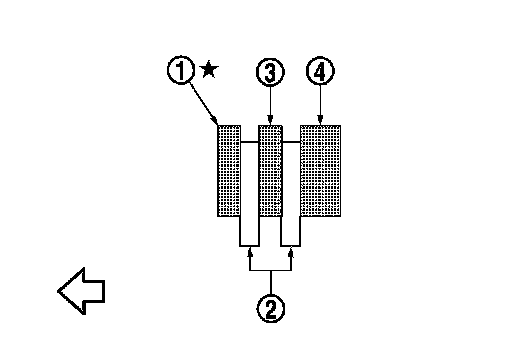

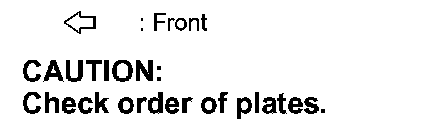

51.Install front brake retaining plate (thin) (1), front brake drive plates (2), front brake driven plate (3), and front brake retaining plate (thick) (4) to transmission case.






CAUTION:
Check order of plates.

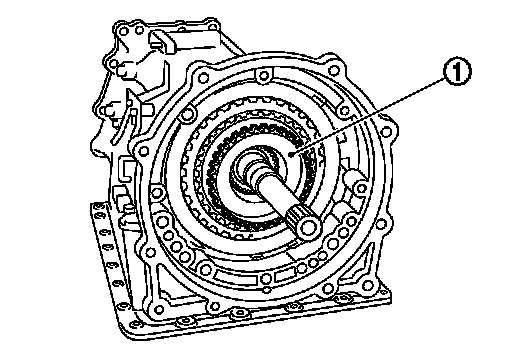

52.Install needle bearing (1) to under drive carrier assembly.

CAUTION:
Check the direction of needle bearing. Location of Needle Bearings and Bearing Races.

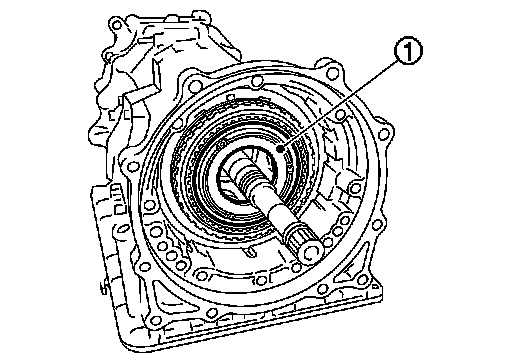

53.Install under drive sun gear (1) to under drive carrier assembly.

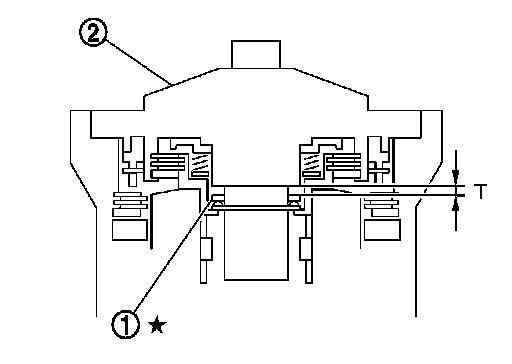

54.Adjustment of total end play "T".

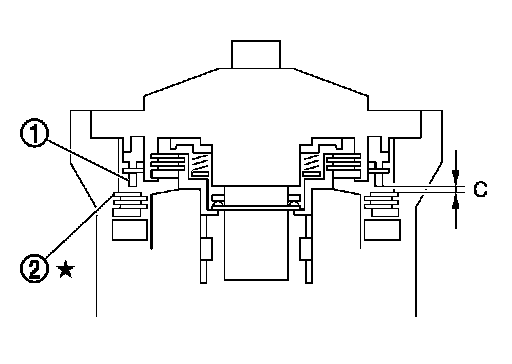

- Measure clearance between bearing race (1) and oil pump cover (2).
- Select proper thickness of bearing race so that end play is within specifications.





a.Measure dimensions "K" and "L", and calculate dimension "J".

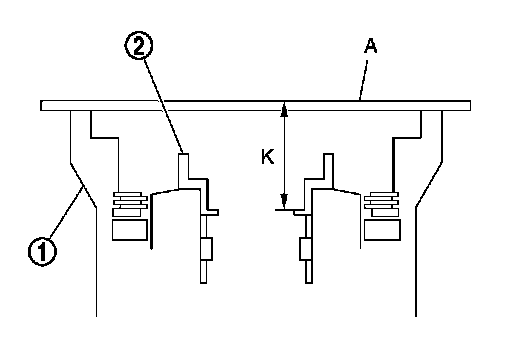

i.Measure dimension "K" between the converter housing fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.

CAUTION:
Never change the straight edge installation position before the completion of "L" measurement.

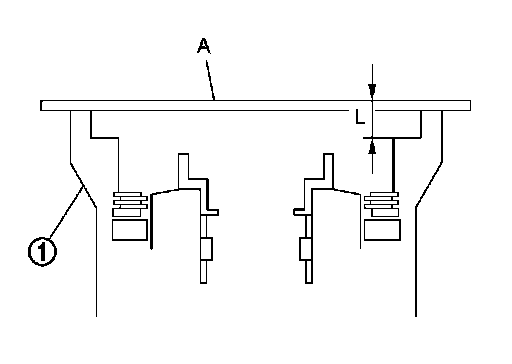

ii.Measure dimension "L" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.
iii.Measure dimension "K" and "L" in at least three places, and take the average.

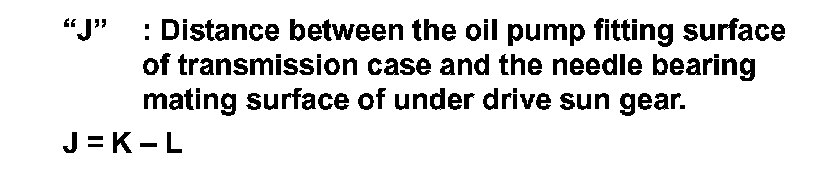

iv.Calculate dimension "J".

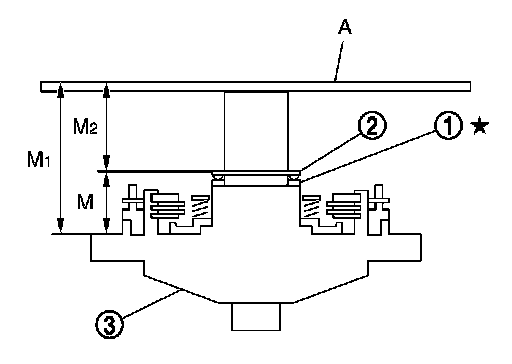

b.Measure dimensions "M1" and "M2", and calculate dimension
"M".

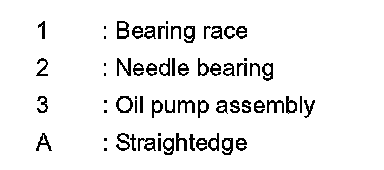

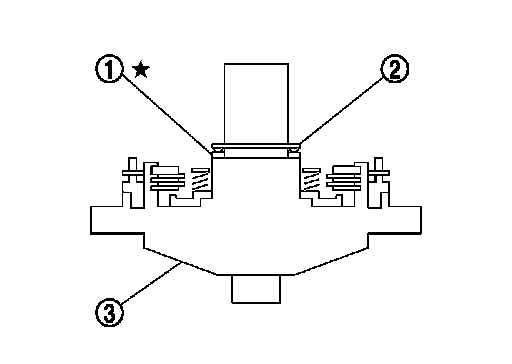

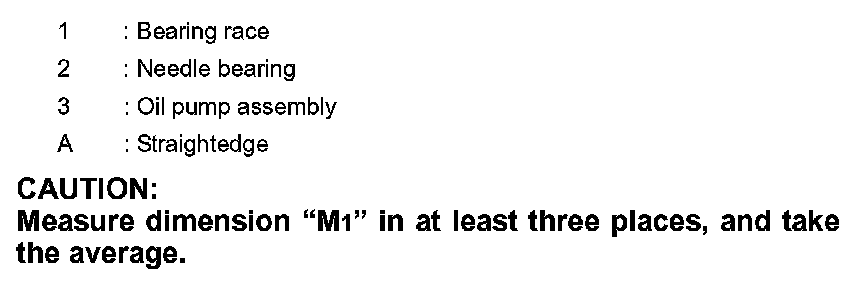

i.Place bearing race (1) and needle bearing (2) on oil pump assembly (3).

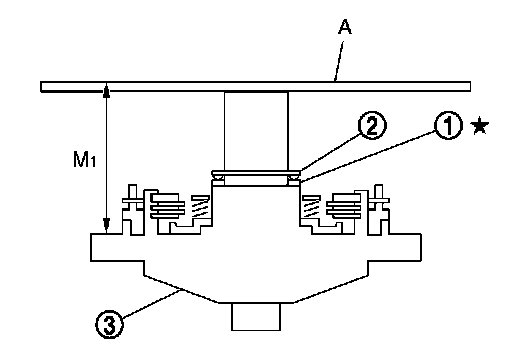

ii.Measure dimension "M1" between the transmission case fitting surface of oil pump and the end of oil pump.






CAUTION:
Measure dimension "M1" in at least three places, and take the average.

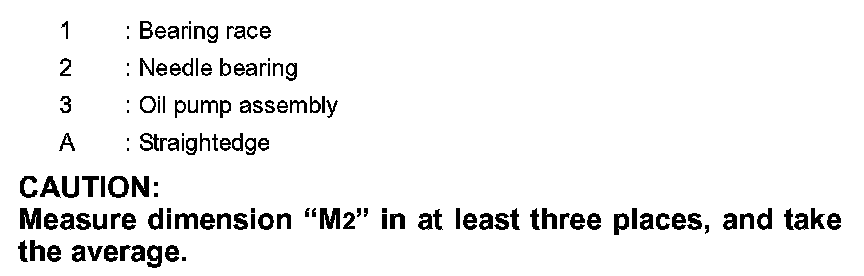

iii.Measure dimension "M2" between the needle bearing on oil pump and the end of oil pump.






CAUTION:
Measure dimension "M2" in at least three places, and take the average.
iv.Calculate dimension "M".

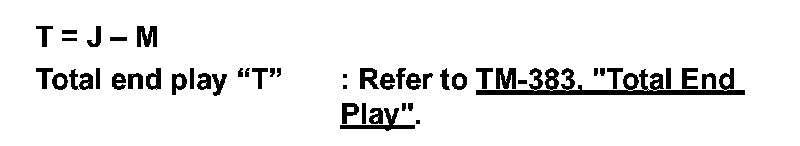

c.Adjust total end play "T".









- Select proper thickness of bearing race so that total end play is within specifications.

Bearing races: Total End Play.
