Assembly

DIRECT CLUTCH

Assembly

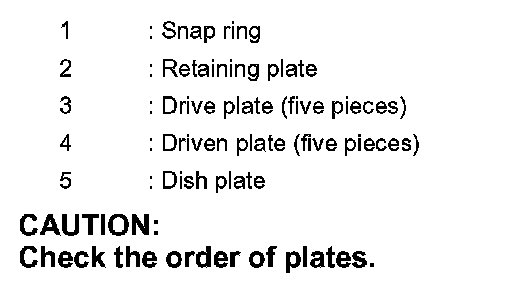

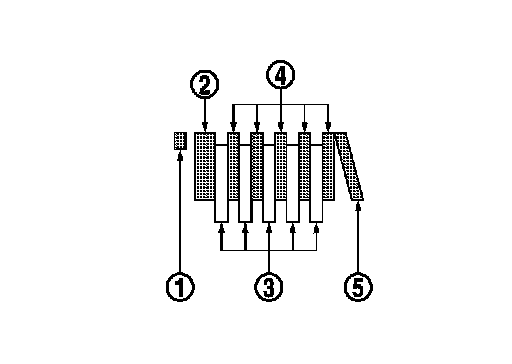

1.Install direct clutch drive plates, direct clutch driven plates, and direct clutch retaining plates in direct clutch drum.






CAUTION:
Check the order of plates.

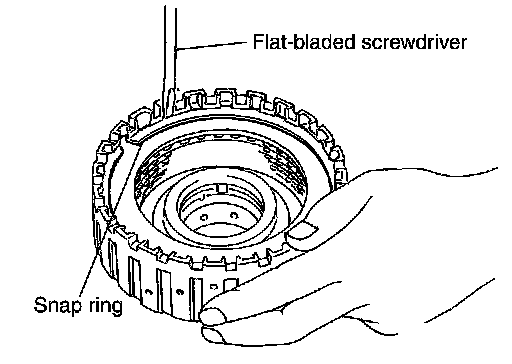

2.Install snap rings in direct clutch drum using a flat-bladed screwdriver.

CAUTION:
- Be careful not to scratch direct clutch drum and direct clutch retaining plate.
- Be careful not to damage snap ring.
