Removal and Installation

REAR OIL SEAL

Removal and Installation


REMOVAL

1.Separate propeller shaft assembly. Exploded View.

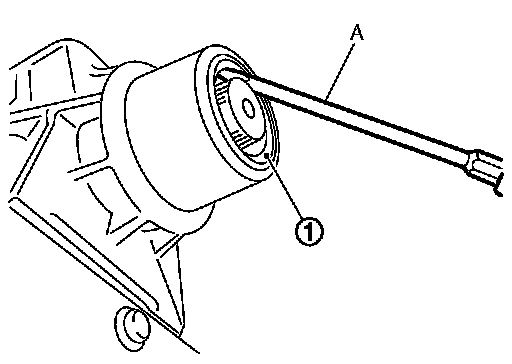

2.Remove rear oil seal (1) using a flat-bladed screwdriver (A).

CAUTION:
Be careful not to scratch rear extension assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

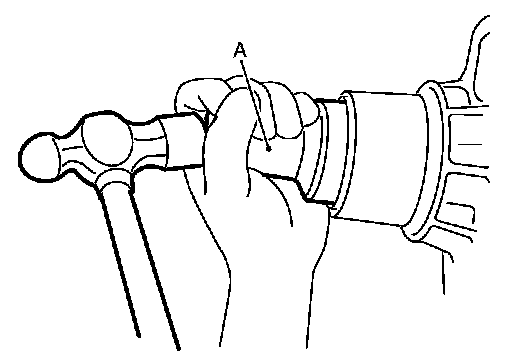

- As shown in the figure, use the drift [SST: ST-33400001 (J-26082)]
(A) to drive rear oil seal into rear extension assembly until it is flush.

CAUTION:
- Never reuse rear oil seal.
- Apply ATF to rear oil seal.
