Consult-III Function and System Application




CONSULT-III/GST CHECKING SYSTEM

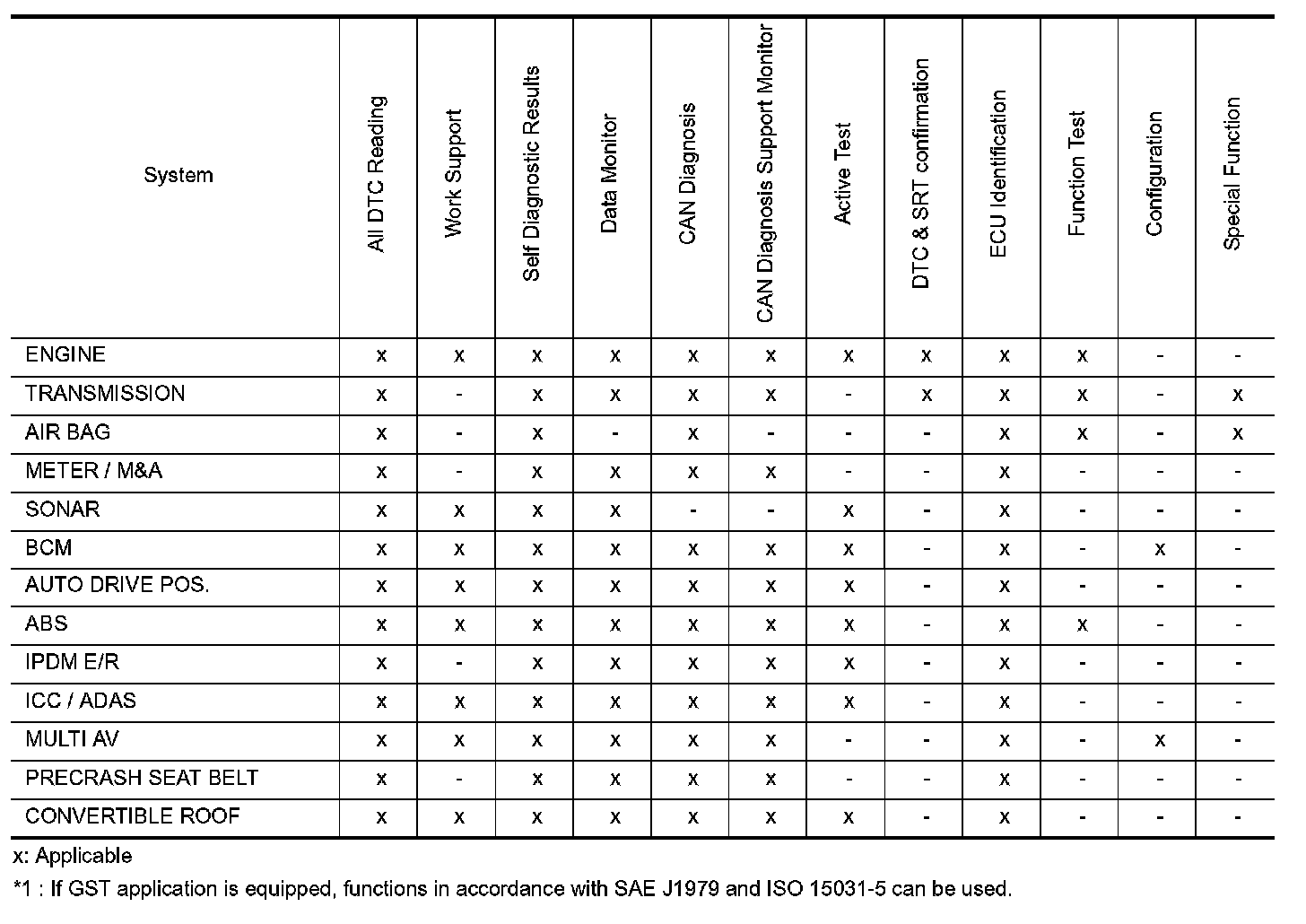

CONSULT-III Function and System Application*1

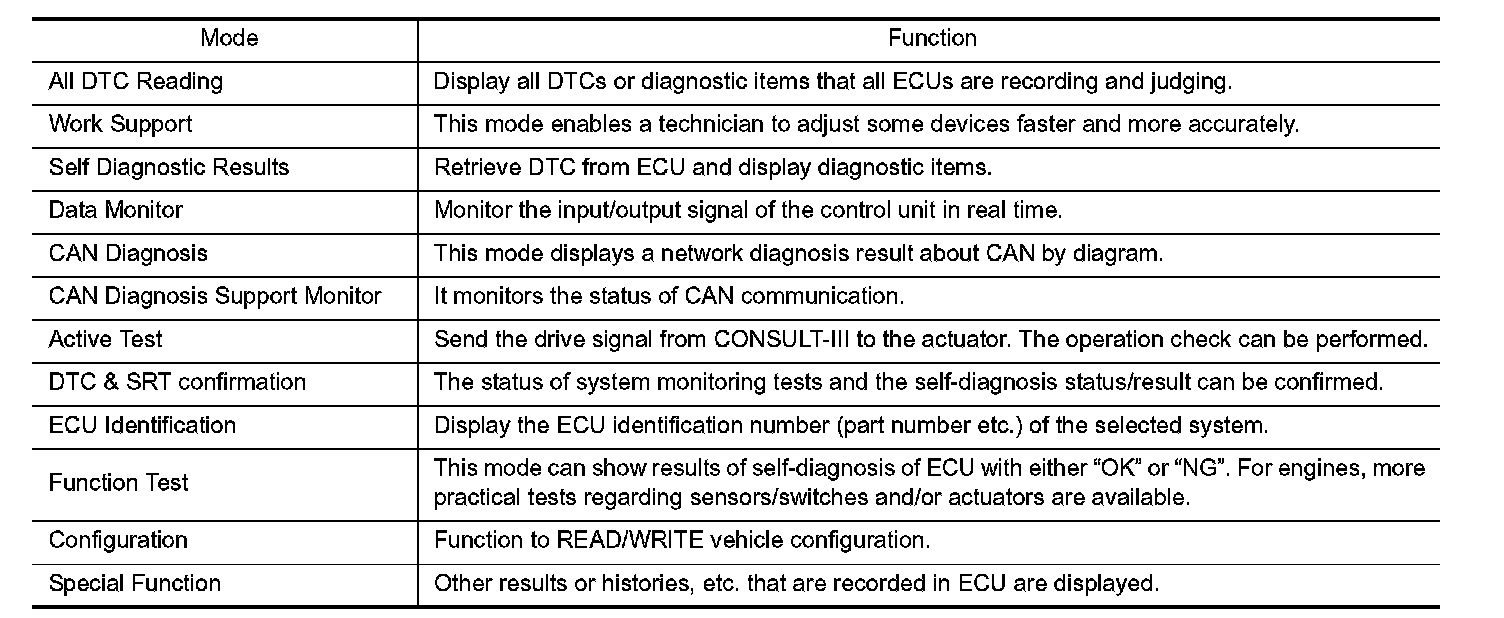

FUNCTION







SYSTEM APPLICATION
