Key Slot Indicator

KEY SLOT INDICATOR

Description

Blinks when Intelligent Key insertion is required.


Component Function Check


1. CHECK FUNCTION

1.Use CONSULT-III to perform BCM "Active Test" ("KEY SLOT ILLUMI").
2.Touch "ON" to check that it works normally.
Is the inspection result normal?
YES- Key slot is OK.
NO- .


Diagnosis Procedure


1. CHECK FUSE

1.Turn ignition switch OFF.
2.Check 10 A fuse, [No. 6, located in fuse block (J/B)].
Is the inspection result normal?
YES- GO TO 2.
NO- Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2. CHECK KEY SLOT POWER SUPPLY CIRCUIT

1.Disconnect key slot connector.

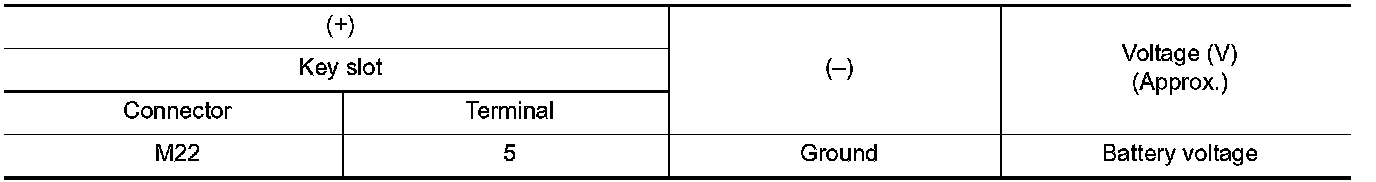

2.Check voltage between key slot harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK KEY SLOT CIRCUIT

1.Disconnect BCM connector.

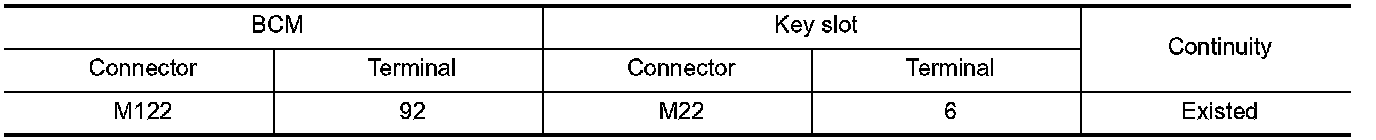

2.Check continuity between BCM harness connector and key slot harness connector.

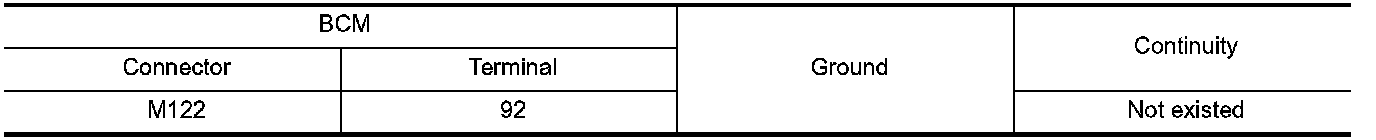

3.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace harness.

4. CHECK KEY SLOT

.
Is the inspection result normal?
YES- Replace BCM. Removal and Installation.
NO- Replace key slot. Removal and Installation.


Component Inspection


1. CHECK KEY SLOT INDICATOR

1.Turn ignition switch OFF.
2.Disconnect key slot connector.

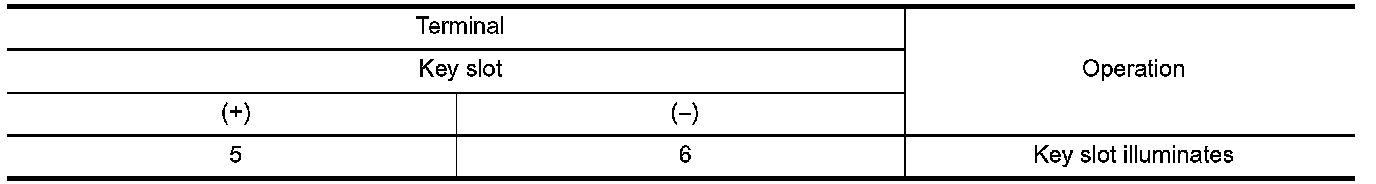

3.Connect battery power supply directly to key slot terminals and check the operation.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace key slot. Removal and Installation.
