Battery Power Supply Fuse No. 6




POWER SUPPLY ROUTING CIRCUIT

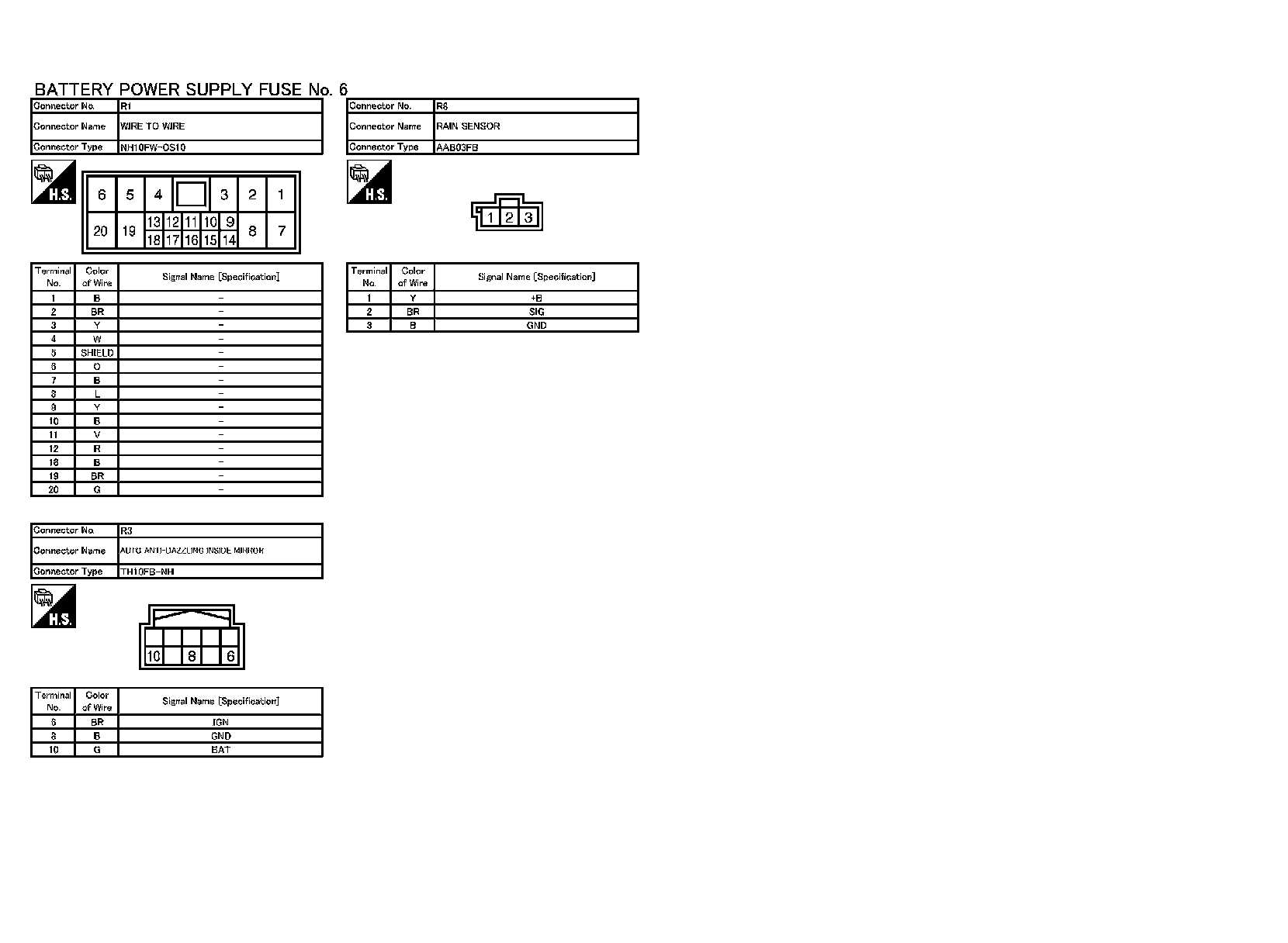

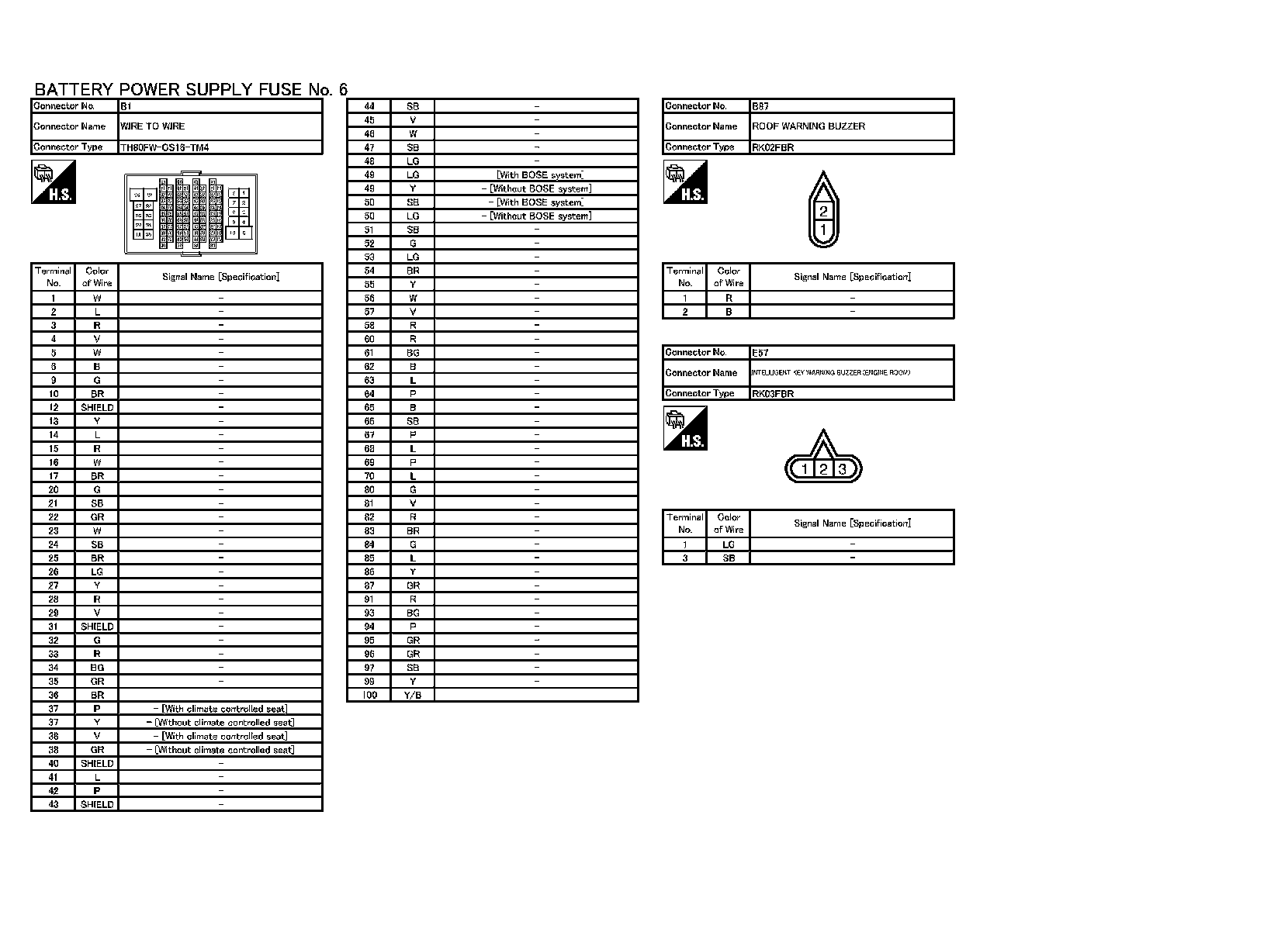

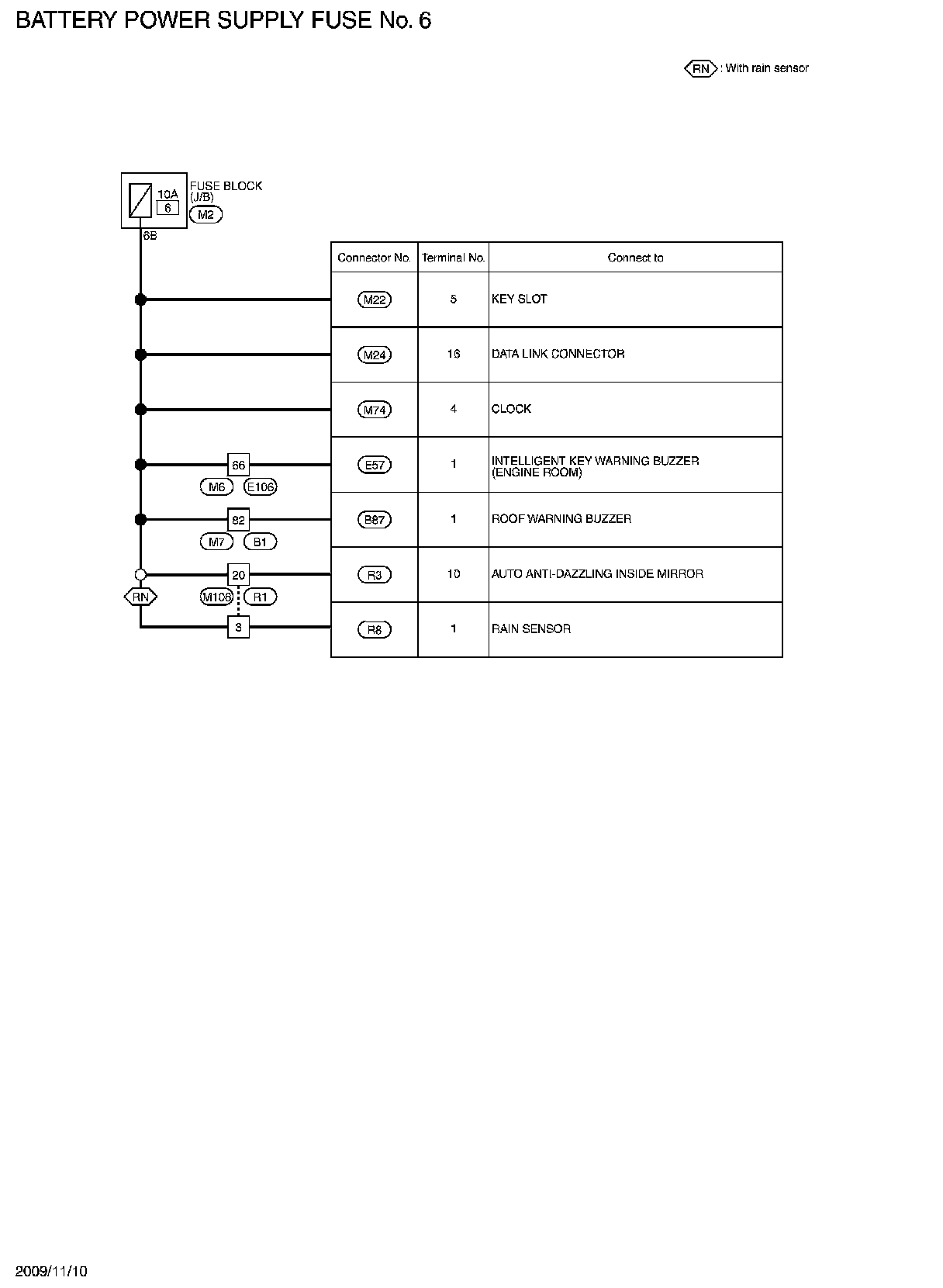

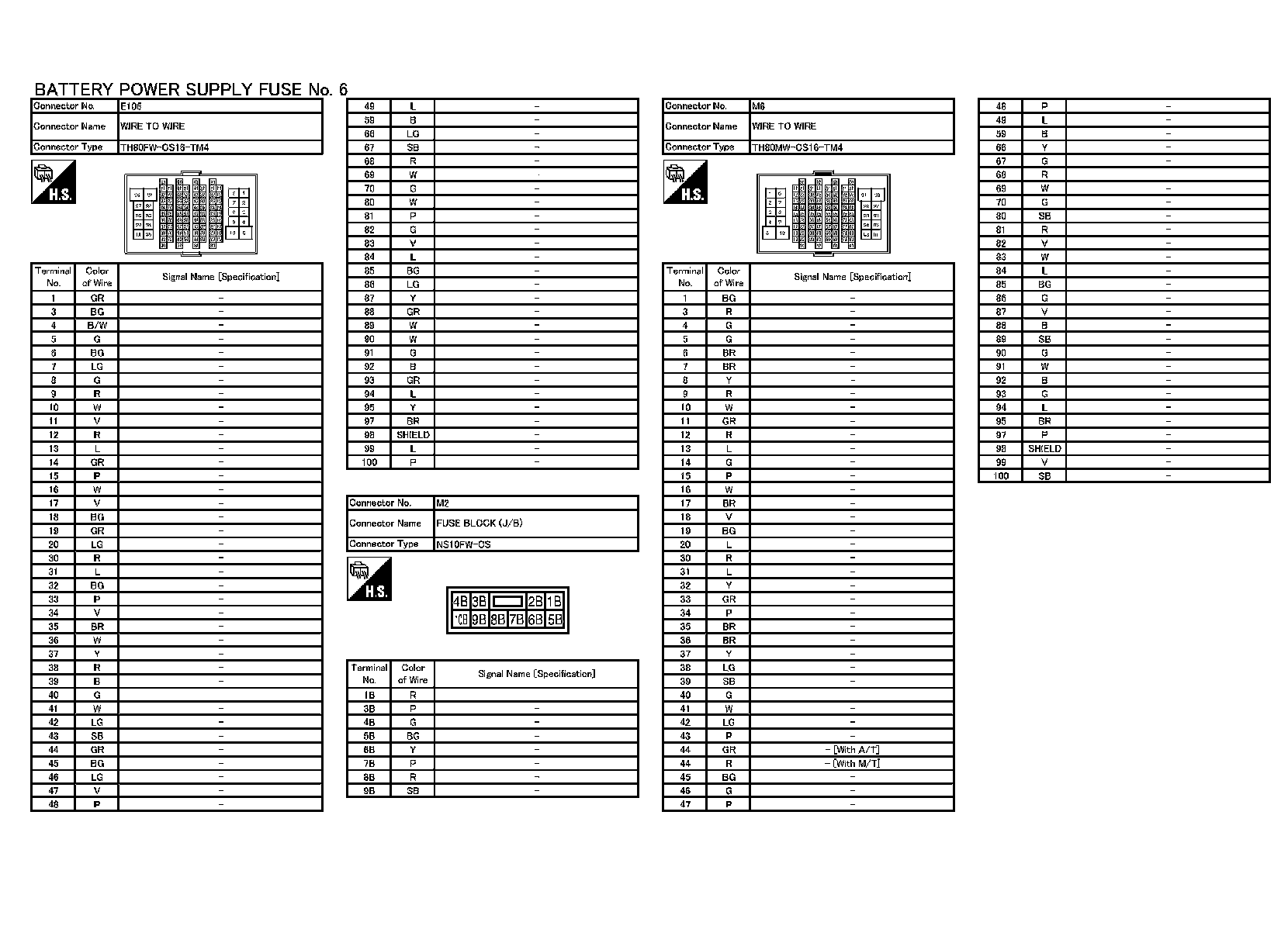

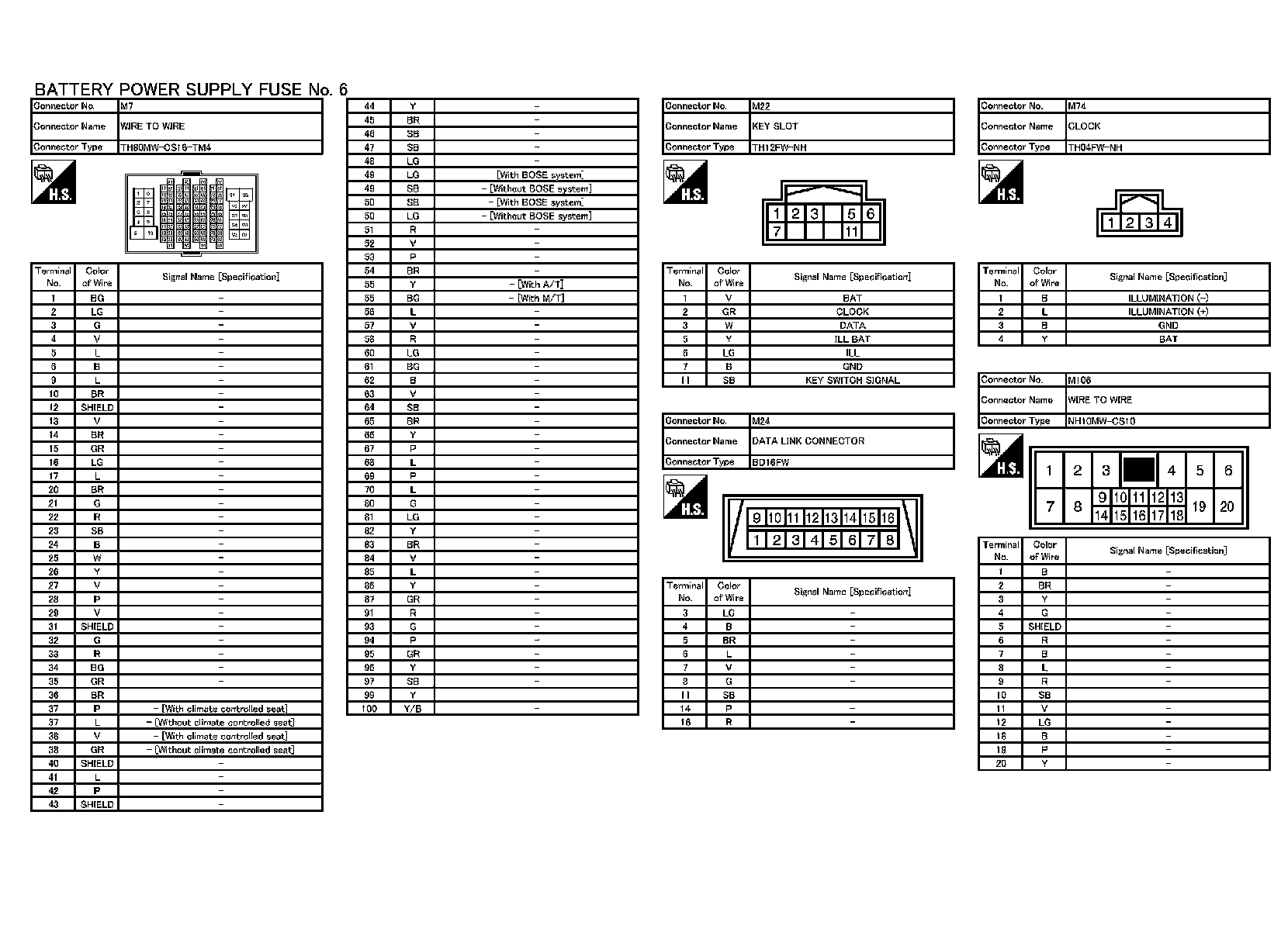

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 6
