Accessory Power Supply
Accessory Power Supply
POWER SUPPLY ROUTING CIRCUIT

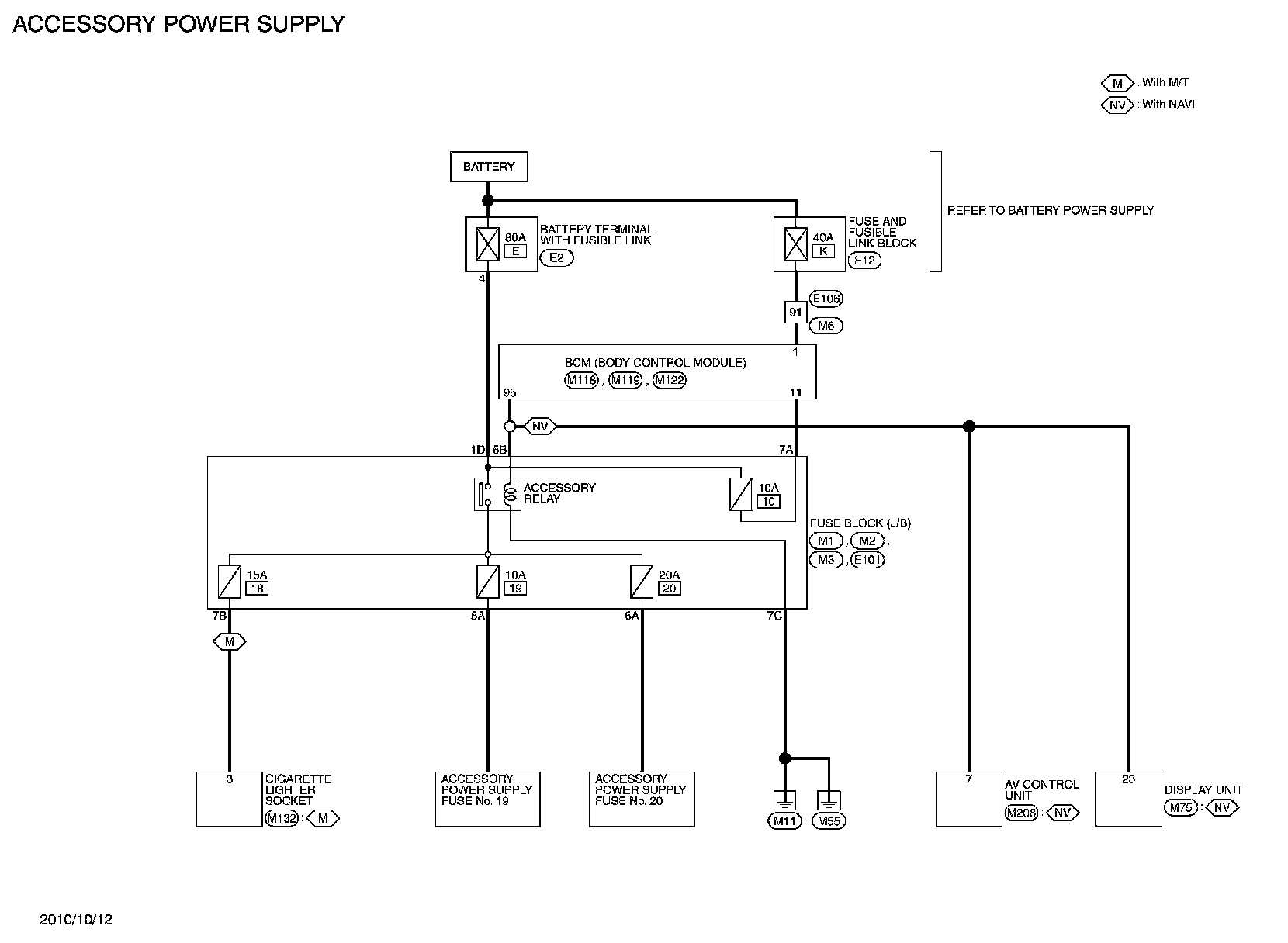

Wiring Diagram - ACCESSORY POWER SUPPLY
