Removal and Installation

HEATED SEAT SWITCH

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect from damage.
1.Remove the console body assembly. Removal and Installation (A/T models) or Removal and Installation (M/T models).

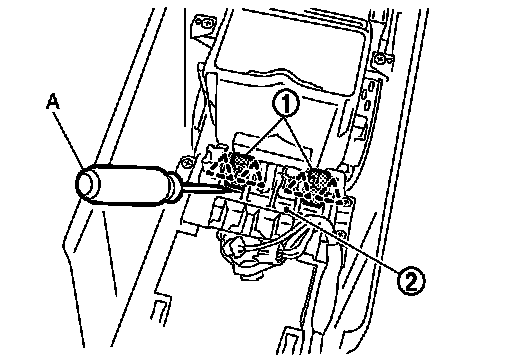

2.Remove heated seat switch (1) from switch bracket (2) with flat bladed screwdriver (A).





NOTE:
The same procedure is performed for passenger side.

INSTALLATION

Install in the reverse order of removal.
