Removal and Installation

POWER SEAT SWITCH

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

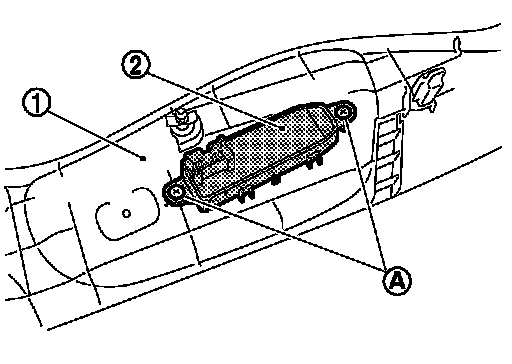

1.Remove seat cushion outer finisher (1). Removal and Installation.
2.Remove screws (A).
3.Remove power seat switch (2) from seat cushion outer finisher (1).

INSTALLATION

Install in reverse order of removal.

CAUTION:
Be sure to clump the harness to the right place.
